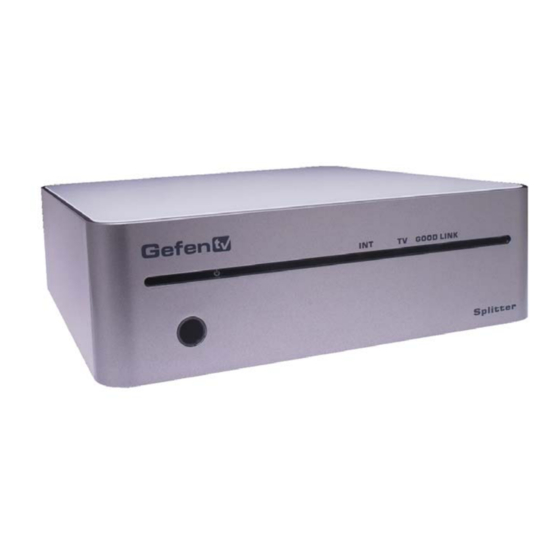

- Page 1 1:4 Splitter for HDMI 1.3 GTV-HDMI1.3-144 User Manual www.gefentv.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. 1:4 Splitter For HDMI 1.3 is a trademark of Gefen, LLC HDMI, the logo, and High-Defi...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting and Operating the GefenTV 1:4 Splitter for HDMI 1.3 Wiring Diagram EDID Management EDID Mode Selection External EDID Management Specifi cations Warranty... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the GefenTV 1:4 Splitter for HDMI 1.3. Your complete satisfaction is very important to us. GefenTV GefenTV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to en- sure you get the most from your hardware. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFENTV 1:4 SPLITTER FOR HDMI 1.3 • Display information (EDID) is sent from the display connected to HDMI output port 1 to the source. If there is no display connected to HDMI output port 1, the remaining HDMI output ports will be scanned in succession and use the fi... -
Page 6: Features
FEATURES HDMI 1.3 Features: • 225 MHz (up to 12 bit YUV 444 supported @ 1080p) • Deep Color • Color Space Conversion • Dolby TrueHD and DTS-HD Master Audio • Lip Sync Features: • Simultaneously displays a Hi-Def source on up to four (4) HDTV displays without signal loss •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS IR Sensor Not used. Power Indicator This LED will turn bright red once the locking power supply has been properly connected. Internal EDID Indicator This LED turns bright blue when the Internal EDID is being used. TV Indicator This LED turns bright green when the External EDID is being used. -
Page 9: Connecting And Operating The Gefentv 1:4 Splitter For Hdmi
Connect the included 5V DC locking power supply to the power receptacle. Connect the AC power cord to an available electrical outlet. Wiring Diagram for the GefenTV 1:4 Splitter for HDMI 1.3 HDMI CABLE Hi-Def Source Splitter for HDMI HD Display HD Display HD Display GTV-HDMI1.3-144 HD Display... -
Page 10: Edid Management
EDID MANAGEMENT EDID Mode Selection EXTERNAL MODE: See page 8 for details on using the External EDID. INTERNAL MODE: To use this mode, press the EDID button on the rear panel until the front- panel LED marked “Int” turns bright blue. This mode will use a preset EDID, from the factory, that is stored in the GefenTV 1:3 Splitter for HDMI 1.3. -
Page 11: External Edid Management
EDID MANAGEMENT External EDID Management To use the External EDID mode, press the EDID button on the rear panel until the front-panel LED marked “TV” turns bright green. Display Connections • The information contained in the Internal EDID is used as the default EDID until a display is connected to the Splitter and the Splitter is power-cycled. -
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ................1.2 Volts p-p Input DDC Signal ................. 5 Volts p-p (TTL) HDMI Input Connector ............Type A 19-pin female HDMI Output Connectors ..........(4) Type A 19-pin female Power Supply .................... -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 14 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
