MODEL: GDC9RWA / GDC12RBA / GDC12RWA
GDC12RCWA / GDC12RCBA / GDC14RBA
GDC14RWA / GDC14RCWA / GDC14RCBA
INSTRUCTIONS FOR USE

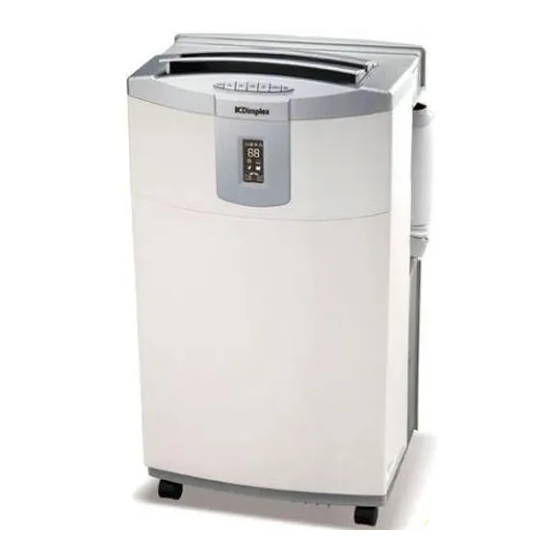

PORTABLE AIR CONDITIONER
VERY IMPORTANT！
Do not install or use your portable air conditioner unit
before carefully reading this instruction manual.
Please retain this manual for product warranty and
future reference
CAUTION！
1." DO NOT BLOCK VENTILATION "! Please make sure the inlet and outlet
ventilation is not blocked at all times.
2. Operate this unit on a horizontal surface to avoid water leakage.
3. Do not operate this unit in an explosive or corrosive atmosphere.
4. Operate this unit in an ambient temperature of 17~43 degrees Celsius when
switched to cooling and when switched to heating, the ambient operating
temperature should be 5~23 degrees Celsius.
5. Clean the air filter periodically to enjoy the most efficient cooling.
6. When the unit is turned off, please wait at least 3 minutes before restarting it.
This is to prevent the compressor from being damaged.
7. This unit needs to be plugged into a 10 Amp power point.
Please do not use any extension cords with this unit.
8. This unit is for indoor operation only.
9. Make sure the adjustable air vent is open, and also the exhaust pipe and drain pipe if
fitted are extended to the closest window before using.
10. When the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid hazard.
11. The batteries, from the remote control, must be removed from the appliance
before it is scrapped and must be disposed of safely.
12. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
Advertisement
Table of Contents
Related Manuals for Dimplex GDC9RWA
Summary of Contents for Dimplex GDC9RWA
-
Page 1: Instructions For Use
VERY IMPORTANT！ Do not install or use your portable air conditioner unit before carefully reading this instruction manual. MODEL: GDC9RWA / GDC12RBA / GDC12RWA Please retain this manual for product warranty and GDC12RCWA / GDC12RCBA / GDC14RBA future reference GDC14RWA / GDC14RCWA / GDC14RCBA CAUTION！... - Page 2 Important. CONTENTS The air conditioning unit must always be stored and 1 / Air control unit transported upright. 2 / 1-remote control unit In case of doubt we suggest to wait for at least 24 hours before you start the air-conditioning unit. 3/ Window kit CONGRATULATIONS ON YOUR SELECTION OF A QUALITY PORTABLE AIR CONDITIONER...
-
Page 3: Names Of The Parts
NAMES OF THE PARTS PUSH BUTTON SWITCHES & DESCRIPTION OF FUNCTION 1. Push button switch 2. Display screen 3. Adjustable air vent 4. Window kit adaptor 5. Exhaust tube 6. Drain hose ( cooling &heating model only) 1. POWER KEY Press to turn unit "ON"... - Page 4 5. L.E.D. DISPLAY cally after the set time is over. Indicates the current room temperature or the time setting. If it’s adjusted by the user the display will return to the pre-set temperature 8. SLEEP CONTROL When setting the "sleep comfort" mode please ensure that you automatically.
-
Page 5: Remote Control Function
REMOTE CONTROL FUNCTION INSTALLATION Install the portable air conditioner in a flat and spacious location where the air inlets and outlets will not be blocked. A minimum clearance of 40cm from a wall or other obstacles should be kept (as pictured below ). The appliance should not be used in the laundry. -
Page 6: Maintenance
To remove the air filter, please follow the arrow direction and push the filter lightly. Then take out the filter for cleaning. MAINTENANCE PLEASE DISCONNECT THE POWER CORD BEFORE. AIR FILTER POWER SUPPLY The air filter located on both sides of the unit can be removed, simply by (1) Confirm the correct power. -
Page 7: Exhaust Pipe And Drain Pipe
HELPFUL HINTS This unit is fitted with a special thermal cut off device. When selecting the refrigerating function, the unit should operate in room temperatures between 17-43℃, and when selecting the heating function the room temperature must be between 5-23℃. Please ensure the unit is not placed against objects which will obstruct air intake e.g. -
Page 8: Troubleshooting
To correct problems not mentioned in the table and/or if the recommended solutions fail to solve the problem, please contact an authorized service centre. Min. room size Please contact Glen Dimplex for your nearest authorized service agent: Dimensions (mm) 476W x 358D x 840H 476W x 358D x 840H Australia –... - Page 9 Dimensions (mm) 476W x 358D x 840H Net Weight 32.5KG If you have any issues with your unit, please contact Glen Dimplex for your nearest service agent. Proof of purchase is required at the time of service. Glen Dimplex Australasia Ltd...
