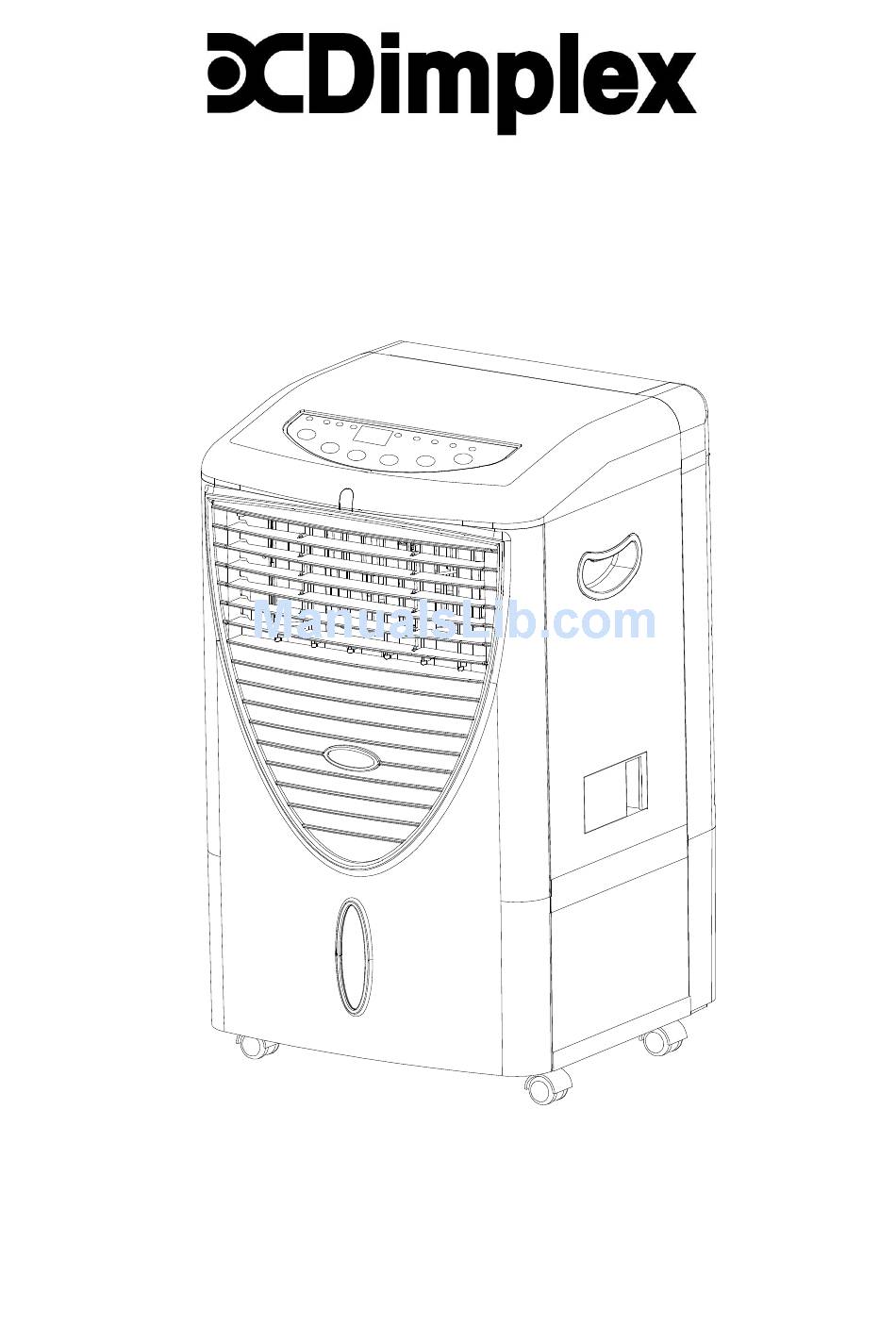

- Page 1 20L AIR COOLER MODEL: GDC-EC20RW / GDC-EC20RS INSTRUCTION MANUAL PLEASE READ CAREFULLY AND FOLLOW THE INSTRUCTION BEFORE USE...
-
Page 2: Table Of Contents
CONTENTS A. PRODUCT INTRODUCTION -----------------------------------------------------1 B. TECHNICAL PARAMETER -------------------------------------------------------1 C. CONTROL PANEL, LCD & CONSTRUCTION DIAGRAM ----------------2 D. SELECTION OF FUNCTIONS ---------------------------------------------------3 E. CLEAN AND MAINTENANCE ----------------------------------------------------4 F. SAFETY PRECAUTIONS ---------------------------------------------------------5 G. PACKING LIST -----------------------------------------------------------------------6 H. WARRANTY --------------------------------------------------------------------------7... -
Page 3: Product Introduction

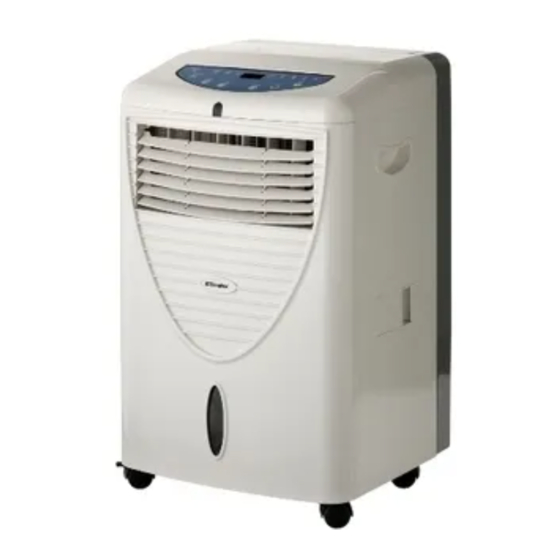

A. PRODUCT INTRODUCTION The GDC-EC20RW / GDC-EC20RS Air cooler are our latest design with microcomputer control system. It can lower outlet temperature, freshen the air with equipped anion, humidify the air through the principle of water evaporation and melting ice. LED panel makes it luxurious and easy to use. Also equipped with filter net and honeycomb pad to remove odor and dust. -
Page 4: Control Panel, Lcd & Construction Diagram
C. CONTROL PANEL, LED & CONSTRUCTION DIAGRAM ˜ Some with remote ¯ 1. CONTROL PANEL AND LED 2. CONSTRUCTION... -
Page 5: Selection Of Functions
D. SELECTION OF FUNCTIONS: 1. ON/OFF: Turns unit ON or OFF Press once to turn the unit on. Indicator lights will illuminate. Unit operates in default mid fan speed. Press the button again, unit will be turned off. 2. SWING: Horizontal swing of vertical louvers. •... -
Page 6: Clean And Maintenance
10. Remote control: The function of remote control is the same as the unit control panel except the timer deduction function. No obstacle is allowed between the unit and remote control. E. CLEAN AND MAINTENANCE After long time operation, the Filter and Honey Comb will be clogged with dust and dirt, which will greatly affect the unit’s performance. -
Page 7: Safety Precautions
5. Put the filter and Honey Comb to the original position and screw it to fix the position. F. SAFETY PRECAUTIONS: 1. Use the correct power supply (220-240V~ 50/60Hz). Plug into dedicated socket with minimum rating current of 5A. 2. After filling with water, do not tilt unit and avoid moving unit. Do not turn over the unit, otherwise accident may happen. -
Page 8: Packing List
6. Empty the water tank before moving the Air Cooler. 7. Before storage, please dry the water tank inside the unit and then take out and dry the filter and honeycomb pad in order to avoid stink caused by dampness. 8. -
Page 9: Warranty
Please retain your receipt as proof of purchase. Every request for guarantee service must be accompanied by proof of purchase. For any information on your Glen Dimplex product please call our Customer Care line on 1300 556 816. Be sure to attach your proof of purchase to this card and present with the appliance if replacement is required.
