Fitting the hand guard and loop

handle

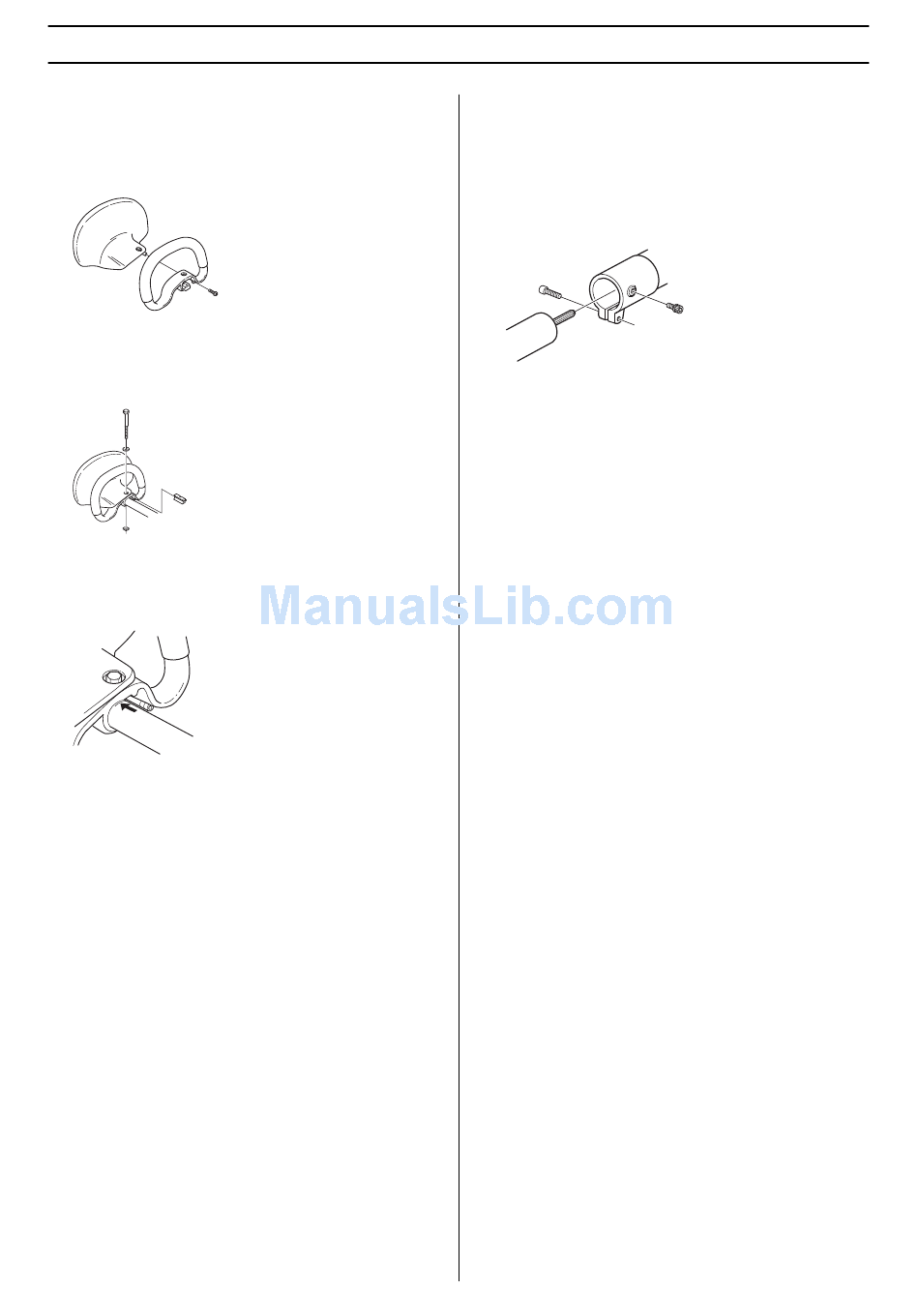

1 Assemble the hand guard and loop handle by screwing

them together. Take care to align the holes in both parts.

2 Slide the loop handle and hand guard onto the shaft.

3 Slide the spacer into the slot in the loop handle.

4 Fit the nut and screw. Do not overtighten.

5 Now make a ﬁnal adjustment to give yourself a

comfortable working position. Tighten the screw.

CAUTION! The loop handle and hand guard must not be

ﬁtted behind the arrow marked on the shaft.

12 –

English

ASSEMBLY

It is important that the hedge trimmer is laid on a ﬂat surface

when you ﬁt the cutting head. Otherwise the cutting head may

not be ﬁtted straight.

1 Fit the cutting head to the shaft. CAUTION! Make sure the

drive shaft inside the shaft engages with the recess in the

cutting head.

2 Tighten the lower screw ﬁrst, then the upper screw.
