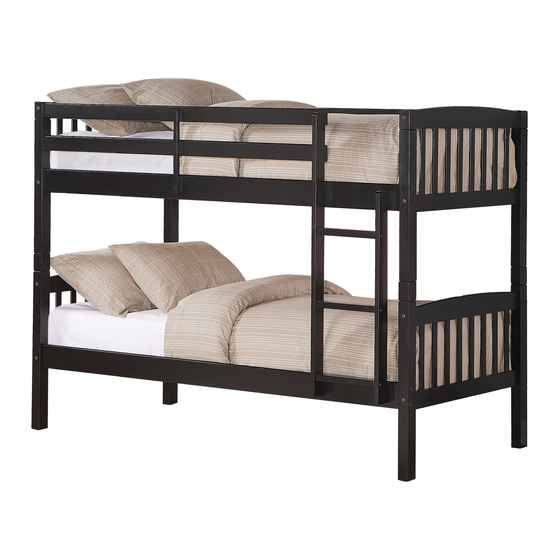

DA1026RW2 - White
DA1026RP2 -
DA1026RWN- Walnut
PRODUCT CODE:
(White) 030-040682-114
(Pine) 030-257777-110
(Walnut) 0-02563282-9
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION PLEASE READ AND
KEEP FOR FUTURE REFERENCE
DATE OF PURCHASE:
(White) 0-72000-96501-6
(Pine) 0-72000-96502-3
(Walnut) 0-65857-14462-8
e
NTIAL HOM
OWNER'S
MANUAL
Model No.:
Pine
NOTE:
UPC CODE:
e
Bunk Bed
RECEIPT OF PURCHASE:
ATTACH HERE
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
Customer Service department. We will replace
E-Mail: csr@jardcoent.com
TM
the part FREE of charge.
Tel #: 1-800-295-1980
Fax #: 514-353-7819
Advertisement
Table of Contents
Related Manuals for Essential Home DA1026RW2
Summary of Contents for Essential Home DA1026RW2
- Page 1 NTIAL HOM OWNER'S Bunk Bed MANUAL Model No.: DA1026RW2 - White DA1026RP2 - Pine DA1026RWN- Walnut PRODUCT CODE: (White) 030-040682-114 (Pine) 030-257777-110 (Walnut) 0-02563282-9 NOTE: RECEIPT OF PURCHASE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION PLEASE READ AND KEEP FOR FUTURE REFERENCE...
- Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.
- Page 3 NOTES READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN INJURY. CAUTION: ADULT ASSEMBLY REQUIRED MAKE SURE ALL PARTS ARE INCLUDED.
-
Page 4: Hardware & Parts List
BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT HARDWARE LIST 6.5mm x 48mm 1/4" x 85mm WOOD JOINT CONNECTOR (4mm HEX HEAD) JOINT CONNECTOR (4mm HEX HEAD) 12 PCS 16 PCS 6.5mm x 100mm 4mm x 35mm WOOD JOINT CONNECTOR (4mm HEX HEAD) - Page 5 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT PARTS LIST BOTTOM POST BOTTOM POST HEADBOARD TOP CROSS 2 PCS 2 PCS 4 PCS...
-
Page 6: Parts List
BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT PARTS LIST BOTTOM SIDE RAIL (WITH 2 HOLES) HEADBOARD BOTTOM CROSS TOP SIDE RAIL (WITH 3 HOLES) 1 PC 4 PCS 1 PC TOP SIDE RAIL (WITH 1 HOLE) SLAT BOTTOM SIDE RAIL (WITH NO HOLE) - Page 7 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT without label 8 PCS 4 PCS 4 PCS STEP 1 One of the headboard top cross (F) has a label on it, do not use it in this step. Insert stoppers (8) and headboard slats (S) into the holes of the headboard bottom cross (G) and push down until firmly in place.
- Page 8 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT with label 8 PCS 4 PCS 4 PCS STEP 2 Use the headboard top cross with label (F) in this step. Insert stoppers (8) and headboard slats (S) into the holes of the headboard bottom cross (G) and push down until firmly in place.
- Page 9 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT 16 PCS 8 PCS 8 PCS STEP 3 Insert stoppers (8) and headboard slats (S) into each hole in the headboard bottom cross (G) and push them down until firmly in place. Slide headboard top cross (F) onto headboard slats (S). Insert wood dowels (7) into ends of top cross (F) and bottom cross (G).
- Page 10 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT Holes STEP 4 Attach the two headboards with the bottom posts (D and E) to the bottom side rails (I and K) by the joint connectors (1) and barrel nuts (9) as shown. This is the lower bunk.
- Page 11 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT 4 PCS 4 PCS 8 PCS 8 PCS STEP 5 Insert a wood dowel (7) into each end of the long guardrails (M). Attach the two long guardrails (M) and the two top side rails (H and J) to the top posts (A and B) and (A and C) as shown.
- Page 12 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT One per side (L): slats:13 pcs for the lower bunk 13 pcs for the upper bunk 52 PCS STEP 6 Attach a slat (L) onto the bottom side rails (I and K) of the bottom bunk so that it touches the corner posts (as close to the headboard as possible) with flat head wood screws (4).
- Page 13 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT STEP 7 Place four wood dowels (6) into the holes in the bottom posts (D and E). With the help of another person, stack the top bunk onto the bottom bunk.
- Page 14 Footboard WOOD SCREWS BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT STEP 8 Secure the upper bunk to the lower bunk by screwing the screws (4) into the holes in the top and bottom posts (A, B, C, D & E) as shown.
- Page 15 Headboar BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT Slats are not shown in illustration for clarity STEP 9 Attach the ladder to the short guardrails (N), the top side rail (H) and bottom side rail (I) with the wood joint connectors (2) as shown.
-
Page 16: Converting Bunk Bed Into Two Beds
Footboard BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT Instructions for converting the bunk bed into two single beds To be used as the footboard To be used as for single bed the footboard for single bed To be used as... - Page 17 BUNK BED DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT DO NOT ALLOW HORSEPLAY ON DO NOT ALLOW CHILDREN OR UNDER THE BED AND UNDER 6 YEARS OF AGE PROHIBIT JUMPING ON THE BED. TO USE THE UPPER BUNK. BED IS DESIGNED FOR...
-
Page 18: Customer Service
MODEL #: DA1026RP2 PINE / DA1026RW2 WHITE / DA1026RWN WALNUT Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: csr@jardcoent.com...
