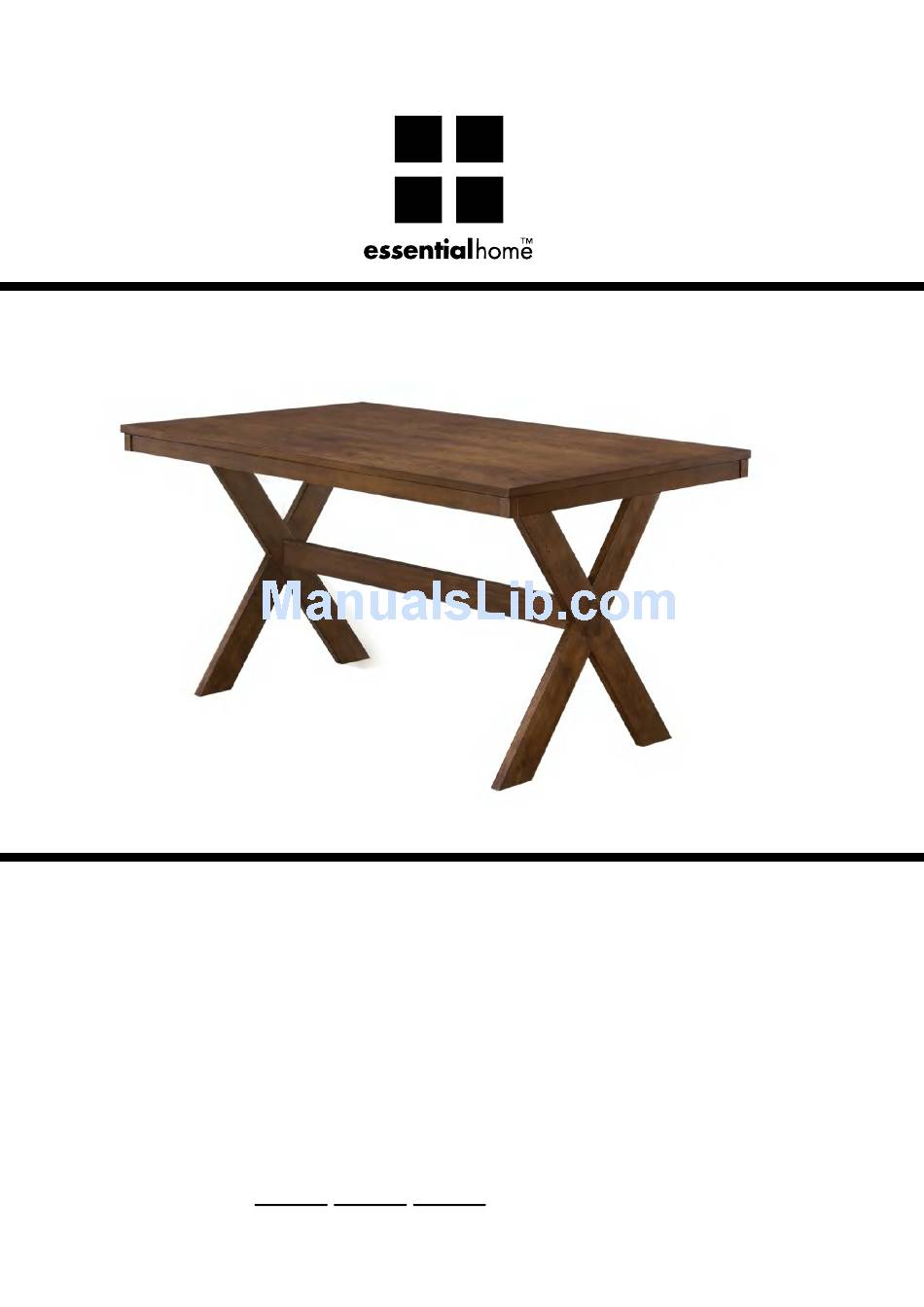

- Page 1 OWNER’S MANUAL KENDALL DINING TABLE CAUTION: Read owner's manual completely before assembly and use. Product code: 0-08612936-8 UPC code: 729437125093 Date of purchase:...
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T C A P A C I T Y 1. Table-maximum weight load per table is 350 pounds. G E N E R A L I N F O R M AT I O N &...
- Page 3 P A R T S L I S T A. Table Top (not replaceable) B. Table Leg (not replaceable) C. Connecter (not replaceable) QTY: 1 pc QTY: 2 pcs QTY: 1 pc D. Wood Block QTY: 2 pcs...
- Page 4 H A R D W A R E L I S T 1. Wood Dowel 2. Spring Washer 3. Flat Washer QTY: 2 pcs QTY: 8 pcs QTY: 8 pcs 4. Bolt 5. Bolt 6. Metal Bullet Dia 1/4 x 2-1/2 inch L Dia 1/4 x 2 inch L 9 x 20 mm QTY: 4 pcs...
- Page 5 A S S E M B LY I N S T R U C T I O N S Diagram #1 Step 1 1. Insert Wood Dowel (1) into the two ends of Connecter (C) as above shown. Diagram #2 Step 2 2.
- Page 6 A S S E M B LY I N S T R U C T I O N S Diagram #3 3 2 5 Step 3 3. Place the Table Top (A) upside down on a non-abrasive surface such as carpet. Attach the assembled unit from Step2 to the Table top (A) using Bolts (5), Flat Washers (3) and Spring Washers (2).
- Page 7 A S S E M B LY I N S T R U C T I O N S Diagram #4 Step 4 4. Attach Wood Block (D) to the assembled unit from Step 3 as shown. Attach the other Wood Block (D) following same process.
- Page 8 Please refer to part numbers when reordering For questions or comments about product: Email: css@yingfu.biz Made in / Hecho en VIETNAM. Distributed by Kmart Corporation, Hoffman Estates, IL 60179 SHOP kmart.com...
