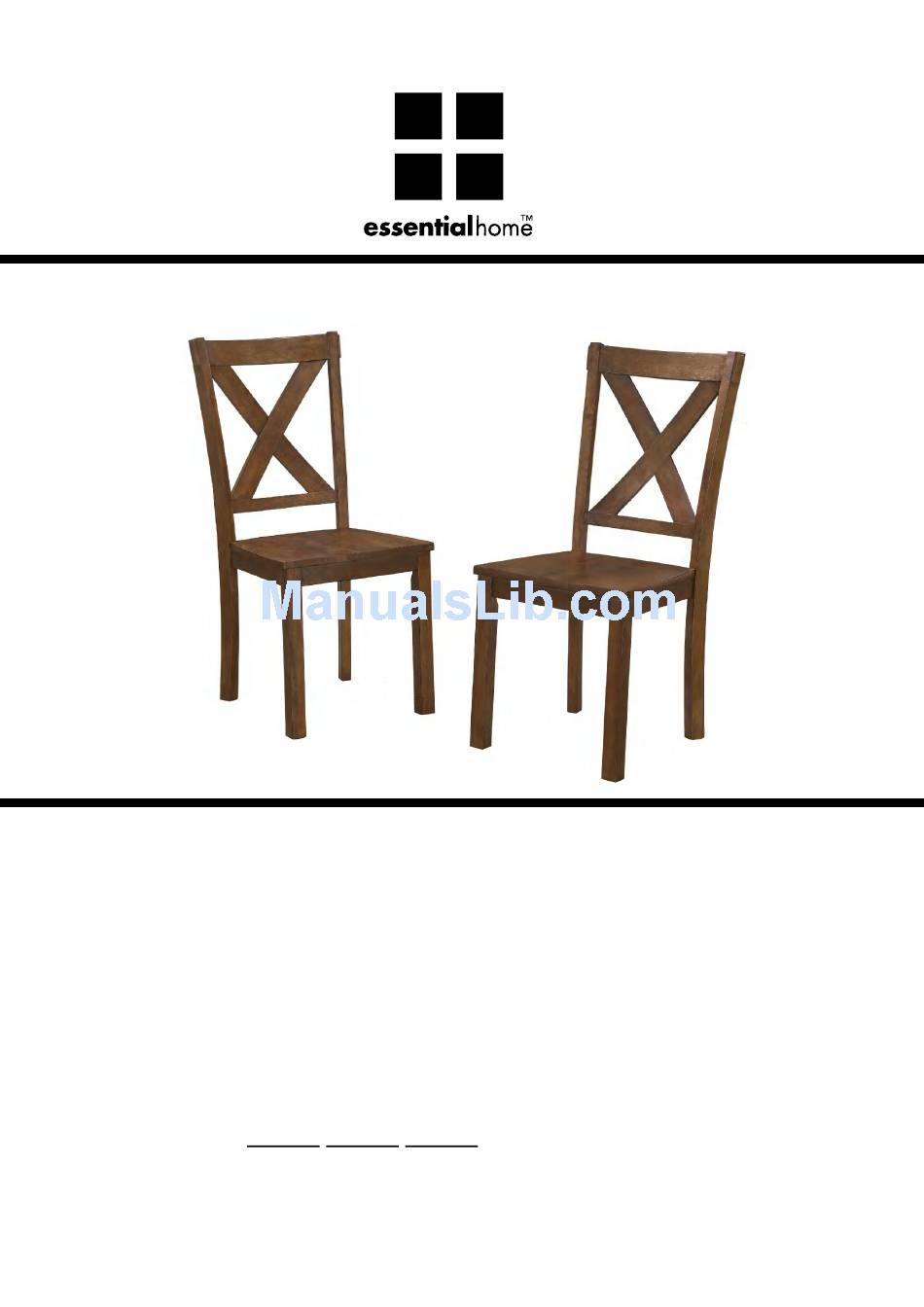

- Page 1 OWNER’S MANUAL KENDALL DINING CHAIRS Caution: Read owner's manual completely before assembly and use. Product code: 0-08612933-5 UPC code: 729437125109 Date of purchase:...
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T C A P A C I T Y 1. Chair-maximum load weight per chair is 300 pounds. G E N E R A L I N F O R M AT I O N &...
- Page 3 P A R T S L I S T A. Chair Back B. Seat Frame C. Chair Seat QTY: 2 pcs QTY: 2 pcs QTY: 2 pcs D. Chair Leg QTY: 4 pcs...
- Page 4 H A R D W A R E L I S T 1. Flat Washer 2. Spring Washer 3. Wood Screw QTY: 20 pcs QTY: 20 pcs QTY: 8 pcs 4. Long Bolt 5. Medium Bolt 6. Short Bolt Dia 1/4 x 3 inch L Dia 1/4 x 2-1/2 inch L Dia 1/4 x 1-1/2 inch L QTY: 8 pcs...
- Page 5 A S S E M B L Y I N S T R U C T I O N S Diagram #1 Step 1 1. Attach Seat Frame (B) to Chair Back (A) using Short Bolt (6), Spring Washer (2) and Flat Washer (1) as shown in inset (a);...
- Page 6 A S S E M B L Y I N S T R U C T I O N S Diagram #2 Step 2 2. Attach Front Legs (D) to the assembled unit from Step 1, using Medium bolt (5), Spring Washer (2) and Flat Washer (1) as shown in inset (a).
- Page 7 A S S E M B L Y I N S T R U C T I O N S Diagram #3 Step 3 4. Place Chair Seat (C) upside down on a non-abrasive table surface. The rear (tapered end) on the Seat Frame (B) should be near the table edge. Hint: Protect the non-abrasive table surface and Chair Seat (C) by laying a towel in-between the chair seat and table.
- Page 8 Please refer to part numbers when reordering For questions or comments about product: Email: css@yingfu.biz Made in / Hecho en VIETNAM. Distributed by Kmart Corporation, Hoffman Estates, IL 60179 SHOP kmart.com...
