JWM990

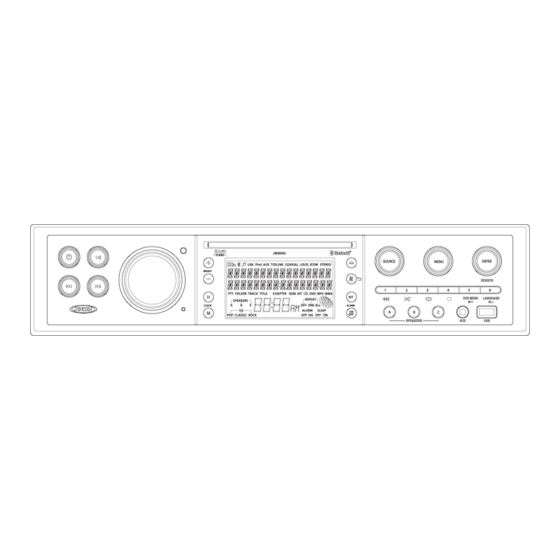

MOBILE AUDIO SYSTEM
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JWM990 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jensen JWM990

  • Page 1 JWM990 MOBILE AUDIO SYSTEM Installation and Operation Manual...
  • Page 2: Table Of Contents

    JWM990 CONTENTS Copyrights and Trademarks Introduction ..........................1 All related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved. Disc Notes ..........................2 Installation ..........................3 “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to Wiring ............................
  • Page 3: Introduction

    Thank You! The front of this unit should only be cleaned with a slightly damp cloth. Do not use cleansers. Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s  Use Recommended Accessories.
  • Page 4: Disc Notes

    JWM990 DISC NOTES Depending on the recording status, conditions of the disc, and the equipment used for recording, some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please adhere to the following recommendations:  Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.
  • Page 5: Installation

    16 – 18 gauge speaker wire  Four M3x20mm (3/32 x 0.75”) screws The included mounting feet allow the JWM990 to sit in an entertainment center if you prefer not Disconnecting the Battery to use the wall mounting method. To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation.
  • Page 6: Wiring

    JWM990 WIRING WARNING: Wiring harness comes with stripped and tinned leads to aid in the installation process. Any unused speaker wires must have their exposed ends cut off or The wiring diagram depicts all the wiring connections required for proper operation of the unit.
  • Page 7: Power

    PRESET VOL:(1/40-40/40): Select an automatic turn-on volume.  or MENU button repeatedly. RESET <ENTER>: Press the ENTER button to return the JWM990 to factory default set Once the desired menu item appears on the display, adjust that option by rotating the up values.
  • Page 8: Clock Setup

    OFF, 15, 30, 45 or 60 minutes. The “ON” or “OFF” under the “SLEEP” at the right You can connect a USB device directly to USB interface (31) on the front of the JWM990 for bottom corner will illuminate correspondingly.
  • Page 9 JWM990 Speaker Output The three speaker output buttons (A SPEAKER (27), B SPEAKER (28) and C SPEAKER (29)) control speaker output from the radio. Press any of the three buttons to turn the corresponding speaker sets on or off. SPK A, SPK B or SPK C will appear on the display.
  • Page 10: Tuner Operation

    JWM990 TUNER OPERATION To stop this function before the automatic storing is complete, press AS/PS again. Preset Scan Select a band. Press AS/PS button to scan stations stored in the current band. The unit will pause for 10 seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached.
  • Page 11: Weather Band Operation

    JWM990 WEATHER BAND OPERATION How will I know I am tuned to the weather band? When you select the weather band, LCD will display the current channel frequency. Press the |<< or >>| buttons (13, 14) to tune to each of the seven channels until you find the weather band station broadcasting in your area.
  • Page 12: Disc Operation

    JWM990 DISC OPERATION Press the || button on the control panel or remote control (17) to end fast forward or reverse and resume normal playback Intro Scan (INT) Press the 1 INT button (21) during disc play to play the first 10 seconds of each track on the current disc.
  • Page 13: Inserting A Disc

    JWM990 CD Playback Information Fast Forward/Reverse The following information is displayed at the top of the screen during CD playback: Press and hold the >>| or |<< buttons or press the >> or << buttons on the remote control (16) once for FORWARD X 2.
  • Page 14: Playback Information

    JWM990 Playback Information During DVD playback, press the button (26) on the remote control to display playback information on the screen, including the media playing and current playback time. Press the button additional times to display additional information, as indicated below.
  • Page 15: Mp3/Usb Operation

    JWM990 MP3/USB OPERATION MP3 Monitor Display After loading an MP3 disc or USB device, the following screen will appear on your output monitor. If the user connects a USB mass storage device, the radio automatically powers on, if necessary, and switches to digital file playback mode and selects that physical media. Changing modes or turning off the radio pauses playback.
  • Page 16: Programmed Playback

    JWM990 Random Shuffle (RDM) Press the 2 RDM button (22) during song playback to play all files in random, shuffled order. Press 2 RDM again to stop random play. Fast Forward/Reverse Press and hold the >>| or |<< buttons or press the >> or << buttons on the remote control (16) once for FORWARD X 2.
  • Page 17: Ipod ® Operation

    JWM990 iPod OPERATION Turning the iPod On/Off ® The iPod power turns on automatically when an iPod is connected to the USB connector, as This unit is equipped with an iPod® ready function that will allow you to control your iPod (if long as the vehicle ignition is turned on.
  • Page 18: Bluetooth Operation

    JWM990. (12) to turn the Bluetooth function On or Off. The following menu options are available when the Make sure the device is on and ready to receive a signal from the JWM990. With the unit is in Bluetooth mode.
  • Page 19 JWM990 If you change to another mode, the mobile device audio will pause. Press the SOURCE button (10) to return to Bluetooth mode and resume mobile device audio playback. NOTE: If a Bluetooth device is disconnected due to the power being turned off or if the device is out of range, the unit will automatically search for the matching Bluetooth mobile device when the power is restored.
  • Page 20: Remote Control Operation

    JWM990 REMOTE CONTROL OPERATION DESCRIPTION TUNER WEATHERBAND BLUETOOTH CD/MP3/USB Power Turn radio on/standby Turn radio on/standby Turn radio on/standby Turn radio on/standby Turn radio on/standby mode. mode. mode. mode. mode. VOL +/- Adjust volume up/down. Adjust volume up/down. Adjust volume up/down.
  • Page 21 JWM990 TITLE Press to view title menu. Use directional arrows and play button to play selected title. May not be supported by all discs. Repeat track. Repeat chapter. SOURCE Select source for Select source for Select source for Select source for Select source for playback.
  • Page 22: Dvd Setup Menu

    JWM990 DVD SETUP MENU Language Setup The Language Setup menu controls the following features: Press the (setup) button (10) on the remote control to access the SETUP menu and adjust system settings for the following categories:  System Setup ...
  • Page 23: Video Setup

    JWM990 Video Setup Digital Setup The Video Setup menu controls the following features: The Digital Setup menu controls the following features: Brightness: Adjust the brightness of the screen from the following levels: 12, 10, 8, 6, 4, 2 or 0.
  • Page 24: Care And Maintenance

    JWM990 CARE AND MAINTENANCE TROUBLESHOOTING  Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Symptom Solution  Keep the product away from dust and dirt, which can cause premature wear of parts.
  • Page 25: Specifications

    JWM990 SPECIFICATIONS FCC Notes FM Tuner WARNING! Changes or modifications to this unit not expressly approved by the party Frequency Coverage (USA) ......... 87.5 to 107.9 MHz responsible for compliance could void the user’s authority to operate the equipment.
  • Page 26 ASA Electronics Corporation www.asaelectronics.com www.jensenrvdirect.com ©2014 ASA Electronics Corporation...
