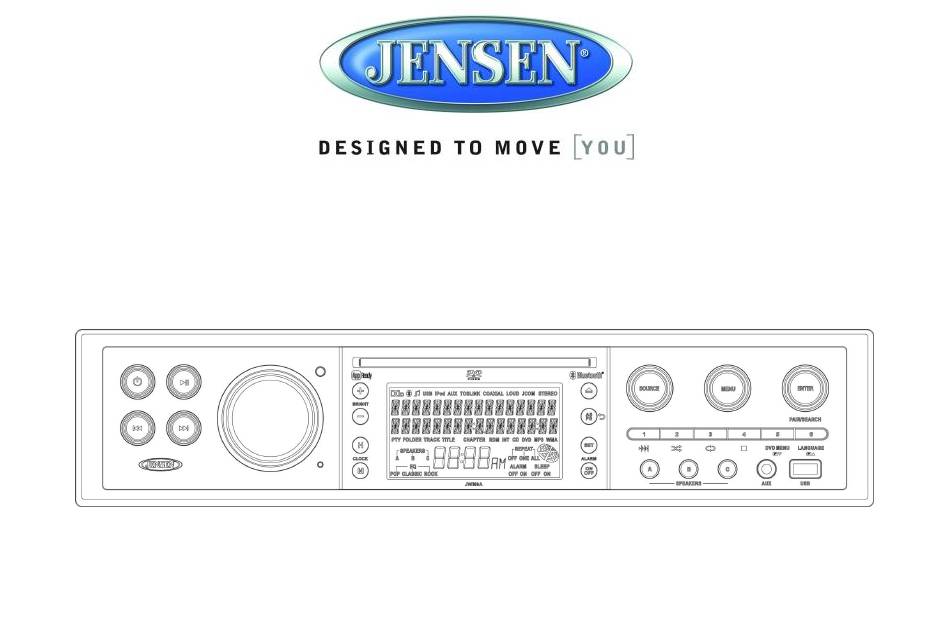

- Page 1 JWM9A MOBILE AUDIO SYSTEM Installation and Operation Manual...
-
Page 2: Table Of Contents
JWM9A CONTENTS Introduction ..........................1 Copyrights and Trademarks Disc Notes ..........................2 All related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved. Installation ..........................3 Wiring ............................4 ©Copyright 2016 ASA Electronics, LLC PATENT PENDING Basic Operation ........................ -
Page 3: Introduction
Avoid Cleaning Products. Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s The front of this unit should only be cleaned with a slightly damp cloth. Do not use manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to cleansers. -
Page 4: Disc Notes
JWM9A DISC NOTES Be sure to use only round CDs for this unit and do not use any special shape CDs. Use of Depending on the recording status, conditions of the disc, and the equipment used for recording, special shape CDs may cause the unit to malfunction. ... - Page 5 JWM9A FCC Notes Changes or modifications not expressly approved by the party respo nsible for compliance could void the user's authority to operate the e quipment NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY R ADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MO DIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COU LD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMEN NOTE: This equipment has been tested and found to comply with the...
-
Page 6: Installation
INSTALLATION It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen JWM9A installed by a reputable RV dealership Tools and Supplies You will need these tools and supplies to install your JWM9A: ... -
Page 7: Wiring
JWM9A WIRING WARNING: Wiring harness comes with stripped and tinned leads to aid in the The wiring diagram depicts all the wiring connections required for proper operation of the unit. installation process. Any unused speaker wires must have their exposed ends cut off or insulated individually. -
Page 8: Basic Operation
JWM9A BASIC OPERATION Press the ENTER button to confirm your selection and exit audio menu. The unit will automatically exit the audio menu after 5 seconds of inactivity. The following audio menu items can be adjusted: BASS: Adjust the Bass level range from “-7” to “+7”. ... - Page 9 JWM9A Auxiliary Input Function NOTE: LCD panels may take longer to respond when subjected to cold temperatures for When a portable audio device is connected to the unit, press the SOURCE button (10) an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly.
- Page 10 Otherwise, Connect HDMI cable to JENSEN TV with ARC function and JWM9A head unit. If the set switch to USB mode to play up and operation is correct, the TV audio will come out from the speaker of the head unit the device.
-
Page 11: Tuner Operation
JWM9A TUNER OPERATION Automatically Store / Preset Scan (AS/PS) Automatically Store Select an AM or FM band. Press and hold the AS/PS button (8) for more than 3 seconds and the unit will automatically scan for and store 12 or 18 strongest stations for AM or FM respectively. To stop this function before the automatic storing is complete, press AS/PS again. -
Page 12: Weather Band Operation
JWM9A WEATHER BAND OPERATION How will I know I am tuned to the weather band? When you select the weather band, LCD will display the current channel frequency. Press the |<< or >>| buttons (13, 14) to tune to each of the seven channels until you find the weather band station broadcasting in your area. -
Page 13: Disc Operation
JWM9A DISC OPERATION Intro Scan (INT) Press the 1 INT button (21) during disc play to play the first 10 seconds of each track on the current disc. Press 1 INT again to end the scan and play the selected track. Repeat (RPT) Press the 3 RPT button (23) or RPT buttons on the remote control (20) to access the repeat function. - Page 14 JWM9A CD Playback Information Fast Forward/Reverse The following information is displayed at the top of the screen during CD playback: Press and hold the >>| button (14) or |<< buttons (13) or press the >> or << buttons on the remote control (16) once for FORWARD X 2.
- Page 15 JWM9A Playback Information During DVD playback, press the button (26) on the remote control to display playback information on the screen, including the media playing and current playback time. Press the button (26) additional times to display additional information, as indicated below. DVD Playback Information The following information is displayed at the top of the screen during DVD playback: TT 5/8 –...
-
Page 16: Mp3/Usb Operation
JWM9A MP3/USB OPERATION MP3 Monitor Display After loading an MP3 disc or USB device, the following screen will appear on your output monitor. If the user connects a USB mass storage device, the radio automatically powers on, if necessary, and switches to digital file playback mode and selects that physical media. Changing modes or turning off the radio pauses playback. - Page 17 JWM9A Random Shuffle (RDM) Press the 2 RDM button (22) during song playback to play all files in random, shuffled order. Press 2 RDM again to stop random play. Fast Forward/Reverse Press and hold the >>| or |<< buttons or press the >> or << buttons on the remote control (16) once for FORWARD X 2.
-
Page 18: Bluetooth Operation
JWM9A BLUETOOTH OPERATION Bluetooth Pair <ENTER>: Press and hold the ENTER buttons to start pairing with a Bluetooth enabled device. Bluetooth Device: Press the ENTER button to view a list of previously paired mobile The JWM9A includes built-in Bluetooth technology that allows you to connect this head unit to devices models. -
Page 19: App Operation
Bluetooth mobile device when the power is restored. your JENSEN stereo right from your phone or tablet by transforming your mobile device into a functional stereo remote control! -
Page 20: Remote Control Operation
JWM9A REMOTE CONTROL OPERATION DESCRIPTION TUNER WEATHERBAND BLUETOOTH CD/MP3/USB Power Turn radio on/standby Turn radio on/standby Turn radio on/standby Turn radio on/standby Turn radio on/standby mode. mode. mode. mode. mode. VOL +/- Adjust volume up/down. Adjust volume up/down. Adjust volume up/down. Adjust volume up/down. - Page 21 JWM9A TITLE Press to view title menu. Use directional arrows and play button to play selected title. May not be supported by all discs. Repeat track. Repeat chapter. SOURCE Select source for Select source for Select source for Select source for Select source for playback.
-
Page 22: Dvd Setup Menu
JWM9A DVD SETUP MENU Language Setup The Language Setup menu controls the following features: Press the (setup) button (10) on the remote control to access the SETUP menu and adjust system settings for the following categories: System Setup Language Setup ... - Page 23 JWM9A Video Setup Digital Setup The Video Setup menu controls the following features: The Digital Setup menu controls the following features: Brightness: Adjust the brightness of the screen from the following levels: 12, 10, 8, 6, 4, 2 OP Mode: Select LINE OUT or RF REMOD.
-
Page 24: Care And Maintenance
JWM9A CARE AND MAINTENANCE TROUBLESHOOTING Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Symptom Solution Keep the product away from dust and dirt, which can cause premature wear of parts. Radio will not turn ON or No Try the reset button. -
Page 25: Specifications
JWM9A SPECIFICATIONS FCC Notes FM Tuner Frequency Coverage (USA) ......... 87.5 to 107.9 MHz WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 26 ASA Electronics Corporation www.asaelectronics.com www.jensenrvdirect.com ©2016 ASA Electronics Corporation...
