Installation of Indoor, Outdoor Unit

Read completely, then follow step by step.

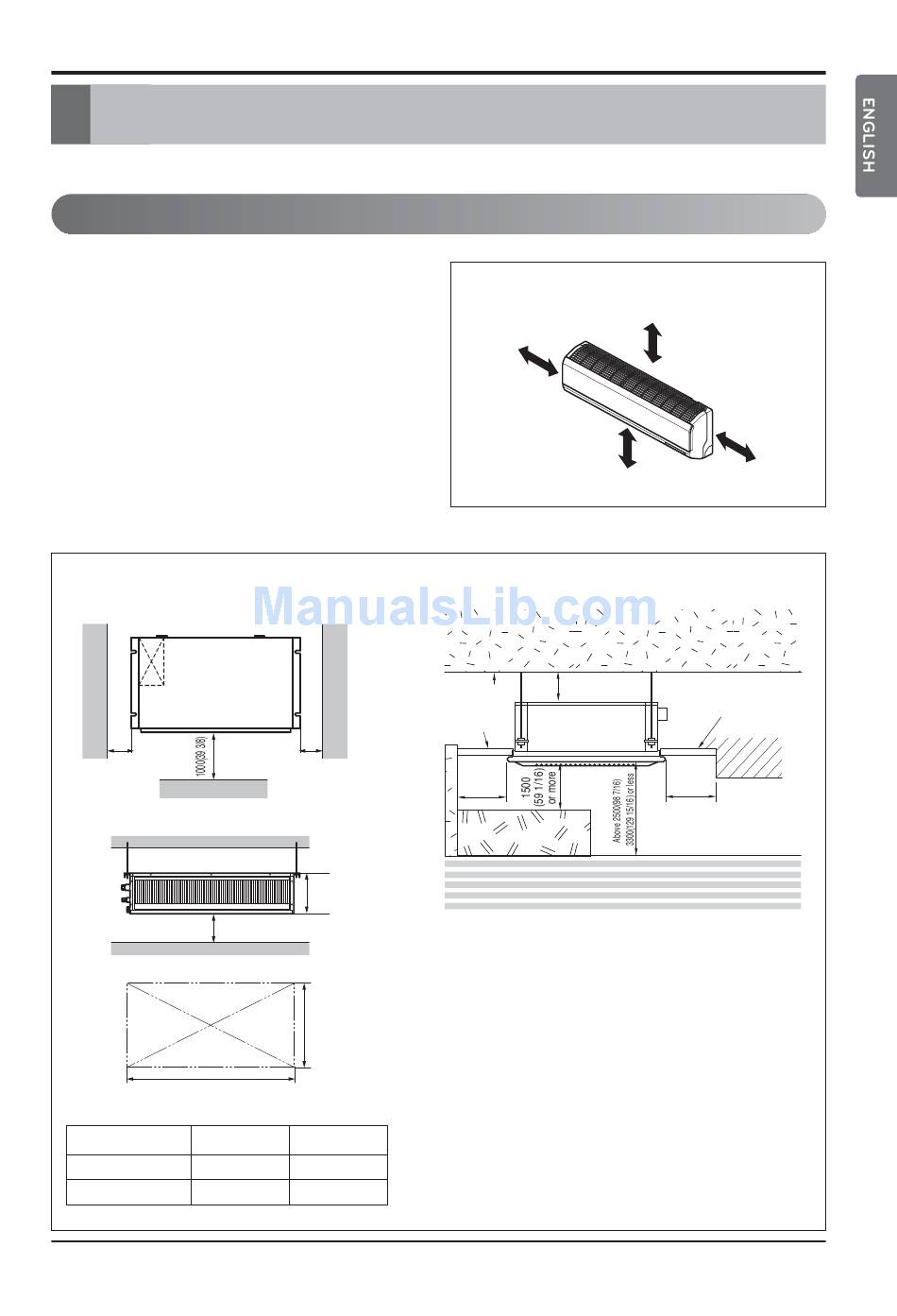

Select the best location

Indoor unit
1. Do not have any heat or steam near the unit.
2. Select a place where there are no obstacles
in front of the unit.
3. Make sure that condensation drainage can be
conveniently routed away.
4. Do not install near a doorway.
5. Ensure the unit is unobstructed, allow proper
space on all sides according to the arrows
and distance measurements in the figures.
6. Use a Metal Detector or Metal Scanner to lo-
cate studs to prevent unnecessary damage to
the wall.
[Ceiling Concealed Duct Type]
Top view
600(23 19/32)
Front
Front view
H=13/16 or more
B
Capacity(Btu/h class)
9/12k 600(23 5/8)
18k 600(23 5/8)
600(23 19/32)
7 5/16
A
A B
900(35 15/32)
1100(43 5/16)
Installation of Indoor, Outdoor Unit
[Standard/Standard Libero/Artcool Mirror/Artcool Libero Type]
More than
100(3 15/16)
More than
2300(90 9/16)
[Ceiling Cassette Type]
20(13/16) or more
Ceiling
False ceiling
1500(59 1/16)or
more
Floor
More than 200(7 7/8)
More than
100(3 15/16)
Unit:mm(inch)
False ceiling
1500(59 1/16) or
more
Unit:mm(inch)
Installation Manual 9
