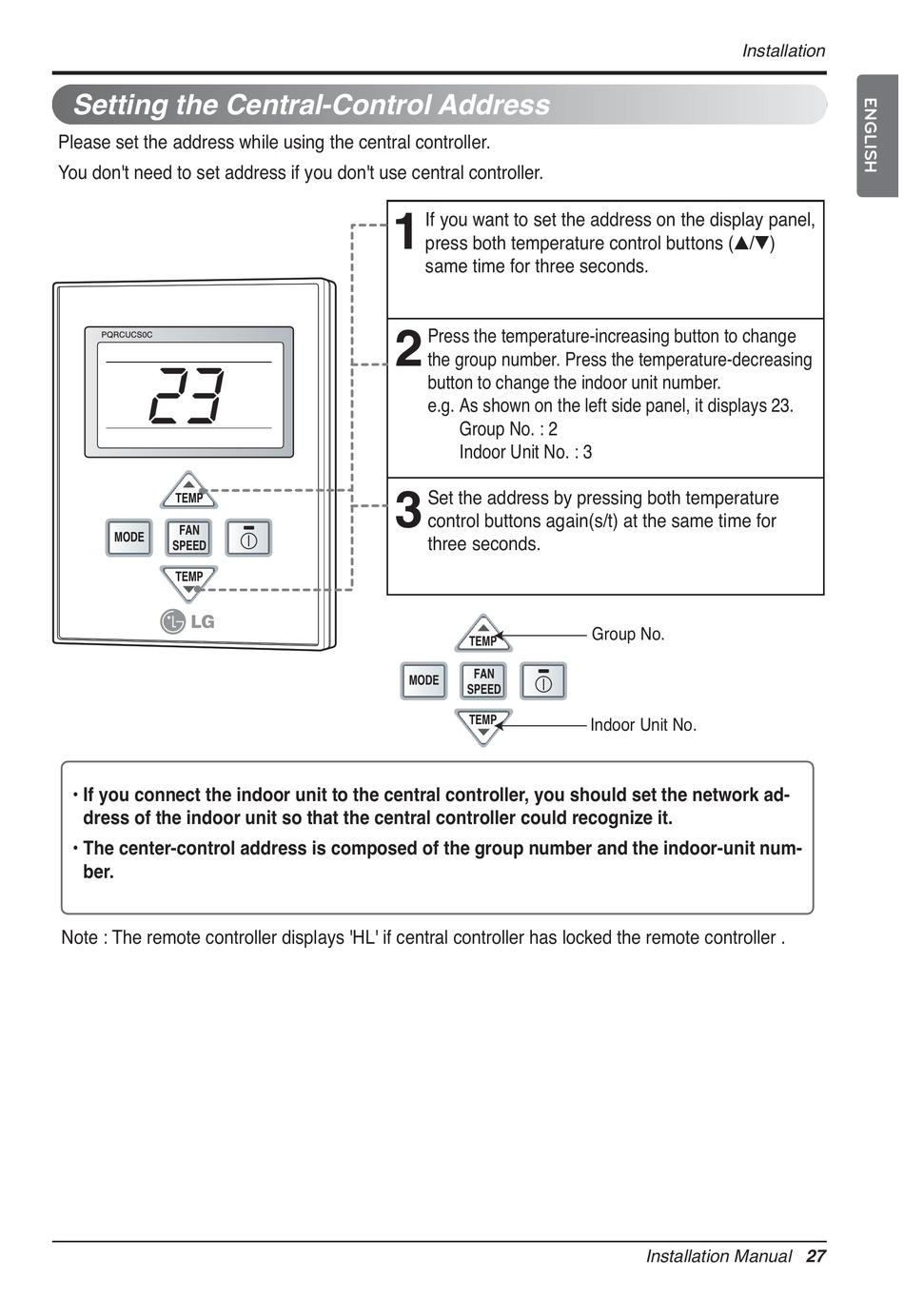

Setting the Central-Control Address

Please set the address while using the central controller.
You don't need to set address if you don't use central controller.
PQRCUCS0C
Defrost Preheat Out door
TEMP
FAN
MODE
SPEED
TEMP
• If you connect the indoor unit to the central controller, you should set the network ad-
dress of the indoor unit so that the central controller could recognize it.
• The center-control address is composed of the group number and the indoor-unit num-
ber.
Note : The remote controller displays 'HL' if central controller has locked the remote controller .
1
2
Room Temp
Total on
Central Run
3
If you want to set the address on the display panel,
press both temperature control buttons (s/t)
same time for three seconds.
Press the temperature-increasing button to change
the group number. Press the temperature-decreasing
button to change the indoor unit number.
e.g. As shown on the left side panel, it displays 23.
Group No. : 2
Indoor Unit No. : 3
Set the address by pressing both temperature
control buttons again(s/t) at the same time for
three seconds.
TEMP
FAN
MODE
SPEED
TEMP
Installation
Group No.
Indoor Unit No.
