Wired remote controller switch information

Group Control
2
1
Ceiling Height/Default E.S.P
3
2
1
S/W 1
Select Product
2
1
Room Temp. Sensing
• When changing the product selection switch and group control switch, the power must be recon-
nected to reflect the changes.
• The central control could operate inappropriately depends on indoor unit type, when the remote
controller is set as slave.
24 Multi Air Conditioner
SWGR
SWHI
SWPD
SWTH

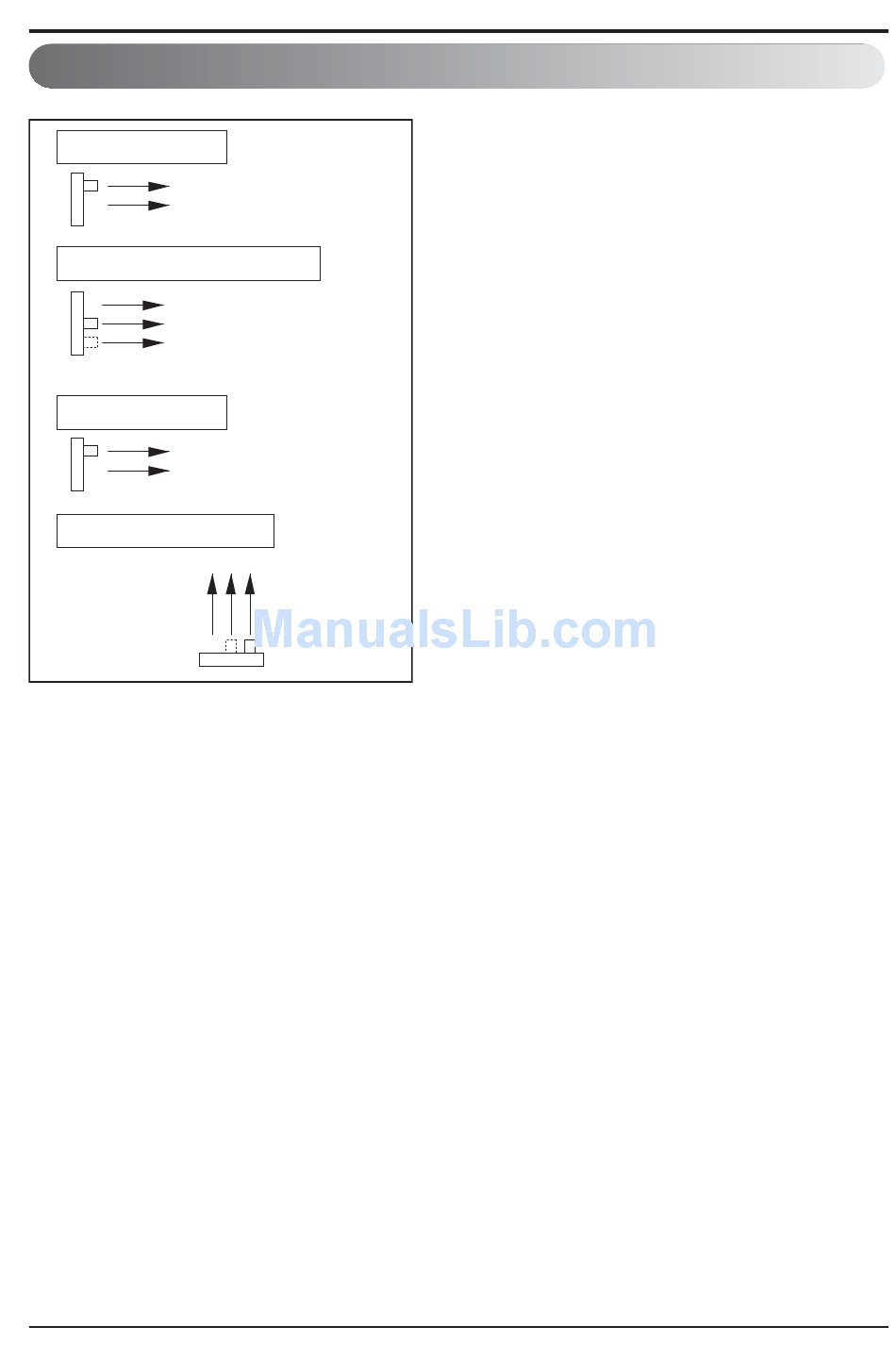

3 2 1
Group control switch
1. For individual control/Master use
2. For group control/Slave use
Ceiling height selection switch
1. Low ceiling
2. Standard ceiling
3. High ceiling
Product selection switch
1. Cooling Only product
2. Heat Pump product
Indoor temperature sensor selection
switch
1. Use the temperature sensor on the remote
controller.
2. Use the temperature sensor on the product.
3. Use the sensors on the product and remote
controller.
