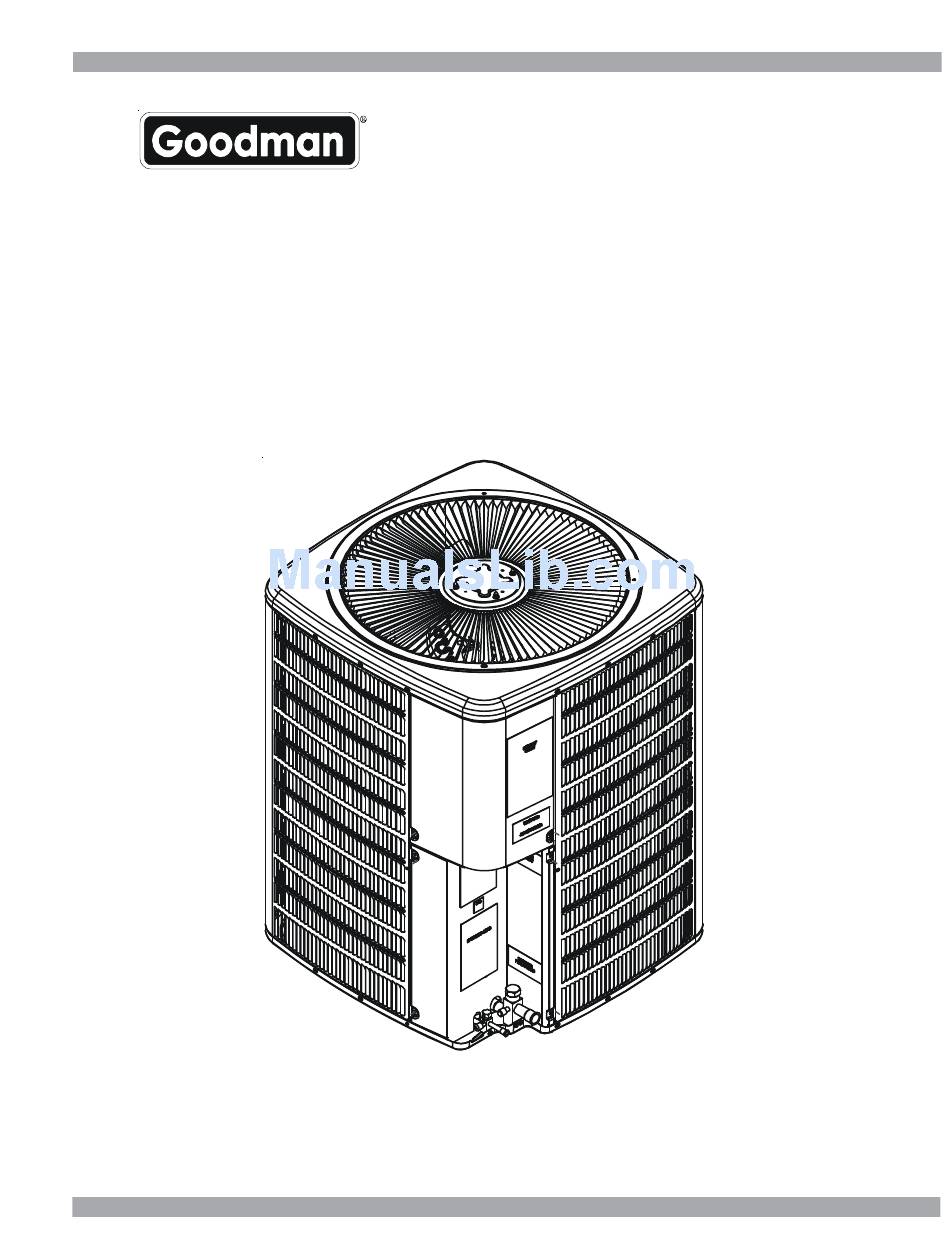

GSX 13 SEER Single Phase
Condensing Units with R-410A
•
Refer to Service Manual RS6200006 for installation, operation, and troubleshooting information.
•
All safety information must be followed as provided in the Service Manual.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians
only. Goodman does not assume any responsibility for property damage or
personal injury due to improper service procedures or services performed by an
unqualified person.
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU
TECHNICAL MANU
Copyright © 2007 - 2011 Goodman Manufacturing
Company, L.P.
AL
AL
AL
AL
RT6113008r3
December 2011
Advertisement
Related Manuals for Goodman GSX 13 SEER
Summary of Contents for Goodman GSX 13 SEER
- Page 1 Models listed on page 3. This manual is to be used by qualified, professionally trained HVAC technicians RT6113008r3 only. Goodman does not assume any responsibility for property damage or December 2011 personal injury due to improper service procedures or services performed by an unqualified person.
-
Page 2: Product Identification
Disconnect ALL power before servicing or installing this unit. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death. Installation and repair of this unit Goodman will not be responsible WARNING WARNING WARNING... - Page 3 PRODUCT IDENTIFICATION The model number is used for positive identification of component parts used in manufacturing. Please use this number when requesting service or parts information. GSX130181A* GSX130181C* GSX130241A* GSX130301A* GSX130181D* GSX130361A* GSX130241D* GSX130421A* GSX130301D* GSX130481A* GSX130361D* GSX130601A* GSX130181E* GSX130181B* GSX130241B* GSX130301B* GSX130361B*...
-
Page 4: Product Design
PRODUCT DESIGN GSX13 models are available in 1 1/2 through 5 ton sizes and WARNING use R-410A refrigerant. They are designed for 208/230 volt To avoid possible injury, explosion or death, practice single phase applications. safe handling of refrigerants. The condenser air is pulled through the condenser coil by a direct drive propeller fan. - Page 5 DIMENSIONS PRODUCT DESIGN Model Dimensions - W x D x H Model Dimensions - W x D x H GSX130181C* 26" x 26" x 27½" GSX130181A* 26" x 26" x 32¼" GSX130241A* 26" x 26" x 32¼" GSX130181D* 23½" x 23½" x 23 1/8" GSX130301A* 26"...
-
Page 6: Condensing Unit Specifications
CONDENSING UNIT SPECIFICATIONS GSX130[18-60]1A* GSX130181A* GSX130241A* GSX130301A* GSX130361A* Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 Compressor R.L. Amps 9.00 13.4 12.8 16.6 L.R. Amps 48.0 58.3 64.0 79.0 High Pressure Switch Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG Close 420 PSIG 420 PSIG... - Page 7 CONDENSING UNIT SPECIFICATIONS GSX130[18-60]1B* GSX130181B* GSX130241B* GSX130301B* GSX130361B* Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 Compressor R.L. Amps 9.00 13.5 12.8 16.7 L.R. Amps 48.0 58.3 64.0 79.0 High Pressure Switch Open Close Condenser Fan Motor Horsepower F.L. Amps 1.10 1.10 1.10 1.10...
-
Page 8: High Pressure Switch
CONDENSING UNIT SPECIFICATIONS GSX130181C* GSX130181C* Cooling Capacity, BTUH 18,000 SEER/EER 13 / 11 Compressor R.L. Amps 6.70 L.R. Amps 40.0 High Pressure Switch Open Close Condenser Fan Motor Horsepower F.L. Amps 1.10 Liquid Line, Inches O.D.* 3/8" Suction Line, Inches O.D.* 3/4"... - Page 9 CONDENSING UNIT SPECIFICATIONS GSX130[18-36]1D* GSX130181E* GSX130181D* GSX130241D* GSX130301D* GSX130361D* Nominal Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 SEER/EER 13 / 11 13 / 11 13 / 11 13 / 11 Compressor R.L. Amps 6.70 13.5 12.80 14.1 L.R. Amps 40.0 58.3 64.0 77.0...
- Page 10 COOLING PERFORMANCE DATA GSX130181A*...
- Page 11 COOLING PERFORMANCE DATA GSX130181A*...
- Page 12 COOLING PERFORMANCE DATA GSX130241A*...
- Page 13 COOLING PERFORMANCE DATA GSX130241A*...
- Page 14 COOLING PERFORMANCE DATA GSX130301A*...
- Page 15 COOLING PERFORMANCE DATA GSX130301A*...
- Page 16 COOLING PERFORMANCE DATA GSX130361A*...
- Page 17 COOLING PERFORMANCE DATA GSX130361A*...
- Page 18 COOLING PERFORMANCE DATA GSX130421A*...
- Page 19 COOLING PERFORMANCE DATA GSX130421A*...
- Page 20 COOLING PERFORMANCE DATA GSX130481A*...
- Page 21 COOLING PERFORMANCE DATA GSX130481A*...
- Page 22 COOLING PERFORMANCE DATA GSX130601A*...
- Page 23 COOLING PERFORMANCE DATA GSX130601A*...
- Page 24 COOLING PERFORMANCE DATA GSX130181B*...
- Page 25 COOLING PERFORMANCE DATA GSX130181B*...
- Page 26 COOLING PERFORMANCE DATA GSX130241B*...
- Page 27 COOLING PERFORMANCE DATA GSX130241B*...
- Page 28 COOLING PERFORMANCE DATA GSX130301B*...
- Page 29 COOLING PERFORMANCE DATA GSX130301B*...
- Page 30 COOLING PERFORMANCE DATA GSX130361B*...
- Page 31 COOLING PERFORMANCE DATA GSX130361B*...
- Page 32 COOLING PERFORMANCE DATA GSX130421B*...
- Page 33 COOLING PERFORMANCE DATA GSX130421B*...
- Page 34 COOLING PERFORMANCE DATA GSX130481B*...
- Page 35 COOLING PERFORMANCE DATA GSX130481B*...
- Page 36 COOLING PERFORMANCE DATA GSX130601B*...
- Page 37 COOLING PERFORMANCE DATA GSX130601B*...
- Page 38 COOLING PERFORMANCE DATA GSX130181C*...
- Page 39 COOLING PERFORMANCE DATA GSX130181C*...
- Page 40 COOLING PERFORMANCE DATA GSX130181D*...
- Page 41 COOLING PERFORMANCE DATA GSX130181D*...
- Page 42 COOLING PERFORMANCE DATA GSX130241D*...
- Page 43 COOLING PERFORMANCE DATA GSX130241D*...
- Page 44 COOLING PERFORMANCE DATA GSX130301DA...
- Page 45 COOLING PERFORMANCE DATA GSX130301DA...
- Page 46 COOLING PERFORMANCE DATA GSX130301DB...
- Page 47 COOLING PERFORMANCE DATA GSX130301DB...
- Page 48 COOLING PERFORMANCE DATA GSX130361D*...
- Page 49 COOLING PERFORMANCE DATA GSX130361D*...
- Page 50 COOLING PERFORMANCE DATA GSX130181E*...
- Page 51 COOLING PERFORMANCE DATA GSX130181E*...
-
Page 52: Performance Data
PERFORMANCE DATA PERFORMANCE TEST All data based upon listed indoor dry bulb temperature. .00 inches external static pressure on coil of outdoor section. Indoor air cubic feet per minute (CFM) as listed in the Performance Data Sheets: If conditions vary from this, results will change as follows: As indoor dry bulb temperatures increase, a slight increase will occur in indoor air temperature drop (Delta T). -
Page 53: Wiring Diagrams
WIRING DIAGRAMS GSX130[18-60]1A* HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring. - Page 54 WIRING DIAGRAMS GSX130[18-60]1B* / GSX130181C* / GSX130[18-36]1D* HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
- Page 55 GSX130[18-60]1B* / GSX130181C* WIRING DIAGRAMS GSX130[18-36]1D* HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
- Page 56 WIRING DIAGRAMS GSX130181E* HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
