C
C
: 18,000 - 60,000 BtU/
ooling
ApACity

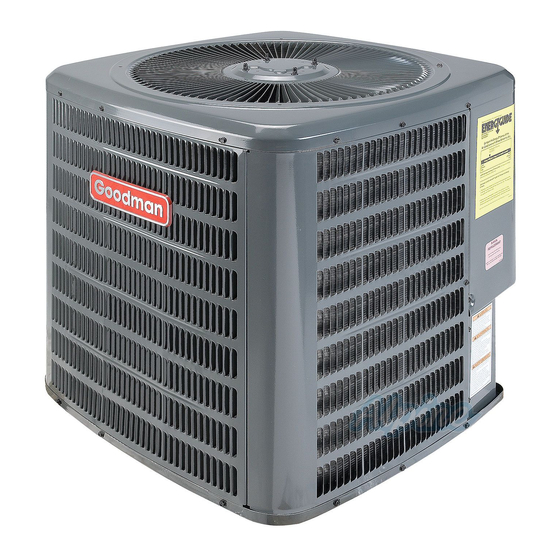

Standard Features
• R-410A chlorine-free refrigerant
• Energy-efficient compressor
• Factory-installed filter drier
• Copper tube/aluminum fin coil; GSX130241C
contains aluminum tube / aluminum fin coil
• Service valves with sweat connections
and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed
Cabinet Features
• Goodman® brand louvered sound control
top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish
with 500-hour salt-spray approval
• Top and side maintenance access
• Single-panel access to controls with space provided
for field-installed accessories
• When properly anchored, meets the 2001 Florida
Building Code unit integrity requirements for
hurricane-type winds (Anchor bracket kits available.)
* Complete warranty details available from your local dealer or
at www.goodmanmfg.com. To receive the 10-Year Parts Limited
Warranty, online registration must be completed within 60 days
of installation. Online registration is not required in California
or Quebec.
SS-GSX13
13 SEER / 1½
h
Contents
Nomenclature ......................................................................2
Product Specifications .........................................................3
Expanded Cooling Data .......................................................4
AHRI Ratings . ......................................................................22
Dimensions ........................................................................32
Wiring Diagrams ...............................................................33
Accessories .........................................................................36
www.goodmanmfg.com
GSX13
S
S
plit
yStem
A
C
ir
onditioner
5 t
to
onS
Supersedes 12/11
1/12

Advertisement

loading
Need help?

Need help?

Do you have a question about the GSX13 and is the answer not in the manual?

Questions and answers

Related Manuals for Goodman GSX13

Summary of Contents for Goodman GSX13

  • Page 1: Table Of Contents

    GSX13 plit yStem onditioner 13 SEER / 1½ : 18,000 - 60,000 BtU/ ooling ApACity Standard Features • R-410A chlorine-free refrigerant • Energy-efficient compressor • Factory-installed filter drier • Copper tube/aluminum fin coil; GSX130241C contains aluminum tube / aluminum fin coil • Service valves with sweat connections and easy-access gauge ports • Contactor with lug connection • Ground lug connection • AHRI Certified • ETL Listed Cabinet Features • Goodman® brand louvered sound control top design • Steel louver coil guard...

  • Page 2: Nomenclature

    Heat Pump R-22 Heat Pump R-410A Nominal Capacity 1½ Tons 4 Tons Efficiency 2 Tons 5 Tons 13 SEER 2½ Tons 7½ tons 14 SEER 3 Tons 10 Tons 3½ Tons * Neither used for order entry or inventory management. www.goodmanmfg.com SS-GSX13...
  • Page 3 PecificationS PecificationS GSX13 GSX13 GSX13 GSX13 GSX13 GSX13 GSX13 GSX13 GSX13 0181D* 0181E* 0241C* 0241D* 0301D* 0361D* 0421B* 0481B* 0601B* Capacities Nominal Cooling (BTU/h) 18,000 18,000 24,000 24,000 30,000 36,000 42,000 48,000 60,000 SEER / EER 13 / 11...
  • Page 4 — gSx130181d* / CA*f1824*6d* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 5 — gSx130181d* / CA*f1824*6d* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...
  • Page 6 — gSx130181e* / CApf1824B6dB xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 7 — gSx130181e* / CApf1824B6dB ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...
  • Page 8 — gSx130241C* / CA*f1824*6d* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 9 — gSx130241C* / CA*f1824*6d* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...
  • Page 10 — gSx130241d* / CA*f1824*6d* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 11 — gSx130241d* / CA*f1824*6d* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...

  • Page 12: Expanded Cooling Data

    — gSx130301d* / CA*f3030*6d* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 13 — gSx130301d* / CA*f3030*6d* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...
  • Page 14 — gSx130361d* / CA*f3636*6d* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 15 — gSx130361d* / CA*f3636*6d* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...
  • Page 16 — gSx130421B* / CA*f3642*6B* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 17 — gSx130421B* / CA*f3642*6B* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...
  • Page 18 — gSx130481B* / CA*f4860*6B* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 19 — gSx130481B* / CA*f4860*6B* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...
  • Page 20 — gSx130601B* / CA*f4961*6A* xpAnded ooling www.goodmanmfg.com SS-GSX13...
  • Page 21 — gSx130601B* / CA*f4961*6A* ( xpAnded ooling Cont SS-GSX13 www.goodmanmfg.com...

  • Page 22: Ahri Ratings

    G*VC950453BXA* 17,800 13,500 14.00 11.50 4699962 CA*F1824*6D* G*VM960603BXA* 17,800 13,500 14.00 11.50 4699963 CA*F1824*6D* G*E80603B*A* 17,800 13,500 14.00 11.50 4887524 GSX13 CA*F1824*6D* G*E80703B*** 17,800 13,500 14.00 11.50 4699960 0181D* CA*F1824*6D* G*VC80604B*A* 17,700 13,500 14.00 11.50 4886848 CA*F1824*6D* A*VC80604B*A* 17,700 13,500 14.00...
  • Page 23 G*E80603B*A* 18,000 13,800 14.00 11.50 5039753 CHPF2430B6C* G*E80603B*B* 18,000 13,800 14.00 11.50 5039754 CHPF2430B6C* G*VC80604B*B* 17,700 13,700 14.00 11.50 5039798 GSX13 CHPF2430B6C* G*VM960603BXA* 18,200 13,900 14.00 11.50 5039757 0181E* CHPF2430B6C*+EEP 17,800 13,500 13.00 11.00 5039758 (cont.) CHPF2430B6C*+MBVC1200**-1A* 18,200 13,800 14.00 11.50...
  • Page 24 4699991 AWUF31XX16A* 23,000 17,700 14.00 11.30 4699992 AWUF32XX16A* 23,000 17,700 14.00 11.30 4699993 CA*F1824*6D* G*VC950704CXA* 23,000 17,700 14.00 11.50 4700001 GSX13 0241D* CA*F1824*6D* G*VM960603BXA* 23,000 17,700 14.00 11.50 4700002 CA*F1824*6D* G*E80603B*A* 23,000 17,700 14.00 11.50 4887527 CA*F1824*6D* G*E80703B** 23,000 17,700 14.00...
  • Page 25 A*VC950714CXA* 28,600 22,600 14.00 11.50 4700046 CA*F3131*6D* A*VM960604CXA* 28,600 22,600 14.00 11.50 4700047 CA*F3131*6D* G*VC950704CXA* 28,400 22,400 14.00 11.50 4700051 GSX13 CA*F3131*6D* G*VC950714CXA* 28,600 22,600 14.00 11.50 4700052 0301D* CA*F3131*6D*+EEP 28,600 22,600 13.00 11.00 4700055 (cont.) CA*F3131*6D*+MBVC1200**-1A* 28,400 22,400 14.00 11.50...
  • Page 26 G*VC950714CXA* 34,000 26,200 14.00 11.50 4700136 CA*F3743*6D* G*E80603B*A* 34,000 26,200 13.50 11.30 4887536 CA*F3743*6D* A*VC950714CXA* 34,000 26,200 14.00 11.50 4700131 GSX13 0361D* CA*F3743*6D* A*VC950915DXA* 34,000 26,200 14.00 11.50 4700132 (cont.) CA*F3743*6D* G*E80905C** 34,000 26,200 14.00 11.50 4700135 CA*F3743*6D* G*VM960805CXA* 34,000 26,200 14.00...
  • Page 27 G*VC950714CXA* 41,000 30,800 14.00 11.50 4202116 CA*F4860*6D* G*VM961155DXA* 41,000 30,800 14.00 11.50 4652922 CA*F4860*6D* GME950805CXA* 40,500 30,400 14.00 11.30 4703730 GSX13 CA*F4860*6D* G*E80805C*A* 41,000 30,800 13.50 11.50 4869935 0421B* CA*F4860*6D* GME951005DXA* 40,500 30,400 13.50 11.00 4703539 CA*F4860*6D* A*VC950915DXA* 41,000 30,800 14.00...
  • Page 28 G*E80805C*A* 41,000 30,800 13.50 11.50 4869937 CHPF4860D6D* G*VM960805CXA* 41,000 30,800 14.00 11.50 4652942 CHPF4860D6D* A*VM960604CXA* 41,000 30,800 14.00 11.50 4652950 GSX13 CHPF4860D6D* GME951005DXA* 40,500 30,400 13.50 11.00 4703542 0421B* (cont.) CHPF4860D6D* G*VM961155DXA* 41,000 30,800 14.00 11.50 4652925 CHPF4860D6D* G*V951155D** 41,000 30,800 14.00...
  • Page 29 G*VC950905DXA* 46,000 35,400 14.00 11.30 3598696 CHPF4860D6D*+TXV G*VC951155DXA* 46,000 35,400 14.00 11.30 3598928 CHPF4860D6D*+TXV G*VC951155D** 46,000 35,400 14.00 11.30 4201733 GSX13 CHPF4860D6D*+TXV G*VC950905CXA* 46,000 35,400 14.00 11.30 4201279 0481B* CHPF4860D6D*+TXV G*VM960604CXA* 46,000 35,400 14.00 11.30 4653093 (cont.) CHPF4860D6D*+TXV G*VM960805DXA* 46,000 35,400 14.00...
  • Page 30 G*VM960805DXA* 56,500 42,400 13.00 11.00 4653289 CA*F4961*6D*+TXV ADVC80805C*A* 57,000 42,800 13.30 11.20 4869953 CA*F4961*6D*+TXV A*VC80805C*A* 57,000 42,800 13.30 11.20 4869961 GSX13 0601B* CA*F4961*6D*+TXV G*E81005C*A* 56,500 42,400 13.30 11.20 4887324 (cont.) CA*F4961*6D*+TXV G*VC81155C** 57,000 42,800 13.50 11.30 4431757 CA*F4961*6D*+TXV G*VC950915DXA* 56,500 42,400 13.00...
  • Page 31 • EEP - Order from Service Dept. Part No. B13707-38 or new Solid State Board B13707-35S. Part No. B13707-38 is not interchangeable with B13707-35S. The Goodman Gas Furnace contains the EEP cooling time delay SS-GSX13...

  • Page 32: Dimensions

    PecificationS imenSionS Dimensions Model W” D” H” GSX130181D* 23⅛ GSX130181E* 25¾ GSX130241B* 27½ GSX130241C* 27½ GSX130241D* 25¾ GSX130301D* 25¾ GSX130361D* 30¾ GSX130421B* 36¼ GSX130481B* 36¼ GSX130601B* GSX130601B* 29" 29" 40" www.goodmanmfg.com SS-GSX13...
  • Page 33 — gSx130(18-60)1B iring iAgrAm SS-GSX13 www.goodmanmfg.com...
  • Page 34 PecificationS — gSX13018-241c* iring iagram www.goodmanmfg.com SS-GSX13...
  • Page 35 PecificationS — gSX130181e iring iagram SS-GSX13 www.goodmanmfg.com...

  • Page 36: Accessories

    Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. © 2012 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA. www.goodmanmfg.com...
