Goodman GSX13 User Manual

Hide thumbs Also See for GSX13:

Advertisement

Quick Links

See also: Manual

Cooling Capacity:

18,000 - 60,000 BTU/h
Standard Features
• Energy-efficient compressor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections
and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed
SS-GSX13
Cabinet Features
• Heavy-gauge galvanized-steel cabinet
with louvered sound control top
• Attractive Architectural Gray powder-paint
finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space
provided for field-installed accessories
• When properly anchored, meets the 2010
Florida Building Code unit integrity require-
ments for hurricane-type winds
(Anchor bracket kits available.)
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the 10-
Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online
registration is not required in California or Quebec.
www.goodmanmfg.com

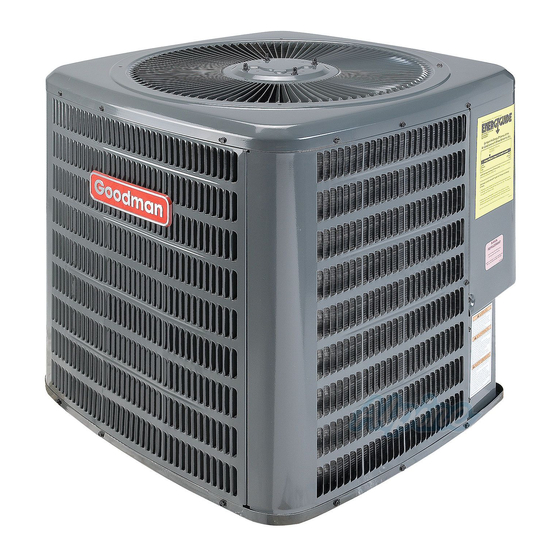

GSX13
Energy-Efficient
Split System Air Conditioner
13 SEER / 1½ to 5 Tons
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Expanded Cooling Data ......................... 4
AHRI Ratings ........................................ 20
Wiring Diagrams ................................. 47
Dimensions .......................................... 48
Accessories .......................................... 48
12/15
Supersedes 11/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the GSX13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goodman GSX13

Summary of Contents for Goodman GSX13

  • Page 1: Table Of Contents

    GSX13 Energy-Efficient Cooling Capacity: 18,000 - 60,000 BTU/h Split System Air Conditioner 13 SEER / 1½ to 5 Tons Contents Nomenclature ........2 Product Specifications ......3 Expanded Cooling Data ......4 AHRI Ratings ........20 Wiring Diagrams ......... 47 Dimensions ..........

  • Page 2: Nomenclature

    Nomenclature   6,7,8 Brand Engineering Goodman®   B rand Major   &   M inor   R evisions (not   u sed   f or   i nventory   o r   o rdering) Product   C ategory Electrical Split  ...

  • Page 3: Product Specifications

    Product Specifications GSX13 GSX13 GSX13 GSX13 GSX13 GSX13 GSX13 GSX13 0181E* 0241E* 0301B* 0361E* 0421B* 0481B* 0601B* 0611A* Capacities Nominal Cooling (BTU/h) 18,000 23,000 30,000 36,000 42,000 48,000 60,000 60,000 SEER / EER 13 / 11 13 / 11 13 / 11...

  • Page 4: Expanded Cooling Data

    Expanded Cooling Data — GSX130181E* / CAPF1824B6DB www.goodmanmfg.com SS-GSX13...
  • Page 5 Expanded Cooling Data — GSX130181E* / CAPF1824B6DB (cont.) SS-GSX13 www.goodmanmfg.com...
  • Page 6 Expanded Cooling Data — GSX130241E* / CA*F3030*6D* www.goodmanmfg.com SS-GSX13...
  • Page 7 Expanded Cooling Data — GSX130241E* / CA*F3030*6D* (cont.) SS-GSX13 www.goodmanmfg.com...
  • Page 8 Expanded Cooling Data — GSX130301B* / CA*F3030*6D* www.goodmanmfg.com SS-GSX13...
  • Page 9 Expanded Cooling Data — GSX130301B* / CA*F3030*6D* (cont.) SS-GSX13 www.goodmanmfg.com...
  • Page 10 Expanded Cooling Data — GSX130361E* / CA*F3636*6D* www.goodmanmfg.com SS-GSX13...
  • Page 11 Expanded Cooling Data — GSX130361E* / CA*F3636*6D* (cont.) SS-GSX13 www.goodmanmfg.com...
  • Page 12 Expanded Cooling Data — GSX130421B* / CA*F3642*6B* www.goodmanmfg.com SS-GSX13...
  • Page 13 Expanded Cooling Data — GSX130421B* / CA*F3642*6B* (cont.) SS-GSX13 www.goodmanmfg.com...
  • Page 14 Expanded Cooling Data — GSX130481B* / CA*F4860*6B* www.goodmanmfg.com SS-GSX13...
  • Page 15 Expanded Cooling Data — GSX130481B* / CA*F4860*6B* (cont.) SS-GSX13 www.goodmanmfg.com...
  • Page 16 Expanded Cooling Data — GSX130601B* / CA*F4961*6A* www.goodmanmfg.com SS-GSX13...
  • Page 17 Expanded Cooling Data — GSX130601B* / CA*F4961*6A* (cont.) SS-GSX13 www.goodmanmfg.com...
  • Page 18 Expanded Cooling Data — GSX130611**/CA*F4961*6D*+EEP www.goodmanmfg.com SS-GSX13...
  • Page 19 Expanded Cooling Data — GSX130611**/CA*F4961*6D*+EEP (cont.) SS-GSX13 www.goodmanmfg.com...

  • Page 20: Ahri Ratings

    G*VC960403BNA* 17,800 13,600 14.0 11.5 7353499 CA*F1824*6D* G*VC960603BNA* 17,800 13,600 14.0 11.5 7353500 CA*F1824*6D* G*VC960803BNA* 17,800 13,600 14.0 11.5 7353501 GSX13 0181E* CA*F1824*6D* G*VM970603BNA* 17,800 13,600 14.0 11.5 7353502 CA*F1824*6D* G*VM970803BNA* 17,800 13,600 14.0 11.5 7353503 CA*F1824*6D* G*EC960302BNA* 17,800 13,600 14.0...
  • Page 21 G*VM970803BNA* 18,400 14,000 14.0 11.5 7353533 CAPT3131*4A* A*VC80604B*B* 18,000 13,700 14.0 11.5 5948598 CAPT3131*4A* ADVC80603B*B* 18,000 13,700 14.0 11.5 5948610 GSX13 0181E* CAPT3131*4A* G*E80603B*B* 18,000 13,700 14.0 11.5 5948612 (cont.) CAPT3131*4A* G*VC80604B*B* 18,000 13,700 14.0 11.5 5948614 CAPT3131*4A* A*EH800603B*A* 18,000 13,700 14.0...
  • Page 22 G*VC960603BNA* 18,000 13,700 14.0 11.5 7353560 CHPF2430B6C*+TXV G*VC960803BNA* 18,000 13,700 14.0 11.5 7353561 CHPF2430B6C*+TXV G*VM970603BNA* 18,000 13,700 14.0 11.5 7353562 GSX13 0181E* CHPF2430B6C*+TXV G*VM970803BNA* 18,000 13,700 14.0 11.5 7353563 (cont.) CHPF2430B6C*+TXV G*EC960302BNA* 17,800 13,600 14.0 11.5 7365228 CHPF2430B6C*+TXV G*EC960402BNA* 17,800 13,600 14.0...
  • Page 23 A*VM970803BNA* 18,000 13,700 14.0 11.5 7354989 CSCF1824N6D*+TXV G*VC960403BNA* 18,000 13,700 14.0 11.5 7354990 CSCF1824N6D*+TXV G*VC960603BNA* 18,000 13,700 14.0 11.5 7354991 GSX13 0181E* CSCF1824N6D*+TXV G*VC960803BNA* 18,000 13,700 14.0 11.5 7354992 (cont.) CSCF1824N6D*+TXV G*VM970603BNA* 18,000 13,700 14.0 11.5 7354993 CSCF1824N6D*+TXV G*VM970803BNA* 18,000 13,700 14.0...
  • Page 24 G*EC960803BNA* 23,000 17,000 14.0 11.5 8377324 CA*F1824*6D* A*VM970803BNA* 23,000 17,000 14.0 11.5 8377336 CA*F1824*6D* G*EC960603BNA* 23,000 17,000 14.0 11.5 8377346 GSX13 0241E* CA*F1824*6D* A*EC960803BNA* 23,000 17,000 14.0 11.5 8377354 (cont.) CA*F1824*6D*+EEP 23,000 17,000 13.0 11.0 8377316 CA*F1824*6D*+MBVC1200**-1A* 23,000 17,000 14.0 11.5...
  • Page 25 A*VM970804CNA* 23,600 17,500 14.0 11.5 8377320 CA*F3743*6D*+TXV+HSK G*VC960804CNA* 23,600 17,500 14.0 11.5 8377183 CA*F3743*6D*+TXV+HSK G*VM970804CNA* 23,600 17,500 14.0 11.5 8377255 GSX13 0241E* CA*F3743*6D*+TXV+HSK A*VM970804CNA* 23,600 17,500 14.0 11.5 8377295 (cont.) CA*F3743*6D*+TXV+HSK A*VC960804CNA* 23,600 17,500 14.0 11.5 8377305 CAPT3131*4A*+EEP+HSK 22,400 16,600 13.0...
  • Page 26 CHPF2430B6C* G*EC960803BNA* 23,000 17,000 14.0 11.5 8377334 CHPF2430B6C* A*VC960403BNA* 23,200 17,200 14.0 11.5 8377335 CHPF2430B6C*+EEP 23,000 17,000 13.0 11.0 8377146 GSX13 0241E* CHPF2430B6C*+MBVC1200**-1A* 23,400 17,300 14.0 11.5 8377282 (cont.) CHPF2430B6C*+TXV+HSK G*VC960603BNA* 23,200 17,200 14.0 11.5 8377107 CHPF2430B6C*+TXV+HSK A*VC960803BNA* 23,200 17,200 14.0...
  • Page 27 A*VM970803BNA* 23,000 17,000 14.0 11.5 8377294 CSCF1824N6D* G*VC960403BNA* 23,000 17,000 14.0 11.5 8377300 CSCF1824N6D* G*VM970803BNA* 23,000 17,000 14.0 11.5 8377326 GSX13 0241E* CSCF1824N6D* G*VC960803BNA* 23,000 17,000 14.0 11.5 8377350 (cont.) CSCF1824N6D* A*VC960803BNA* 23,000 17,000 14.0 11.5 8377352 CSCF1824N6D* G*VC960804CNA* 23,000 17,000 14.0...
  • Page 28 G*VM970803BNA* 23,200 17,200 14.0 11.5 8377147 CSCF3036N6D*+TXV+HSK G*VC960803BNA* 23,200 17,200 14.0 11.5 8377149 CSCF3036N6D*+TXV+HSK G*VC960603BNA* 23,200 17,200 14.0 11.5 8377180 GSX13 CSCF3036N6D*+TXV+HSK A*VM970804CNA* 23,200 17,200 14.0 11.5 8377190 0241E* CSCF3036N6D*+TXV+HSK G*VC960804CNA* 23,200 17,200 14.0 11.5 8377205 (cont.) CSCF3036N6D*+TXV+HSK G*VC960403BNA* 23,200 17,200 14.0...
  • Page 29 14.0 11.5 1,000 7365273 CA*F3131*6D* G*EC960603BNA* 28,600 21,600 13.5 11.5 1,000 7365281 CA*F3131*6D* G*EC960803BNA* 28,600 21,600 13.5 11.5 1,000 7365289 GSX13 0301B* CA*F3131*6D* A*EC960302BNA* 28,600 21,600 14.0 11.5 1,000 7365374 (cont.) CA*F3131*6D* A*EC960402BNA* 28,600 21,600 14.0 11.5 1,000 7365381 CA*F3131*6D*...
  • Page 30 28,400 21,400 14.0 11.5 7489368 CA*F3137*6A*+TXV G*VM970803BNA* 28,400 21,400 14.0 11.5 1,025 7489369 CA*F3636*6D*+EEP 28,400 21,400 13.0 11.0 1,000 5561912 GSX13 0301B* CA*F3636*6D*+EEP+TXV 28,400 21,400 13.0 11.0 1,000 5561913 (cont.) CA*F3642*6D*+EEP 28,400 21,400 13.0 11.0 1,000 5561914 CA*F3642*6D*+EEP+TXV 28,400 21,400 13.0...
  • Page 31 14.0 11.5 1,000 7353824 CAPT3743*4A* G*VM970603BNA* 28,200 21,200 13.5 11.5 1,000 7353825 CAPT3743*4A* G*VM970803BNA* 28,200 21,200 14.0 11.5 1,030 7353826 GSX13 0301B* CAPT3743*4A* G*VM970804CNA* 28,200 21,200 14.0 11.5 1,000 7353827 (cont.) CAPT3743*4A* G*EC960302BNA* 28,400 21,400 14.0 11.5 1,000 7365268 CAPT3743*4A*...
  • Page 32 14.0 11.5 1,000 7353852 CHPF3642C6C*+TXV A*VM970804CNA* 28,400 21,400 14.0 11.5 1,000 7353853 CHPF3642C6C*+TXV G*VC960804CNA* 28,400 21,400 14.0 11.5 1,000 7353854 GSX13 0301B* CHPF3642C6C*+TXV G*VM970804CNA* 28,400 21,400 14.0 11.5 1,000 7353855 (cont.) CHPF4860D6D*+TXV G*E80805C*B* 28,800 21,800 14.0 11.5 1,000 7614640 CSCF3036N6D*...
  • Page 33 13.5 11.0 1,090 7489419 CA*F3137*6A* G*EC960803BNA* 34,000 26,400 13.5 11.0 1,090 7489420 CA*F3137*6A* G*VC80604B*B* 34,000 26,400 14.0 11.5 1,095 7489421 GSX13 0361E* CA*F3137*6A* G*VC960403BNA* 34,000 26,400 13.5 11.0 1,050 7489422 CA*F3137*6A* G*VC960603BNA* 34,000 26,400 13.5 11.0 1,055 7489423 CA*F3137*6A* G*VC960803BNA*...
  • Page 34 13.5 11.3 1,150 7353901 CA*F3743*6D*+TXV G*VC960804CNA* 34,000 26,400 13.5 11.3 1,115 7353902 CA*F3743*6D*+TXV G*VC961005CNA* 34,000 26,400 13.5 11.3 1,175 7353903 GSX13 0361E* CA*F3743*6D*+TXV G*VC961205DNA* 34,000 26,400 13.5 11.3 1,150 7353904 (cont.) CA*F3743*6D*+TXV G*VM970804CNA* 34,000 26,400 13.5 11.3 1,115 7353905 CA*F3743*6D*+TXV...
  • Page 35 14.0 11.5 1,210 5696643 CHPF3642C6C*+TXV A*VC960804CNA* 33,800 26,400 13.5 11.3 1,115 7353928 CHPF3642C6C*+TXV A*VC961005CNA* 34,000 26,400 13.5 11.3 1,175 7353929 GSX13 0361E* CHPF3642C6C*+TXV A*VM970804CNA* 33,800 26,400 13.5 11.3 1,115 7353930 (cont.) CHPF3642C6C*+TXV A*VM971005CNA* 34,000 26,400 13.5 11.3 1,175 7353931 CHPF3642C6C*+TXV...
  • Page 36 26,200 13.5 11.3 1,150 7353955 CSCF3642N6D*+EEP 34,600 27,000 13.0 11.0 1,200 6752561 CSCF3642N6D*+TXV A*VC960804CNA* 33,600 26,200 13.0 11.0 1,115 7353956 GSX13 CSCF3642N6D*+TXV A*VC961005CNA* 33,800 26,400 13.5 11.3 1,175 7353957 0361E* CSCF3642N6D*+TXV A*VC961205DNA* 33,600 26,200 13.5 11.3 1,150 7353958 (cont.) CSCF3642N6D*+TXV...
  • Page 37 14.0 11.5 1,300 7354004 CA*F4860*6D*+TXV A*VC961005CNA* 41,000 31,400 14.0 11.5 1,300 7354005 CA*F4860*6D*+TXV A*VC961205DNA* 40,500 31,000 14.0 11.5 1,250 7354006 GSX13 0421B* CA*F4860*6D*+TXV A*VM970804CNA* 41,000 31,400 14.0 11.5 1,300 7354007 (cont.) CA*F4860*6D*+TXV A*VM971005CNA* 41,000 31,400 14.0 11.5 1,300 7354008 CA*F4860*6D*+TXV...
  • Page 38 31,000 13.5 11.3 1,300 7354035 CHPF3743C6B*+EEP 40,000 30,600 13.0 11.0 1,400 6497574 CHPF3743C6B*+TXV A*VC960804CNA* 40,500 31,000 14.0 11.5 1,300 7354036 GSX13 CHPF3743C6B*+TXV A*VC961005CNA* 40,500 31,000 14.0 11.5 1,300 7354037 0421B* (cont.) CHPF3743C6B*+TXV A*VM970804CNA* 40,500 31,000 14.0 11.5 1,300 7354038 CHPF3743C6B*+TXV...
  • Page 39 14.0 11.5 1,275 7365416 CHPF4860D6D*+TXV A*EC961205DNA* 40,500 31,000 14.0 11.5 1,400 7365421 CHPF4860D6D*+TXV G*E80805C*B* 41,000 31,400 14.0 11.5 1,400 7614641 GSX13 0421B* CSCF3642N6D*+EEP 40,000 30,600 13.0 11.0 1,325 4767422 (cont.) CSCF4860N6D* A*VC960804CNA* 41,000 31,400 13.5 11.3 1,300 7354068 CSCF4860N6D* A*VC961005CNA*...
  • Page 40 14.0 11.5 1,585 7354092 CA*F4961*6D*+TXV A*VC961005CNA* 45,000 34,600 14.0 11.5 1,520 7354093 CA*F4961*6D*+TXV A*VC961205DNA* 46,000 35,200 14.0 11.5 1,575 7354094 GSX13 CA*F4961*6D*+TXV A*VM970804CNA* 45,000 34,600 14.0 11.5 1,585 7354095 0481B* CA*F4961*6D*+TXV A*VM971005CNA* 45,000 34,600 14.0 11.5 1,520 7354096 CA*F4961*6D*+TXV A*VM971205DNA*...
  • Page 41 14.0 11.5 1,585 7354116 CHPF4860D6D*+TXV A*VC961005CNA* 45,000 34,600 14.0 11.5 1,520 7354117 CHPF4860D6D*+TXV A*VC961205DNA* 46,000 35,200 14.0 11.5 1,575 7354118 GSX13 0481B* CHPF4860D6D*+TXV A*VM970804CNA* 45,000 34,600 14.0 11.5 1,585 7354119 (cont.) CHPF4860D6D*+TXV A*VM971005CNA* 45,000 34,600 14.0 11.5 1,520 7354120 CHPF4860D6D*+TXV...
  • Page 42 13.0 11.0 1,600 7354150 CA*F4961*6D*+TXV G*VM971205DNA* 54,000 38,500 13.5 11.5 1,585 7354151 CA*F4961*6D*+TXV G*EC961205DNA* 56,500 40,000 13.0 11.0 1,950 7365324 GSX13 CA*F4961*6D*+TXV A*EC961205DNA* 56,500 40,000 13.0 11.0 1,950 7365432 0601B* CAPT4961*4A* A*VC80805C*B* 55,500 39,500 13.0 11.0 1,625 5520629 CAPT4961*4A* A*VC81005C*B*...
  • Page 43 13.5 11.5 1,585 7354169 CHPF4860D6D*+TXV G*VC960804CNA* 54,000 38,500 13.5 11.0 1,585 7354170 CHPF4860D6D*+TXV G*VC961005CNA* 54,000 38,500 13.0 11.0 1,600 7354171 GSX13 0601B* CHPF4860D6D*+TXV G*VC961205DNA* 54,000 38,500 13.5 11.5 1,585 7354172 (cont.) CHPF4860D6D*+TXV G*VM970804CNA* 54,000 38,500 13.5 11.0 1,585 7354173 CHPF4860D6D*+TXV...
  • Page 44 14.0 11.5 1,545 7354193 CA*F4961*6D*+TXV G*VM971005CNA* 56,000 38,500 13.5 11.5 1,520 7354194 CA*F4961*6D*+TXV G*VM971205DNA* 56,000 38,500 14.0 11.5 1,545 7354195 GSX13 CA*F4961*6D*+TXV G*EC961205DNA* 56,000 38,500 14.0 11.5 1,525 7365327 0611A* (cont.) CA*F4961*6D*+TXV A*EC961205DNA* 56,000 38,500 14.0 11.5 1,525 7365435 CAPT4961*4A*...
  • Page 45 • When matching the outdoor unit to the indoor unit, use the piston supplied with the outdoor unit or that specified on the piston kit chart supplied with the indoor unit. • EEP - Order from Service Dept. Part No. B13707-38 or new Solid State Board B13707-35S. Part No. B13707-38 is not interchangeable with B13707-35S. The Goodman brand gas furnace contains the EEP cooling time delay SS-GSX13...
  • Page 46 Wiring Diagram— GSX13018-241E www.goodmanmfg.com SS-GSX13...

  • Page 47: Wiring Diagrams

    Wiring Diagram— GSX130(30-61)1** SS-GSX13 www.goodmanmfg.com...

  • Page 48: Dimensions

    Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. © 2015 Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA. www.goodmanmfg.com...
