Safety Instruction

Installation and mounting of electrical appliances must be
carried out only by skilled electricians. It is imperative to observe
the generally applicable safety measures, such as:
Before starting work on the appliance, switch off power supply
and secure against switching on.
Positioning
The room thermostat should be positioned away from direct
sunlight or heat producing appliances. It is recommended that
the thermostat is installed 1·2 metres above floor level.

Installation

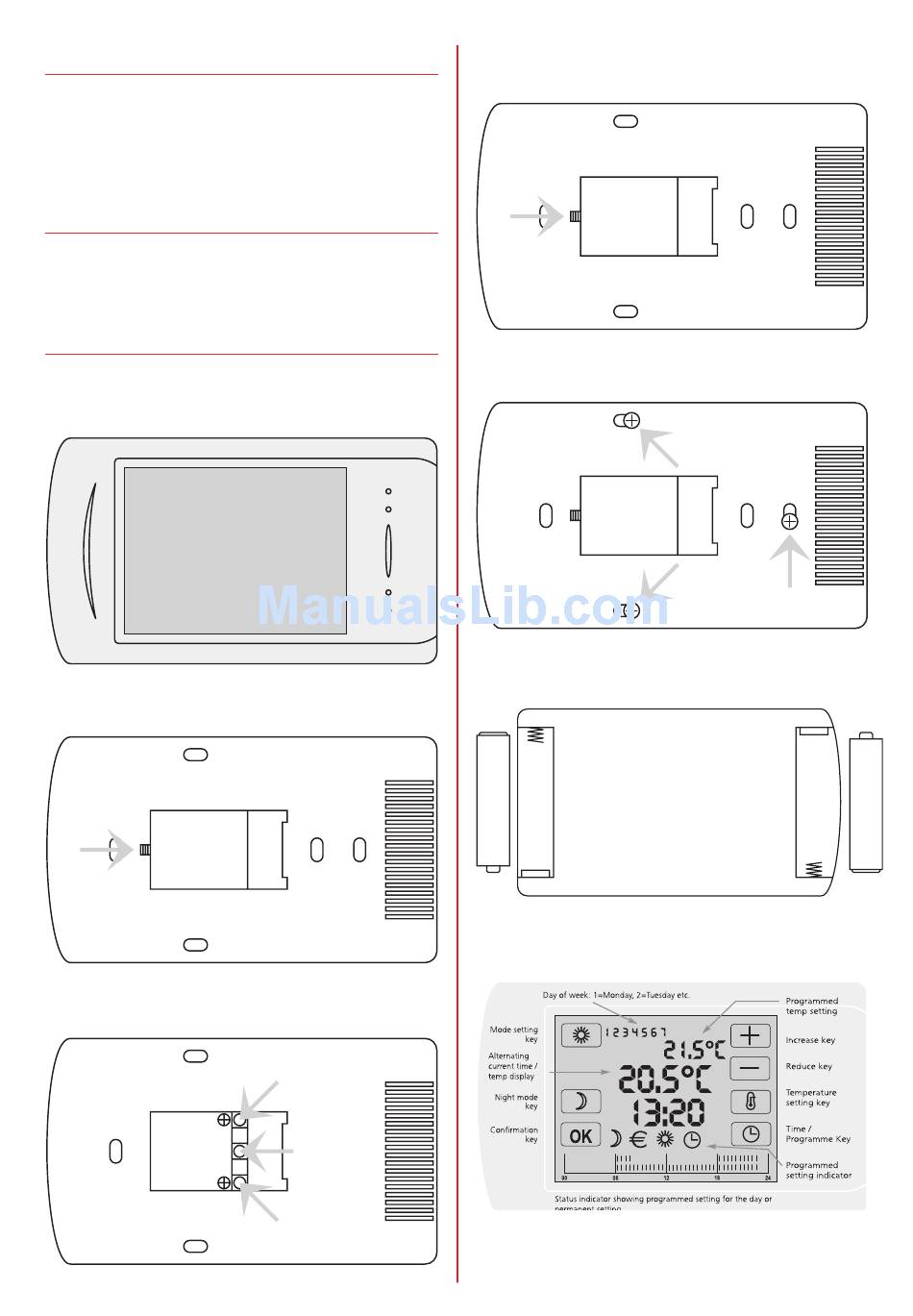

Step 1:
Open front and rear case with screwdriver, then take off
the front case
Step 2:
Open relay case with screwdriver and take off the relay case
Step 3:
Connect all wires properly (See page 2)
NC
COM
NO
1
Step 4:
Cover the relay case and screw it properly with screwdriver
Step 5:
Mount and fix rear case with screws in wall
Step 6:
Put 2 x 1·5v AA batteries into battery box observing polarity
Step 7:
Cover front and rear case correctly
