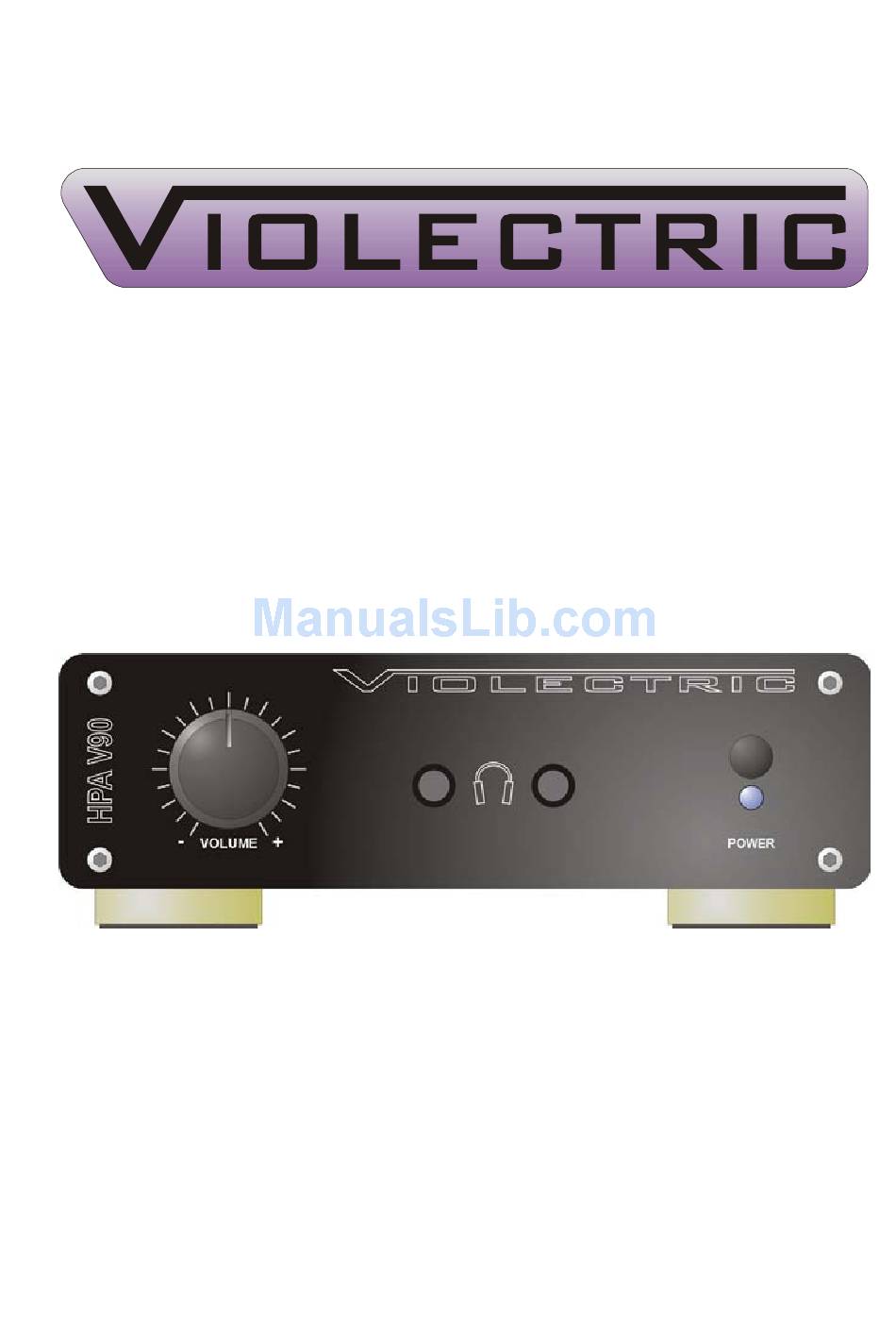

- Page 1 HEADPHONE AMPLIFIER HPA V90 USER´s MANUAL...
-
Page 2: Table Of Contents
Content Theme Page About Violectric Safety Instructions The Earth / Grounding Concept Connection / Connectors General Operation Special Functions Things to know Disposal Technical Data Jumper Setting Conformity Statement Warranty CAUTION !! THE HIGH OUTPUT LEVELS ACHIEVABLE WITH THIS UNIT MAY... - Page 3 Cordial thanks for your decision in favour of a product ! is a trademark and product line of Lake People electronic GmbH. Lake People electronic GmbH develops, manufactures and distributes products in the professional range, for broadcast, television, airports, exhibition halls, festival venues, theatres, large-scale installations, private studios and more.
- Page 4 's and Lake People's full technical support even when warranty has expired. Any technical questions or need for advice is welcome. is a subsidiary of LAKE PEOPLE electronic GmbH Turmstrasse 7a D-78467 Konstanz Fon +49 (0) 7531 73678 Fax +49 (0) 7531 74998 www.violectric.de www.violectric.com www.lake-people.de www.lake-people.com...
-
Page 5: Safety Instructions
General Safety Instructions WARNING For your protection, please read the following: Water, Liquids, Moisture: This appliance should not be used near water or other sources of liquids. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. - Page 6 Mains Fuse: The mains fuse of this appliance is soldered in place and accessible from the inside only!! A blown fuse may indicate an internal problem and should be replaced during qualified servicing or repair work !! Switchable Power Supply: Connect this unit to the power source indicated on the equipment rear panel only to ensure safe operation !! This unit is provided with an internally settable mains supply for 115 / 230 V AC.
-
Page 7: The Earth / Grounding Concept
The Earth / Grounding Concept General GROUND-LIFT Jumper (accessible from the inside. Mind the SECURITY INSTRUCTIONS !! ): Ex-works this jumper is set to the LIFT position. The internal ground potential is “lifted” by means of this jumper. As a result, the interconnection for DC voltages and lower frequencies (<... -
Page 8: Connection / Connectors
Unfortunately there is no general recommendation how to solve hum and jitter problems - or even minimize them. The best way to succeed is to check different options !! Electrical safety is always ensured, since the earth conductor is permanently connected to the enclosure !! Please note that with jumpers not in the ex-works position EMC emission might occur, for which the user is responsible only ! -
Page 9: General
During design, high emphasis was put on operational safety even when the unit is operated inappropriately. The HPA V90 is equipped with internal filters to prevent damage to the connected headphones due to high-frequency overload beyond the... - Page 10 THE CASE The HPA V90's case as well as the front/rear panels are made of solid aluminium. This choice of material ensures high mechanical stability and resistance. EARTH AND GROUND The HPA V90's case is grounded. Internal reference ground is bridged to protective earth by means of a jumper.
- Page 11 This value is reduced to +15/+9 dBu if PRE-GAIN is set to +6/+12 dB !! THE ACTIVE FEED-THROU Your HPA V90 offers the opportunity of having dedicated outputs for the refreshed input signals which can so be used for further purposes.
- Page 12 … owners of high-effectivity headphones will rarely set the volume control higher than 9 o'clock in order to exclude hearing damage, while ... the maximum setting may still be too soft for low-efficiency headphones, but … all users expect highest quality at lowest noise and distortion. Thus, the circuitry must adapt itself as the headphone won't ! PRE-GAIN WE CALL THE SOLUTION TO THIS PROBLEM...
-
Page 13: Operation
"-6dB" (half gain) or "-12dB" (quarter gain) in upward direction. If you find your HPA V90 should provide more gain, do so with the switch labelled "+6 dB" (double gain) or "+12 dB" (quadruple gain). -
Page 14: Volume Control
Overall gain is set to +8 dB in order to provide sufficient reserves also for high-impedance headphones. THE HEADPHONE OUTPUTS The HPA V90 offers two stereophonic headphone outputs, each equipped with a 1/4" (6.3mm) jack socket. Headphone socket pinout:... -
Page 15: Special Functions
Special functions Please note: In the following, the internal settings of the HPA V90 are discussed. For changing these, a TORX T10 screwdriver is required and you should by all means PULL THE MAINS PLUG !!! Only thereafter the settings can be altered without any hazard. -
Page 16: Things To Know
Things to know … The HPA V90 offers unbalanced inputs. The input signals are fed to buffer amplifiers - for left and right channel separately - which also provide the PRE-GAIN setting. Your HPA V90 also offers an active feed-throu with dedicated buffering amplifiers. - Page 17 The headphone achieves 114dB sound pressure level. The HPA V90 is DC-coupled, i.e. it can transduce DC voltage as well. For good measure, a low-cut filter can be inserted by setting the corresponding jumpers.
- Page 18 In order to transmit these frequencies at optimum quality, the frequency response of an amplifier should be as wide and as "flat" as possible. At the low end of the scale, this limit is represented by DC, as there is no frequency lower than zero.
- Page 19 Extremes in this sense are the AKG K1000 with 74dB/mW on the one hand, and the Sennheiser HD25 with108 dB/mW on the other hand: The K1000 requires 2500 times the power to achieve the same sound pressure as the HD25. There is also the fact that headphones with high impedance usually require much higher voltage to achieve high loudness.
-
Page 20: Disposal
DISPOSAL Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. -
Page 21: Technical Data
TECHNICAL DATA HPA V90 All Measurements RMS unwtd., 20 Hz - 20 kHz, Pre-Gain set to 0 dB, Highpass active Inputs: 2 x Cinch, unbalanced Max. Input Voltage: + 21 dBu, Impedance 10 kOhms Input Impedance: 10 kohms Buffered Outputs:... -
Page 23: Conformity Statement
CONFORMITY STATEMENT We herewith declare that the following unit Name: VIOLECTRIC HPA V90 Serial No. : -all - is in conformity with the following EC directives: 2006/95 EG Low voltage directive 2004/108 EG Electromagnetic compatibility EN 60065 Security directives for audio-,... -
Page 24: Warranty
WARRENTY Since 1986 we are constructing and manufacturing sophisticated electronics for ambitious customers. Since the early beginnings we are trying hard by accompanying measures, the use of 1st choice components and multiple quality checks during production to avoid faults at large. We are quiet effective in that and this is –...
