Summary of Contents for Violectric DHA V226

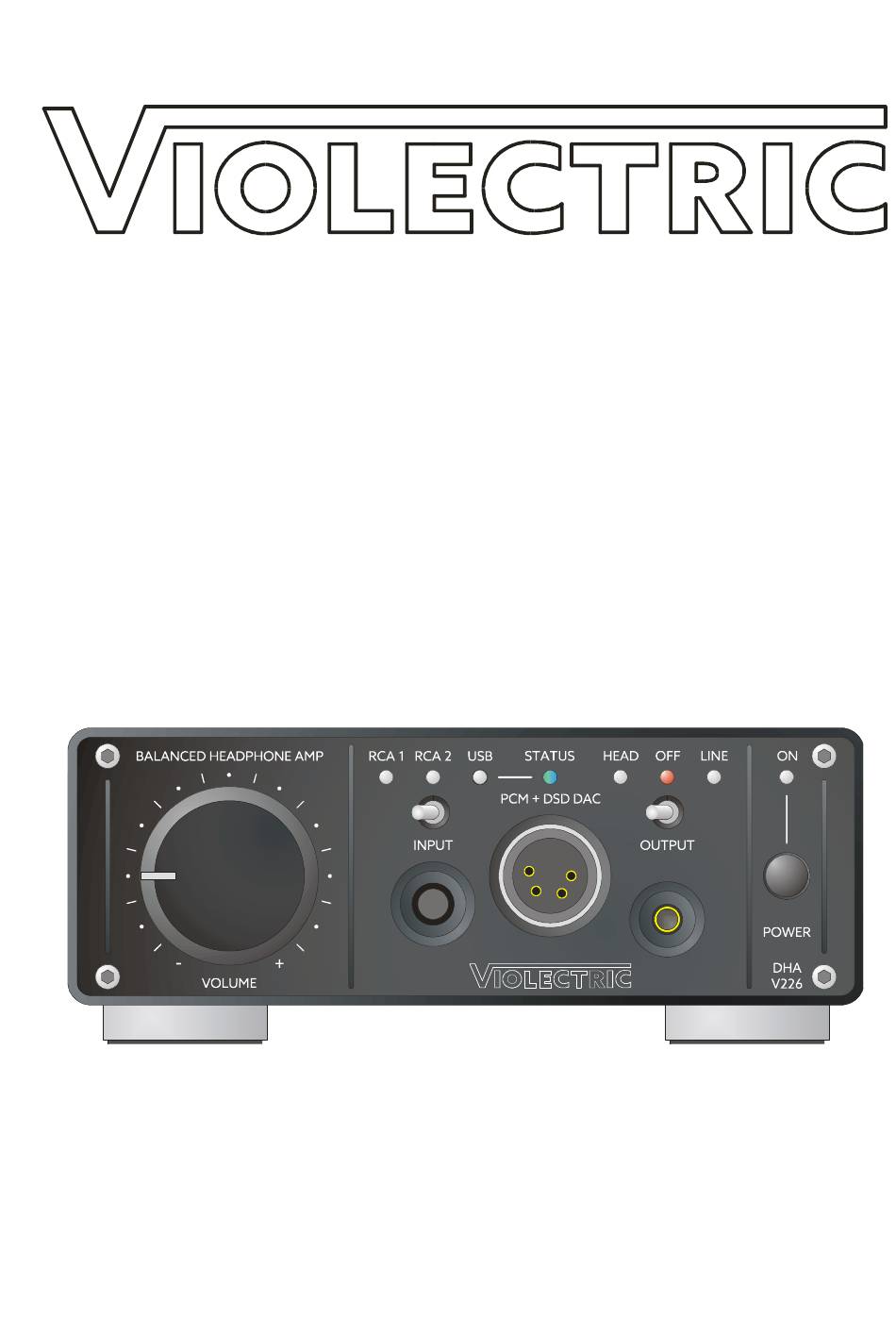

- Page 1 HEADPHONE AMPLIFIER with D/A onverter Violectric DHA V226 USER´s MANUAL...
- Page 2 User´s Manual DHA V226, November 2021, F. Reim...
-
Page 3: Table Of Contents
Line Outputs, Pre / Post Setting Error Reporting Things to Know Disposal Technical Data Dismantling, Jumper Settings Conformity Statement Warranty CAUTION !! THE HIGH OUTPUT LEVELS ACHIEVABLE WITH THIS UNIT MAY DAMAGE YOUR HEARING OR THE HEADPHONES User´s Manual DHA V226, November 2021, F. Reim... -
Page 4: About
People electronic GmbH or contractors in the company's vicinity. Lake People - and by association put high emphasis on domestic manufacturing. As well, all component suppliers are chosen in order to achieve the main part of added value inland. User´s Manual DHA V226, November 2021, F. Reim... - Page 5 LAKE PEOPLE electronic GmbH Turmstrasse 7a D-78467 Konstanz Fon +49 (0) 7531 73678 Fax +49 (0) 7531 74998 Mail: info@lake-people.de www.violectric.de www.violectric.com www.lake-people.de www.lake-people.com User´s Manual DHA V226, November 2021, F. Reim...
-
Page 6: Safety Instructions
WHITE PROTECTIVE EARTH GREEN+YELLOW GREEN U.K. Mains Plug Warning: A moulded mains plug that has been cut off from the cord is unsafe. Discard the mains plug at a suitable disposal facility. User´s Manual DHA V226, November 2021, F. Reim... - Page 7 User´s Manual DHA V226, November 2021, F. Reim...
-
Page 8: The Earth / Grounding Concept
The Earth / Grounding Concept User´s Manual DHA V226, November 2021, F. Reim... - Page 9 Please note that with jumpers not in the ex-works position EMC emission might occur, for which the user is responsible only! So, only change these settings when you know what you are doing! User´s Manual DHA V226, November 2021, F. Reim...
-
Page 10: General
GENERAL INFORMATION VIOLECTRIC DHA V226 contains an excellent D/A Converter, a first- class Preamplifier and a high-grade stereo balanced Headphone Amplifier designed to drive low-, medium- and high-Z loads (16...600 ohms) as usually represented by high-quality headphones. Because of its four built-in amplifiers and both front mounted balanced headphone sockets (4-pin XLR and 4.4 mm Pentaconn) it is... - Page 11 THE CASE of VIOLECTRIC DHA V226 is made of 4 mm Aluminum and a thick 5 mm aluminum front panel. This choice of material ensures high mechanical stability and resistance whilst maintaining a high optical and haptic quality.
- Page 12 GROUND AND PROTECTIVE EARTH The case of VIOLECTRIC DHA V226 is connected to protective earth. POWER SUPPLY Mains power is provided via a three-pin IEC/CEE socket and mating "cold-appliance" mains cord with Schuko-type plug for units purchased in middle Europe.
-
Page 13: Block Circuitry
Block circuitry VIOLECTRIC DHA V226 User´s Manual DHA V226, November 2021, F. Reim... -
Page 14: Operation: Power , Inputs
USB 2.0 - PCM signals up to 32 bit and up to 384 kHz as well as DSD 64 – 256 data is accepted here. The USB interface is in no need of drivers for PCs Laptops, tables or smart phones. User´s Manual DHA V226, November 2021, F. Reim... - Page 15 PCM signals or blue for DSD signals as long as an appropriate digital signal was detected. When there is no signal on these inputs or a non-valid signal, these LEDs will stay dark and the outputs are muted. User´s Manual DHA V226, November 2021, F. Reim...
-
Page 16: D/A Converters
THE DIGITAL to ANALOGUE CONVERTER (D/A Converter) inside DHA V226 is the Cirrus Logic CS43131. It is a high performance 32-bit solution designed for Audiophile and Studio equipment applications. PCM data up to 384 kHz and DSD 64 – 256 is accepted. - Page 17 PRE-GAIN WE CALL THE SOLUTION TO THIS PROBLEM A single amp of DHA V226 has only little gain (gain = +2,5 dB = factor 1,25). In case a balanced headphone is connected two amps are active with a combined gain of +8 dB (factor 2,5).
- Page 18 PRE-GAIN settings +6 / +12 / +18 dB to achieve more gain (factor 2 / 4 / 8). Other than the above settings are not useful but harmless. User´s Manual DHA V226, November 2021, F. Reim...
-
Page 19: Volume, Outputs
Moving the "OUTPUT" switch to the "LINE" position will activate the rear line outputs. The white LED shows the activated state. Moving the "OUTPUT" switch to the middle position will deactivate all outputs (mute). The red LED shows this state. User´s Manual DHA V226, November 2021, F. Reim... -
Page 20: Headphone Connectors
R3 (Ring 3) (-) Right channel S (Sleeve) Ground 4-pin XLR Socket: Pin 1 (+) Left channel Pin 2 (-) Left channel Pin 3 (+) Right channel Pin 4 (-) Right channel User´s Manual DHA V226, November 2021, F. Reim... -
Page 21: Line Outputs, Pre / Post Setting
Here, the input signal is routed directly to the line outputs without any alteration from the volume attenuator. If you like to operate your DHA V226 as pre-amp device to drive some active speakers or power amps, then “POST-FADER” or “VARIABLE OUT”... -
Page 22: Error Reporting
ERROR REPORTING: To ensure error-free operation and not to harm your valuable headphones in a comprehensive way your VIOLECTRIC DHA V226 is equipped with some protective circuits: During powering on there is a five second delay to protect your headphones from possibly unwholesome noises. - Page 23 Why does PRE-GAIN make sense? Two extreme examples (with the DHA V226 with +2 dB gain (factor 1,25), volume control set to full): 1st example: The (pre-) amplifier provides 8 V output voltage, whereas the headphone requires only 2 V for 100 dB sound pressure level.
- Page 24 Conductive-plastic resistive tracks, high-quality multi-tap wipers and separated chambers for the individual sections are highly desirable for sophisticated applications, and high quality is inevitable to ensure trouble-free operation for years. Since the market for really good pots is User´s Manual DHA V226, November 2021, F. Reim...
- Page 25 Due to the high supply voltage and the balanced operation mode of DHA V226 you will benefit from far over two times more output voltage swing capability compared to single ended amps...
- Page 26 The relay breaks the connection between amplifier and headphone for some seconds after power-on and thus protects the latter until electrical conditions have stabilized. User´s Manual DHA V226, November 2021, F. Reim...
-
Page 27: Disposal
The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. User´s Manual DHA V226, November 2021, F. Reim... -
Page 28: Technical Data
230 V AC / 115 VAC max. 15 VA Case, Front, Back: Aluminium Case Dimensions: 165 x 54 x 228 mm B x H) Overall Dimensions: 170 x 49 x 306 mm (B x H x T) User´s Manual DHA V226, November 2021, F. Reim... -
Page 29: Dismantling, Jumper Settings
Dismantling Screw off two upper screws from the front panel Screw off two upper from the back panel Lift the upper case and make your settings Assemble the unit in opposite order User´s Manual DHA V226, November 2021, F. Reim... -
Page 30: Conformity Statement
2012/19/EU, WEEE Richtlinie (Mitgliedsnummer DE 26076388) Für diese Erklärung ist der Hersteller verantwortlich: LAKE PEOPLE electronic GmbH Turmstrasse 7a D-78467 Konstanz Fon +49 (0) 7531 73678 Fax +49 (0) 7531 74998 Konstanz 04.11.2021 Fried Reim Geschäftsführer User´s Manual DHA V226, November 2021, F. Reim... -
Page 31: Warranty
We will grant a quick repair and quick return of the unit. In case of a warranty repair we will reship free of charge. Please denote here the serial number and the date of purchase: Serial Number Date of Purchase User´s Manual DHA V226, November 2021, F. Reim... - Page 32 User´s Manual DHA V226, November 2021, F. Reim...
