Summary of Contents for Violectric PRE V630

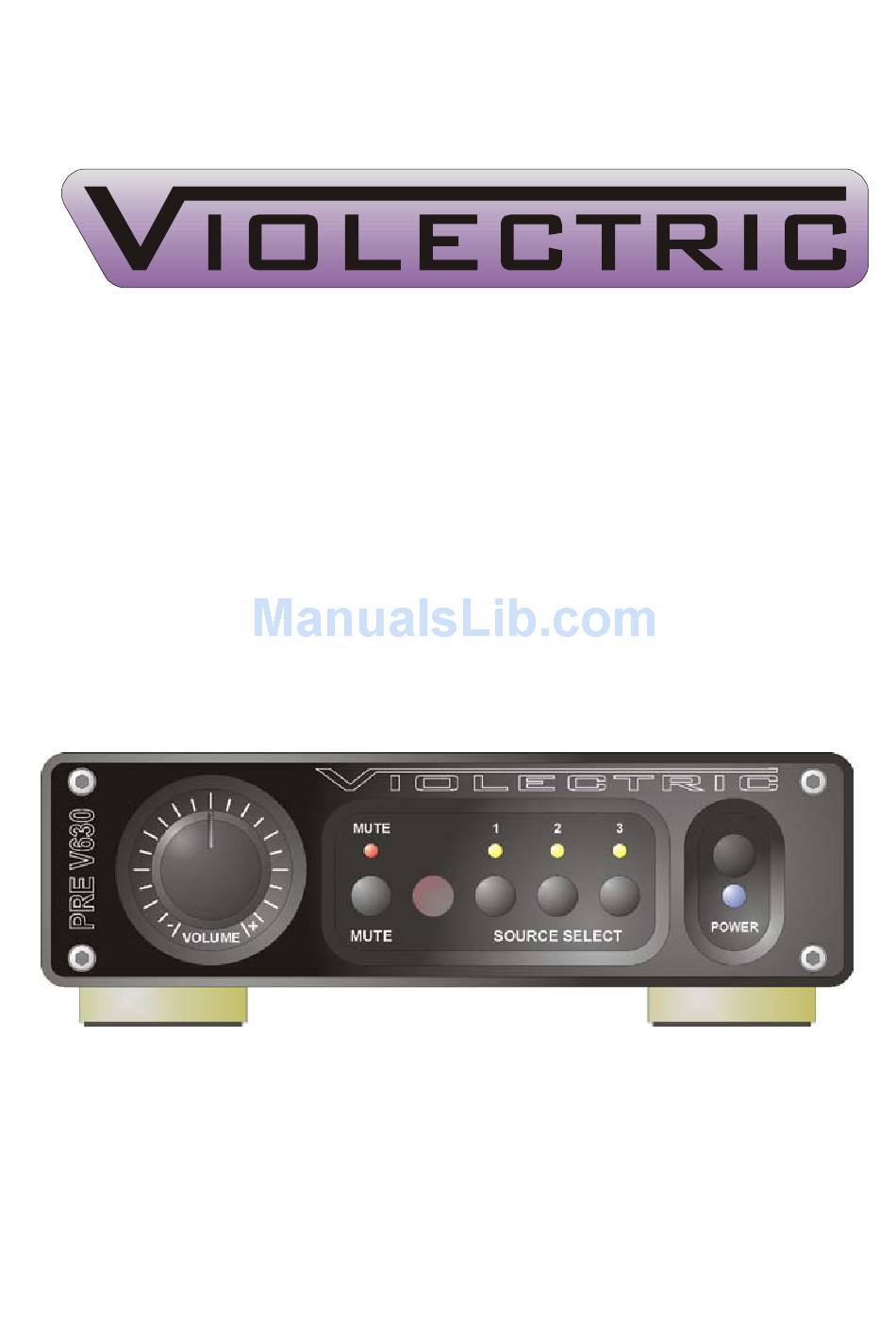

- Page 1 Line Signal PRE-AMPLIFIER PRE V630 USER´s MANUAL...
-
Page 2: Table Of Contents
Content Theme Page About Violectric Safety Instructions The Earth / Grounding Concept Connection / Connectors General Opening the Case / Dismantling Disposal Technical Data Technical Appendix / Jumper Setting Conformity Statement Warranty... -
Page 3: About Violectric
Cordial thanks for your decision in favour of a product ! is a trademark and product line of Lake People electronic GmbH. Lake People electronic GmbH develops, manufactures and distributes products in the professional range, for broadcast, television, airports, exhibition halls, festival venues, theatres, large-scale installations, private studios and more. - Page 4 's and Lake People's full technical support even when warranty has expired. Any technical questions or need for advice is welcome. is a subsidiary of LAKE PEOPLE electronic GmbH Turmstrasse 7a D-78467 Konstanz Fon +49 (0) 7531 73678 Fax +49 (0) 7531 74998 www.violectric.de www.violectric.com www.lake-people.de www.lake-people.com...
-
Page 5: Safety Instructions
General Safety Instructions WARNING For your protection, please read the following: Water, Liquids, Moisture: This appliance should not be used near water or other sources of liquids. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. - Page 6 Mains Fuse: The mains fuse of this appliance is soldered in place and accessible from the inside only!! A blown fuse may indicate an internal problem and should be replaced during qualified servicing or repair work !! Switchable Power Supply: Connect this unit to the power source indicated on the equipment rear panel only to ensure safe operation !! This unit is provided with an internally settable mains supply for 115 / 230 V AC.
-
Page 7: The Earth / Grounding Concept
The Earth / Grounding Concept General GROUND-LIFT Jumper (accessible from the inside. Mind the SECURITY INSTRUCTIONS !! ): Ex-works this jumper is set to the LIFT position. The internal ground potential is “lifted” by means of this jumper. As a result, the interconnection for DC voltages and lower frequencies (<... - Page 8 Unfortunately there is no general recommendation how to solve hum and jitter problems - or even minimize them. The best way to succeed is to check different options !! In case of balanced cables, it should always been verified if the shield of the cable is connected to the shell of the XLR connector.
-
Page 9: Connection / Connectors
Connection / Connectors for Analog Signals... -
Page 10: General
GENERAL The PRE V630 is a high-quality, two-channel preamplifier for line level signals. It offers 3 unbalanced stereo inputs, a high performance volume control and balanced as well as unbalanced stereo outputs. The maximum output level can be adapted internally in many ways, additionally the unbalanced output can be set for pre- or post fader operation. -
Page 11: Power Supply
THE CASE The PRE V630's case as well as the front/rear panels are made of solid aluminium. This choice of material ensures high mechanical stability and resistance. EARTH AND GROUND The PRE V630's case is grounded. Internal reference ground is bridged to protective earth by means of a jumper. -
Page 12: Unbalanced Inputs
UNBALANCED INPUTS For the use with unbalanced signals, gold plated cinch sockets are provided. They are labelled in the field "ANALOG INPUTS" as "L/R” and "1 / 2 / 3". Here, unbalanced sources with a level of up to +24 dBu may be connected. -
Page 13: Input Selection
INPUT SELECTION The activating of an input is internally made by means of relais. This process is controlled by the front mounted buttons labled "SOURCE SELECT 1 / 2 / 3 ". The activated input is shown by the corresponding yellow LED, marked with "1 / 2 / 3". - Page 14 At last the signal reaches the output drivers which may be set to different output levels. THE UNBALANCED OUTPUTS are situated on the rear panel of PRE V630 in the field "ANALOG OUTPUTS " and denoted as "UNBAL L/R". They are equipped with gold plated cinch sockets.
- Page 15 Ex works the unbalanced outputs are set to “Post Fader” state. The output level from the unbalanced outputs may be set to –6 / 0 / +6 dB by means of the dedicated dip switches. This ratios is relative to the input signal and fully open volume control.
-
Page 16: Opening The Case / Dismantling
DISMANTLING / JUMPER SETTINGs In order to change any DIP switch or jumper settings inside the PRE V630, its case must be opened. For this purpose, a TORX screwdriver T10 or 3mm allen key is required, and you should - by all means - PULL THE MAINS PLUG !!! after which any setting procedures can be effected without risk. -
Page 17: Technical Data
TECHNICAL DATA PRE V630 All measurements RMS unwtd., 20 Hz - 20 kHz if not otherwise noted Inputs: 3 x 2 Cinch, unbalanced Max. input voltage: +24 dBu Input impedance: 50 kOhm Gain (unbal. output): -6 / 0 / +6 dB Gain (bal. -
Page 19: Conformity Statement
CONFORMITY STATEMENT We herewith declare that the following unit Name: VIOLECTRIC PRE V630 Serial No. : -all - is in conformity with the following EC directives: 2006/95 EG Low voltage directive 2004/108 EG Electromagnetic compatibility EN 60065 Security directives for audio-,... -
Page 20: Warranty
WARRENTY Since 1986 we are constructing and manufacturing sophisticated electronics for ambitious customers. Since the early beginnings we are trying hard by accompanying measures, the use of 1st choice components and multiple quality checks during production to avoid faults at large. We are quiet effective in that and this is - amongst others - why we enjoy such a good reputation.
