Summary of Contents for Violectric HPA V202

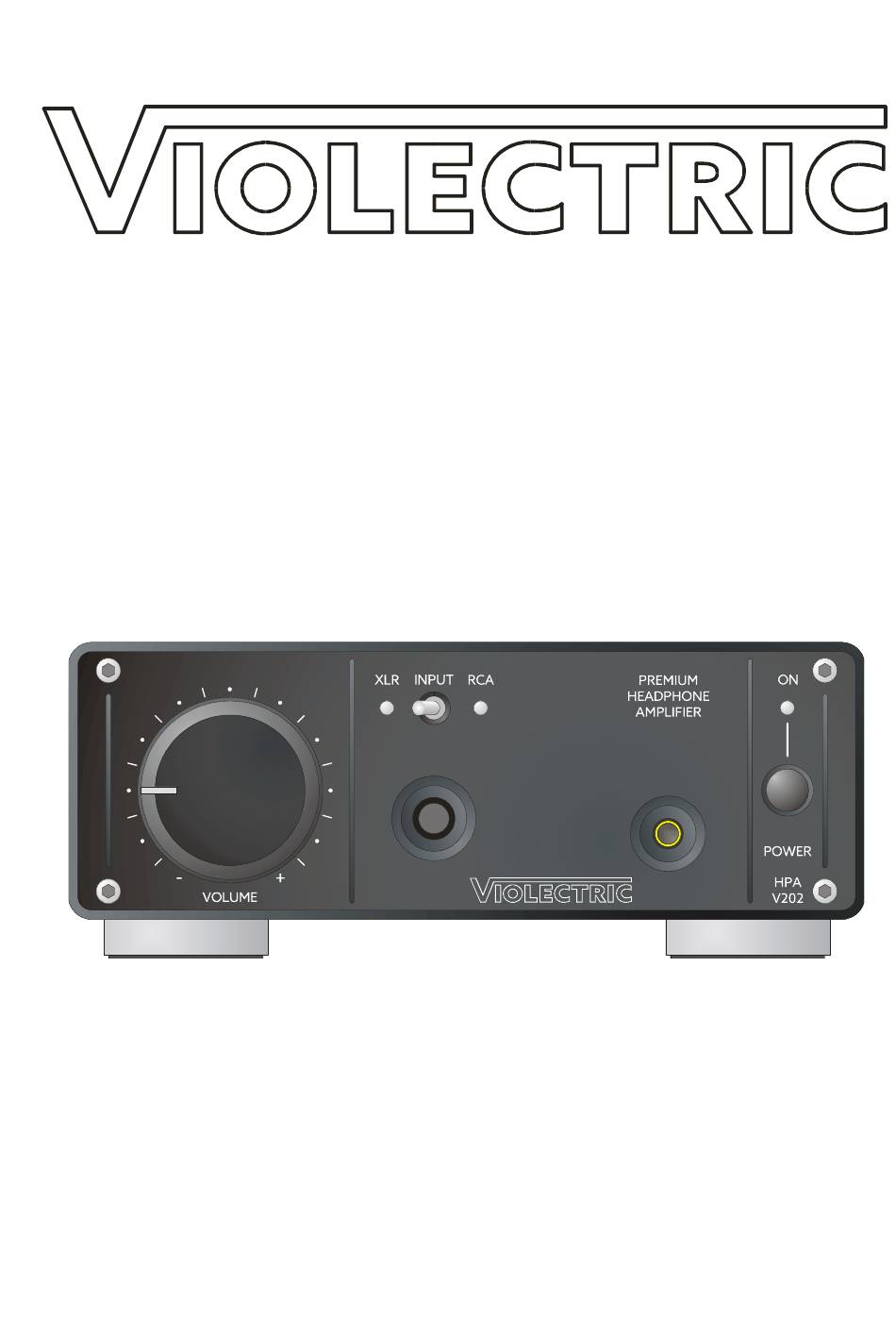

- Page 1 HEADPHONE AMPLIFIER Violectric HPA V202 USER´s MANUAL...
- Page 2 User´s Manual HPA V202, October 2022, F. Reim...
-
Page 3: Table Of Contents
About PRE-GAIN Protective Measures Headphone Outputs Things to Know Disposal Technical Data Dismantling, Jumper Settings Warranty CAUTION !! THE HIGH OUTPUT LEVELS ACHIEVABLE WITH THIS UNIT MAY DAMAGE YOUR HEARING OR THE HEADPHONES User´s Manual HPA V202, October 2022, F. Reim... -
Page 4: About
People electronic GmbH or contractors in the company's vicinity. Lake People - and by association put high emphasis on domestic manufacturing. As well, all component suppliers are chosen in order to achieve the main part of added value inland. User´s Manual HPA V202, October 2022, F. Reim... - Page 5 LAKE PEOPLE electronic GmbH Turmstrasse 7a D-78467 Konstanz Fon +49 (0) 7531 73678 Fax +49 (0) 7531 74998 Mail: info@lake-people.de www.violectric.de www.violectric.com www.lake-people.de www.lake-people.com User´s Manual HPA V202, October 2022, F. Reim...
-
Page 6: Safety Instructions
WHITE PROTECTIVE EARTH GREEN+YELLOW GREEN U.K. Mains Plug Warning: A moulded mains plug that has been cut off from the cord is unsafe. Discard the mains plug at a suitable disposal facility. User´s Manual HPA V202, October 2022, F. Reim... - Page 7 User´s Manual HPA V202, October 2022, F. Reim...
-
Page 8: The Earth / Grounding Concept
The Earth / Grounding Concept User´s Manual HPA V202, October 2022, F. Reim... - Page 9 Please note that with jumpers not in the ex-works position EMC emission might occur, for which the user is responsible only! So, only change these settings when you know what you are doing! User´s Manual HPA V202, October 2022, F. Reim...
-
Page 10: General
GENERAL INFORMATION VIOLECTRIC HPA V202 contains a high-grade stereo Headphone Amplifier designed to drive low-, medium- and high-Z loads (16...600 ohms) as usually represented by high-quality headphones. Due to its specific, highly variable, low-noise and low distortion circuit design especially optimised for dynamic and orthodynamic headphones, HPA V202 fulfils even highest demands. -
Page 11: Operation: Case, Power Supply, Power Switch
THE CASE of VIOLECTRIC HPA V202 is made of 4 mm Aluminum and a thick 5 mm aluminum front panel. This choice of material ensures high mechanical stability and resistance whilst maintaining a high optical and haptic quality. -
Page 12: Mains Fuse
The unit is put into operation by means of the power switch. The power-on procedure takes about 5 seconds. Any breakdown will cause the headphone outputs to be switched off to protect the headphones. User´s Manual HPA V202, October 2022, F. Reim... -
Page 13: Block Circuitry
Block circuitry VIOLECTRIC HPA V202 User´s Manual HPA V202, October 2022, F. Reim... -
Page 14: Operation: Inputs, Amplifiers, Volume
The frequency range covers 5 Hz ... 250 kHz (-0.5 dB) in order to ensure fully linear performance within the entire audible User´s Manual HPA V202, October 2022, F. Reim... -
Page 15: About Pre-Gain
Too loud ? Too soft ? The PRE-GAIN method The VIOLECTRIC HPA V202 is specially designed to drive headphones. To do so it is placed between up to two analogue sources and the headphones. - Page 16 PRE-GAIN WE CALL THE SOLUTION TO THIS PROBLEM A single amp of HPA V202 has a gain of +8 dB (factor 2,5). By this measure the amps will produce an extremely low self- generated noise which can hardly been heard even with highest sensitive in-ear-monitors (IEM).
- Page 17 HOW TO OPTIMIZE THE PRE-GAIN SETTING: Connect your source to VIOLECTRIC HPA V202 and plug in your headphones. Listen !! Your amp is adjusted best by the individual PRE-GAIN setting when the volume control for “normal” listening is positioned around 12 o´clock.
-
Page 18: Protective Measures
PRE-GAIN - which should be sufficient for most applications. PROTECTIVE MEASURES: To ensure error-free operation and not to harm your valuable headphones in a comprehensive way your VIOLECTRIC HPA V202 is equipped with some protective circuits: During powering on there is a five second delay to protect your headphones from possibly unwholesome noises. -
Page 19: Headphone Outputs
Why makes it sense to make such huge efforts? A headphone amplifier is a device designed to condition audio signals with regards to the very specific requirements of headphones. This doesn't sound too spectacular at the first glance User´s Manual HPA V202, October 2022, F. Reim... - Page 20 Why does PRE-GAIN make sense? Two extreme examples (with the HPA V202 with +8 dB gain = factor 2,5, volume control set to full): User´s Manual HPA V202, October 2022, F. Reim...
- Page 21 At the low end of the scale, this limit is represented by DC, as there is no frequency lower than zero. In upward direction, the limit can be set to practically any frequency, but the higher, the more susceptible the device becomes concerning electro-magnetic User´s Manual HPA V202, October 2022, F. Reim...
- Page 22 Since there is no known technical specification, we define the load (voice coil impedance) as 50 Ohms. With HPA V202 having an output impedance of < 0.25 Ohms this results in a damping factor of 200.
- Page 23 (95 % of all headphone amps in the market are operated with these or even lower supply voltages). Due to the high supply voltage and the balanced operation mode of HPA V202 you will benefit from far over two times more output voltage swing capability compared to single ended amps with “standard”...
-
Page 24: Disposal
The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. User´s Manual HPA V202, October 2022, F. Reim... -
Page 25: Technical Data
230 V AC / 115 VAC max. 15 VA Case, Front, Back: Aluminium Case Dimensions: 170 x 54 x 228 mm (W x H x D) Overall Dimensions: 170 x 65 x 252 mm (W x H x D) User´s Manual HPA V202, October 2022, F. Reim... -
Page 26: Dismantling, Jumper Settings
Dismantling Screw off two upper screws from the front panel Screw off two upper from the back panel Lift the upper case and make your settings Assemble the unit in opposite order User´s Manual HPA V202, October 2022, F. Reim... -
Page 27: Warranty
We will grant a quick repair and quick return of the unit. In case of a warranty repair we will reship free of charge. Please denote here the serial number and the date of purchase: Serial Number Date of Purchase User´s Manual HPA V202, October 2022, F. Reim...
