CHANGING THE EMISSION CODE
The codes of the projector and remote control are factory
set to 00. It is advisable to change the emission code of
the Remote Control unit if several projectors are used in
close proximity to one another to avoid interaction.
To change the code, follow the steps below:
1. Open the battery compartment on the rear of the
remote control (see Figure 6). Use a small pointed
object to select a new switch position combination.
Sixteen combinations are possible.
2. Turn the power switch on the rear of the projector
to the OFF position. With the Remote Control
approximately 5 ft (1.5 m) away from the AP250's
Remote Detection Window, press the IN Program
Key while simultaneously switching on the projector.
You may require an assistant to help.
3. The AP250 will emit a short beep. Continue holding
the IN Program Key until you hear a longer beep.
The code setting is now complete.
PROGRAMMING SLIDE SEQUENCES
1 2 3 4
Switch Settings

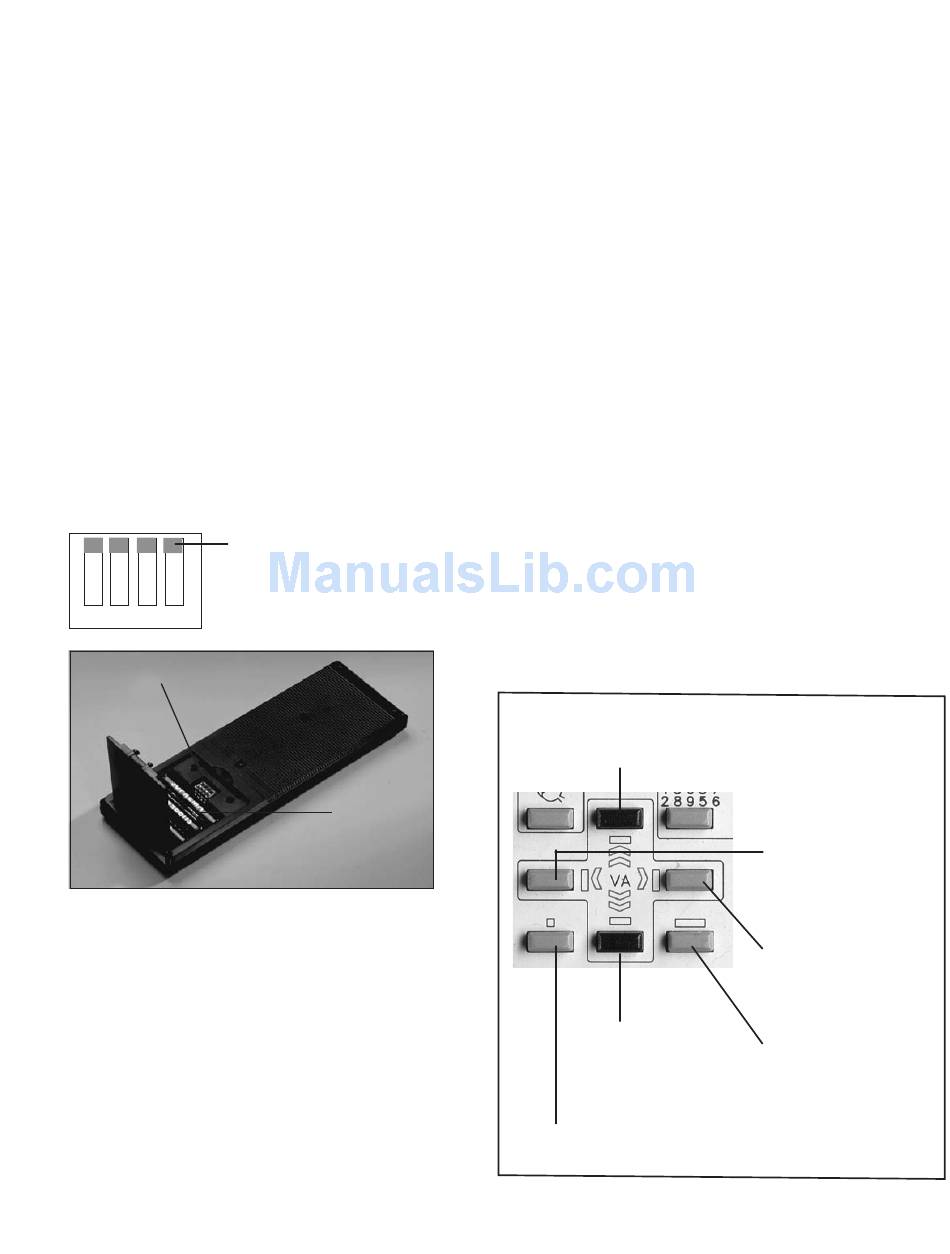

Figure 6 - Changing the Switch Settings
The AP250 can record two (2) custom slide sequences,
including masks. Follow the steps below to store, edit
and interrupt a programed slide sequence.
Storing a Slide Sequence
1. Press Program Key 1 or 2.
2. Press the IN Program Key.
3. Press the buttons of the desired slides, in the desired
order, followed by the NEXT button after each slide.
4. After pressing the final slide of the sequence, press
the OUT Program Key. The slide sequence is now
stored in the selected order as program 1 or 2.
13800-101-Rev. E
Switch UP = ON
Battery
Compartment
Using the Programed Sequence
1. Press the Program Key (1 or 2).
2. Press the NEXT or BACK Key to display the slides
within your program sequence.
Interrupting a Slide Sequence at a Defined Point
1. Press the Program Key (1 or 2) you want to interrupt.
2. Press the IN Program Key.
3. Press the NEXT Program Key until the slide appears
that you want to conclude the sequence.
4. Press the OUT Program Key. The new slide
sequence is now stored.
Editing a Stored Slide Sequence
1. Press the Program Key (1 or 2) you want to edit.
2. Press the NEXT Program Key until the slide to be
changed appears on the screen.
3. Press the IN Program Key.
4. Press the new slide.
5. Confirm the new slide selection by pressing the
NEXT Program Key.
6. Press the OUT Program Key. The new slide
sequence is now stored.

MASKING OPTIONS

The AP250's masking options allow the operator to isolate
horizontal lines, vertical lines and individual charts. See
Figure 7 below for functions of masking buttons.
APPLIES HORIZONTAL
MASK AND MOVES
MASK UPWARDS
APPLIES HORIZONTAL
MASK AND MOVES
MASK DOWNWARDS
ISOLATES INDIVIDUAL
CHARACTERS
Figure 7 - Functions of masking buttons
APPLIES VERTICAL
MASK AND MOVES
MASK TO THE LEFT
APPLIES VERTICAL
MASK AND MOVES
MASK TO THE RIGHT
TOP HORIZONTAL
MASK OR RETURN
TO FULL VIEW
