Remote Control

The AP250 is operated by an intuitive remote control that
is divided into various sections for ease of use (see figure
5). When the power switch on the back of the instrument
is in the ON position, slides can be projected by simply
pushing any button. The Lamp ON / OFF button can
be used to turn the lamp off at anytime. Otherwise, the
AP250 lamp shuts off automatically after 10 minutes of
non-use.
Program Keys
Lamp On/Off
Special Charts
Eye Diagram
Masking Options
8
Filters

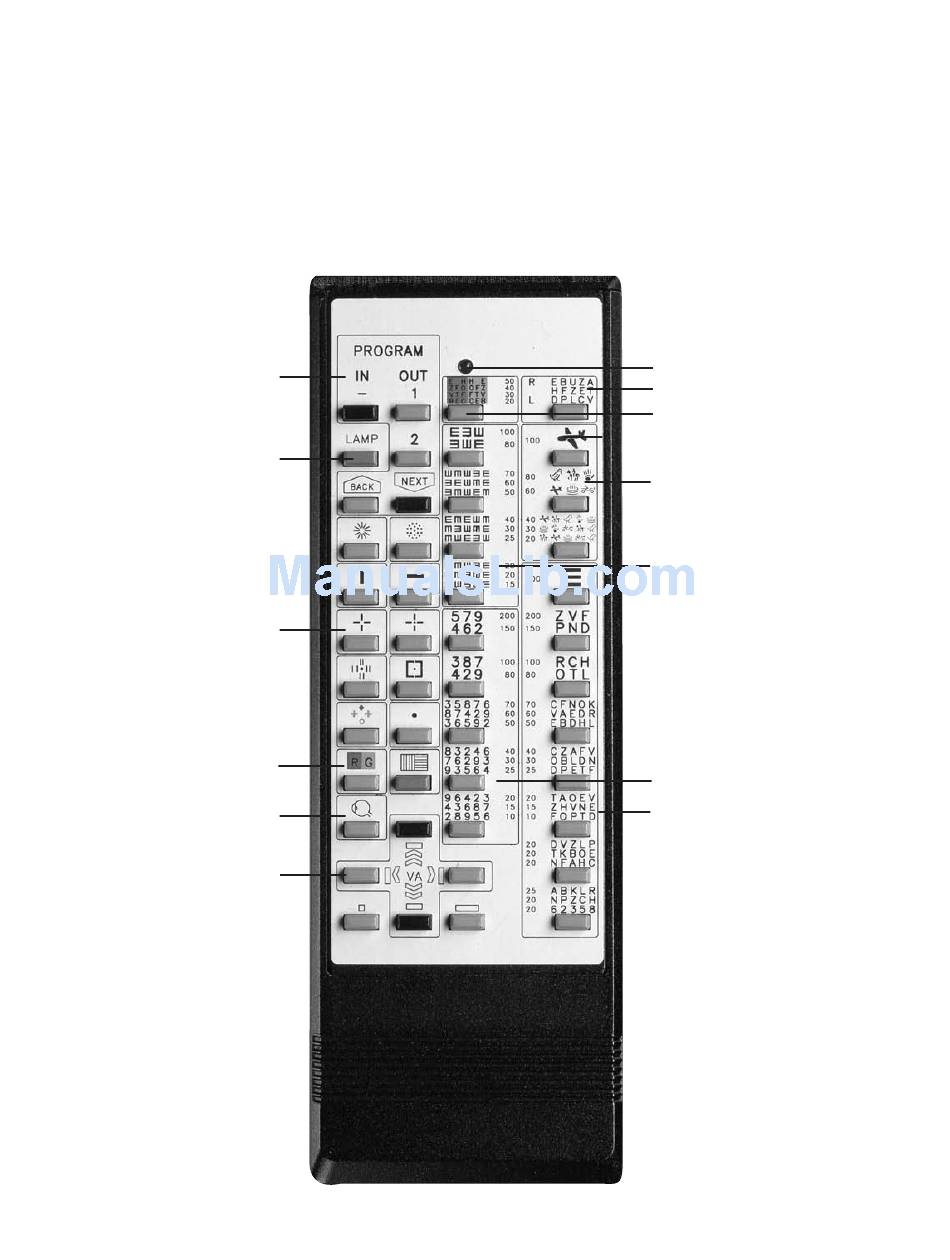

Figure 5 - Remote Control Unit
To use the AP250, simply press any button on the remote
control and the respective slide will be displayed. Red /
Green or Polarizing filters, and a variety of character / line
isolation masks can be applied to almost any chart
by pressing the appropriate buttons.
NOTE: The red indicator light flashes when pressing any
remote control function, indicating that the control
is functioning properly.
Indicator Light
Binocular Balance Test
Red/Green Test
Children Charts
Illiterate Charts
Number Charts
Letter Charts
