Introduction

Congratulations on your purchase of the AP250
Automated Projector.
In the field of subjective refraction, the AP250 is used for
measuring visual acuity.
This User's Guide is designed as a training and reference
manual. We recommend you carefully read and follow the
steps in this guide to ensure optimum performance from
your new instrument.
Please retain this guide for future reference and to share
with other users.
For additional copies or assistance with this product,
contact the Reichert Customer Service Department.
Contact information is provided on the back of this
manual.

Safety Precautions

• Except for changing the Halogen bulb and replacing
the fuses, any repair or service on the AP250 must be
performed only by authorized Reichert personnel.
• Only qualified and trained personnel should operate
the AP250.
• Training for operating personnel is the sole responsi-
bility of the owner.
• Plug the AP250 into a grounded electrical receptacle.
Do not remove cover. Otherwise, electrical shock can
occur. Do not remove or obstruct the grounded elec-
trical connection or damage to the instrument or injury
to the operator may occur.
• The line voltage setting on the AP250 power input
module should agree with the local line voltage.
Otherwise, damage to the instrument or injury to the
operator may occur.
• Do not obstruct any ventilation slots.
• Do not use the AP250 in the presence of flammable
anesthetics and volatile solvents such as alcohol,
benzine or similar agents.
• Do not set-up the instrument in humid conditions.
Avoid dripping or splashing water near the instru-
ment.
• Use only accessories specified in this manual. If
you intend to use other accessories, consult an
authorized Reichert dealer or our Customer Service
Department.
• Never look directly into the AP250's light source.
• Disconnect the power cable prior to replacing the
AP250's Halogen bulb. Allow the lamp to cool-down
before touching or injury (burning) may occur.
4
110 V / 230 V Operation
To ensure proper operation, check the fuse voltage setting
on the power input module. The factory setting is

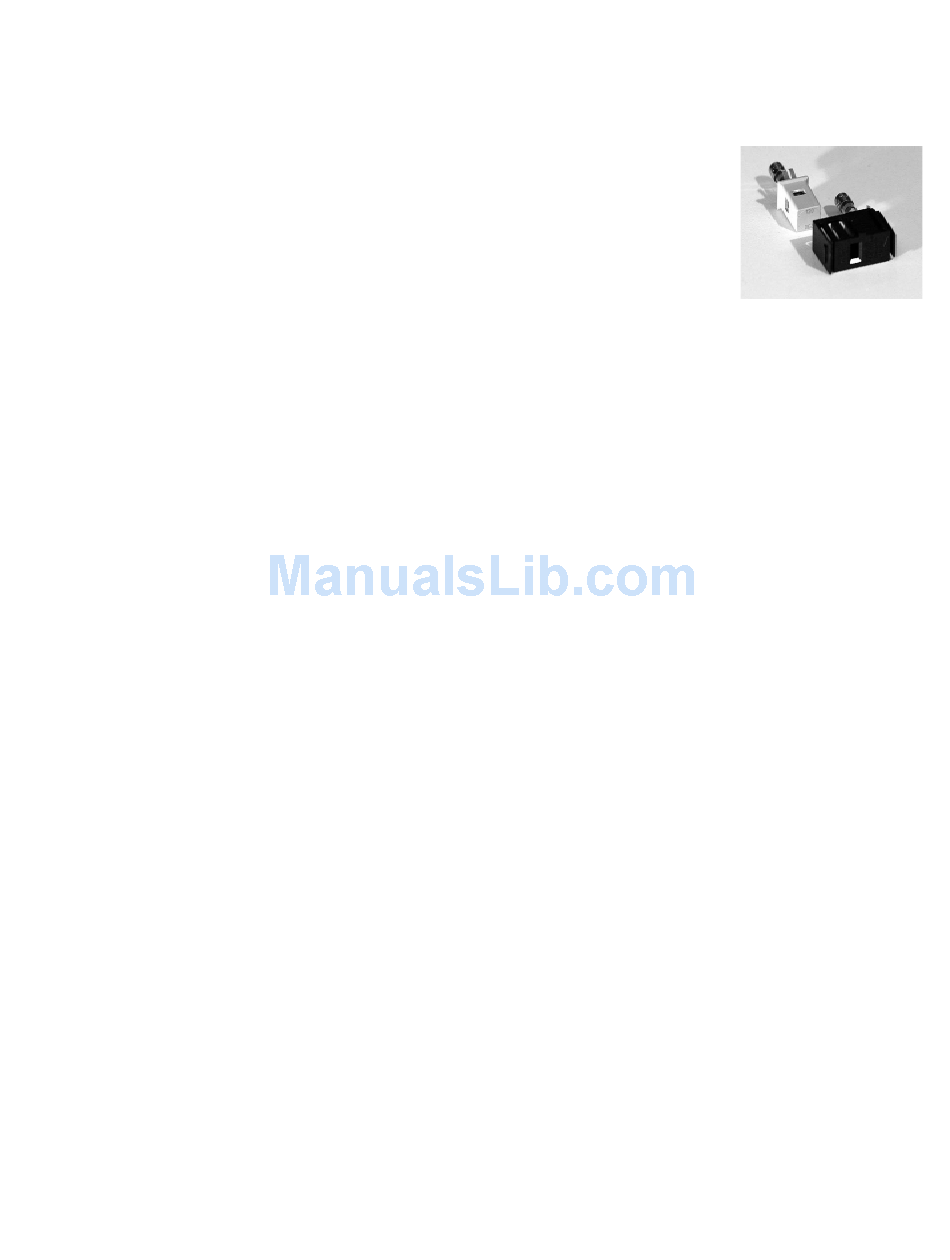

If 230 V operation is desired,
remove the fuse holder and pull
out the white plasitc insert. Rotate
the insert so "230" appears in the
window when inserted in the fuse
holder. Remove the 500 mA fuses
and replace them with 250 mA
fuses. See page 14 for fuse types.
Install the fuse holder in
the power input connector.

Package Contents

Your new AP250 Automated Projector and accessories
were carefully packed and checked prior to shipment;
however, please check condition and contents upon
delivery. In addition to your AP250, this shipment
should include:
1 Spare Halogen Bulb
1 Power Cord
1 Dust Cover
1 Remote Control
2 Hexagon Keys (3 mm and 5 mm)
2 Spare Fuses 500 ma (110 V)
2 Spare Fuses 250 ma (230 V)
1 Pair of red/green spectacles
1 Pair of polarizing spectacles
4 AAA-sized batteries
1 Wall mount (2 pieces)
1 Screen

Accessories

13813 Flange Style Halogen Bulb ( pre S/N 10897-02)
13806 2-Pin Halogen Bulb (post S/N 10896-02)
13816 Remote Control
13814 Red / Green Spectacles
13815 Polarizing Spectacles
4013110 Dust Cover
11808 Projection Screen
12090 Table Mount
12091 Wall Mount
12092 Instrument Stand Mount
12096 Floor Stand Mount
