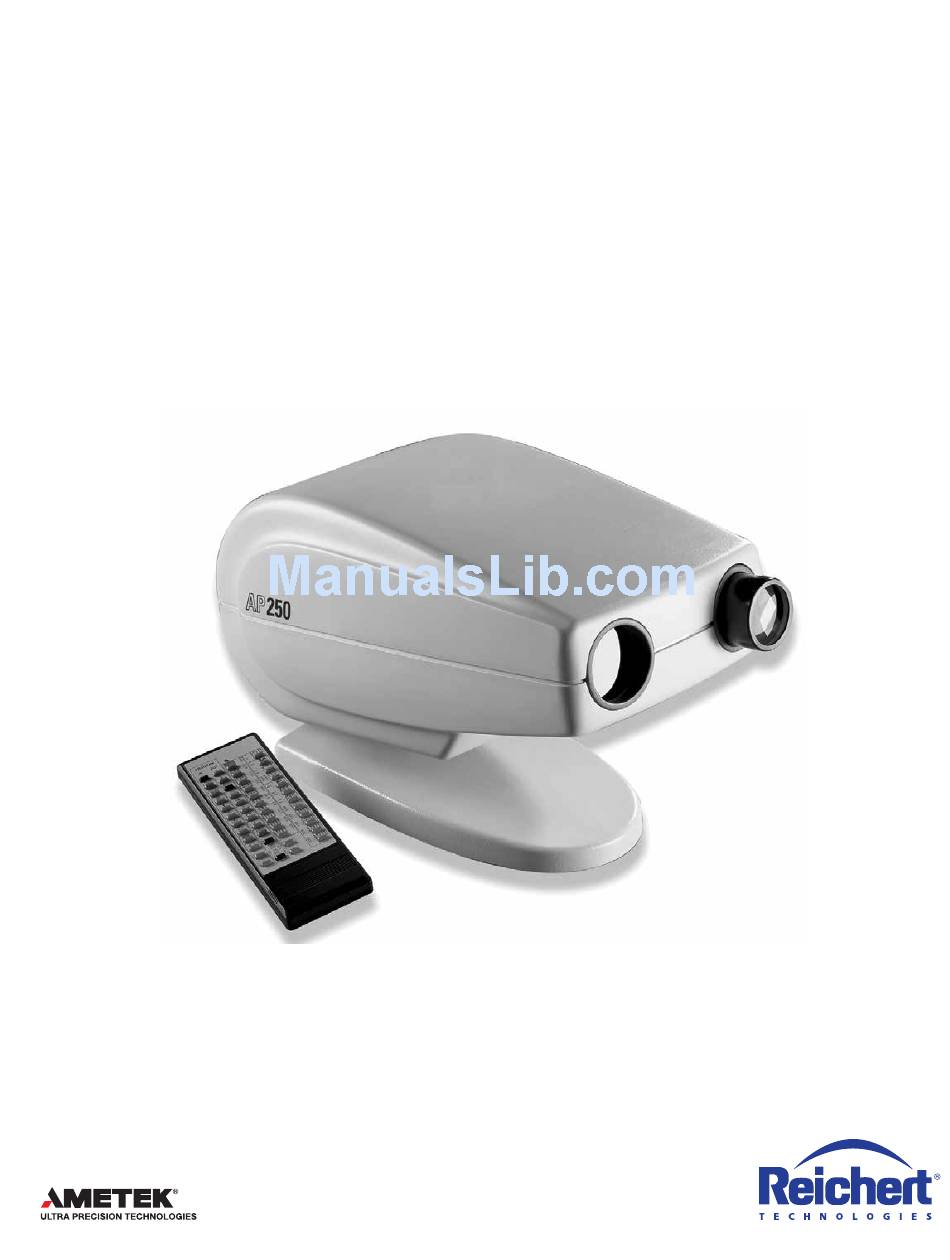

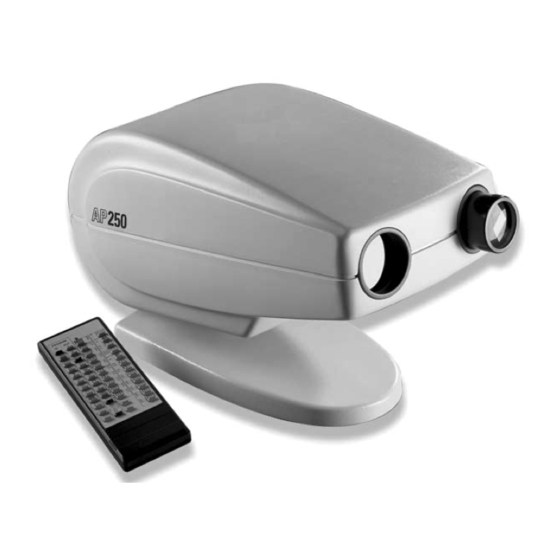

- Page 1 AP250 Automated Chart Projector User’s Guide...
- Page 2 All other trademarks are property of their respective owners. The information contained in this document was accurate at time of publication. Specifications subject to change without notice. Reichert, Inc. reserves the right to make changes in the product described in this manual without notice and without incorporating those changes in any products already sold.
-
Page 3: Table Of Contents
Cleaning & Maintenance ................15 Cleaning .................... 15 Changing the Halogen Bulb .............. 15 Changing the Remote Control Batteries ..........15 Changing the Voltage/Replacing Fuses ..........15 Specifications ................... 16 Classifications ..................17 Appendix A ....................18 Reichert Product Warranty ..............20 13800-101-Rev. F... -
Page 4: Warnings & Cautions
WARNING: DO NOT REPAIR OR SERVICE THIS INSTRUMENT WITHOUT AUTHORIZATION FROM THE MANU- FACTURER. ANY REPAIR OR SERVICE TO THIS INSTRUMENT MUST BE PERFORMED BY EXPERIENCED PERSONNEL OR DEALERS WHO ARE TRAINED BY REICHERT OR SERIOUS INJURY TO THE OPERATOR OR PATIENT MAY OCCUR. - Page 5 MENT. CAUTION: THIS INSTRUMENT IS NOT INTENDED TO BE CONNECTED TO EQUIPMENT OUTSIDE THE CON- TROL OF REICHERT TECHNOLOGIES OR MUST BE TESTED TO AN APPLICABLE IEC OR ISO STANDARDS. CAUTION: NEVER LOOK DIRECTLY INTO THE AP250'S LIGHT SOURCE. CAUTION: DISCONNECT THE POWER CABLE PRIOR TO REPLACING THE AP250'S HALOGEN BULB. ALLOW THE LAMP TO COOL-DOWN BEFORE TOUCHING OR INJURY (BURNING) MAY OCCUR.
-
Page 6: Symbol Information
Symbol Information Symbol Information The following symbols appear on the instrument: Caution symbol indicating important operating and maintenance instructions that are included in this User’s Guide Type B Applied Part Accompanying Documents must be consulted Alternating Current Power Protective Earth Connection ON / OFF Date of Manufacture 2015... -
Page 7: Introduction
Introduction Congratulations on the purchase of your new AP250 Automated Chart Projector from Reichert Technologies ® This user’s guide is designed as a training and reference manual for the operation and maintenance of the instrument. We recommend that you read it carefully prior to use and follow the instructions to ensure optimum performance of your new instrument. -
Page 8: Features & Functions
7. Power Switch 13. RS232C Serial Port Package Contents Your new AP250 Automated Projector and accessories were carefully packed and checked prior to shipment; however, please check condition and contents upon delivery. In addition to your AP250, this shipment should include: •... -
Page 9: Setup
4. Install the projector screen. mount with appropriate hardware for the type of wall 5. If attaching the AP250 to a mount, loosen the clamp- it is being installed on. down screw (see page 6, #6) and insert the projec- 2. -
Page 10: 110V/230V Operation
AND FOCUS CONTROLS WHILE THE COVER IS OPEN. DO NOT TOUCH ANY OTHER COMPONENTS UNDER THE COVER OR PERSONAL INJURY MAY RESULT. The AP250 can be optimally focused at projection distances between 10 ft (3 m) and 26.5 ft (8 m) when the patient and projector are equidistant from the projection screen. -
Page 11: Remote Control
ON position, slides can be projected by simply pushing any button. The Lamp ON / OFF button can be used to turn the lamp off at anytime. Otherwise, the AP250 lamp shuts off automatically after 10 minutes of non-use. -
Page 12: Programming The Remote
Key while simultaneously switching on the projec- each unit. tor. You may require an assistant to help. 3. The AP250 will emit a short beep. Continue holding Connect the Remote the IN Program Key until you hear a longer beep. -
Page 13: Programming Slide Sequences
1. Press the Program Key (1 or 2) you want to edit. 2. Press the NEXT Program Key until the slide to be The AP250 can record two (2) custom slide sequences, changed appears on the screen. including masks. Follow the steps below to store, edit 3. -
Page 14: Slide Library
Slide Library Letter Charts Number Charts Illiterate Charts Children Charts Special Charts Cross Cylinder Phoria Phoria Astigmatism Red-Green with fixation Vertical Minute Stereo Fixation point Vertical Line Binocular Coincidence Balance Eye Schematic Horizontal Line Worth 13800-101-Rev. F... -
Page 15: Cleaning & Maintenance
1. Open the top portion of the projector housing by loosening the 3 mm hexagon screw located under- neath the front portion of the AP250 head. 2. Remove the cover from the bulb housing. 3. Remove the bulb by lightly pulling upwards on it. -
Page 16: Specifications
Specifications Catalog Number 13800 Physical Dimensions Size: Weight, unpacked: 12.0 lbs (5.5 Kg) Height: 7.0 in (17.78 cm) Weight, packed: 15.9 lbs (7.2 Kg) Width: 8.0 in (20.32 cm) Depth: 13.0 in (33.02 cm) Electrical Electrical 110 V Operation 230 V Operation Voltage: 110 VAC Voltage: 230 VAC Power Input: Max 40 VA... -
Page 17: Classifications
Appendix A REFRACTING DISTANCE FEET Figure 10 - Letter Sizing Chart in Feet 13800-101-Rev. F... -
Page 18: Appendix A
Appendix A REFRACTING DISTANCE METERS 9.00 9.00 8.75 8.75 8.50 8.50 8.25 8.25 8.00 8.00 7.75 7.75 7.50 7.50 7.25 7.25 7.00 7.00 6.75 6.75 6.50 6.50 6.25 6.25 6.00 6.00 5.75 5.75 5.50 5.50 5.25 5.25 5.00 5.00 4.75 4.75 4.50 4.50... - Page 19 If notified promptly in writing of any action brought against the purchaser based on a claim that the instrument infringes a U.S. Patent, Reichert will defend such action at its expense and will pay costs and damages awarded in any such action, provided that Reichert shall have sole control of the defense of any such action with information and assistance (at Reichert’s expense) for such defense, and of all negotiation for the settlement and compromise thereof.
-
Page 20: Reichert Product Warranty
3362 Walden Ave Depew, NY 14043 Toll Free: 888-849-8955 Phone: 716-686-4500 Fax: 716-686-4545 Email: reichert.information@ametek.com www.reichert.com AMETEK GmbH Business Unit Reichert Carl-von-Linde-Strasse 42 85716 Unterschleissheim/Munich Germany Email: info.reichert-de@ametek.com Tel: +49 (89) 315 8911 0 Fax: +49 (89) 315 891 99 ISO-9001/13485 Registered 13800-101 Rev.
