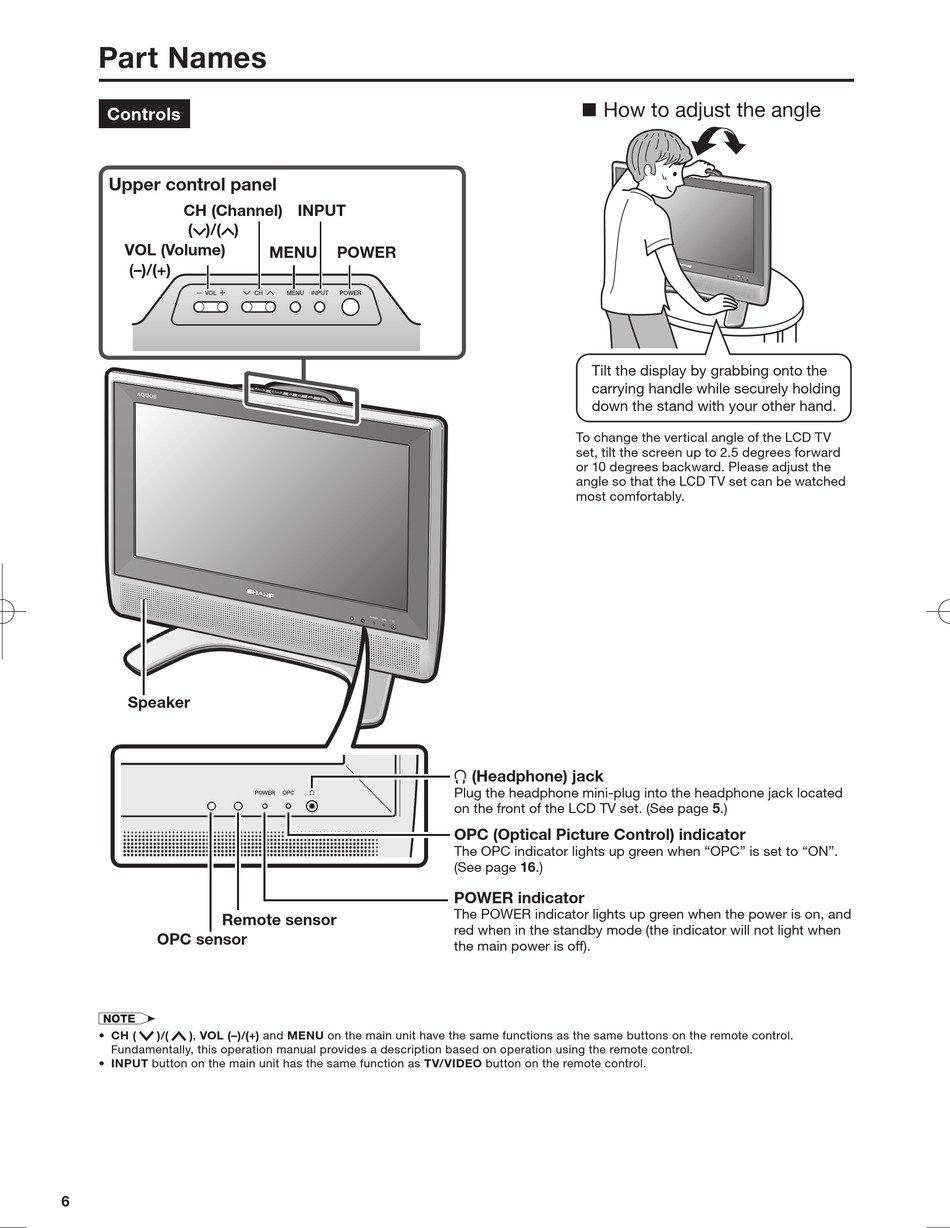

Part Names

Controls
Upper control panel
CH (Channel)
( )/( )
VOL (Volume)
(–)/(+)
Speaker
OPC sensor
A
• CH ( )/( ), VOL (–)/(+) and MENU on the main unit have the same functions as the same buttons on the remote control.
Fundamentally, this operation manual provides a description based on operation using the remote control.
• INPUT button on the main unit has the same function as TV/VIDEO button on the remote control.
6
INPUT
MENU POWER
Remote sensor
How to adjust the angle
Tilt the display by grabbing onto the
carrying handle while securely holding
down the stand with your other hand.
To change the vertical angle of the LCD TV
set, tilt the screen up to 2.5 degrees forward
or 10 degrees backward. Please adjust the
angle so that the LCD TV set can be watched
most comfortably.
(Headphone) jack
Plug the headphone mini-plug into the headphone jack located
on the front of the LCD TV set. (See page 5.)
OPC (Optical Picture Control) indicator
The OPC indicator lights up green when "OPC" is set to "ON".
(See page 16.)
POWER indicator
The POWER indicator lights up green when the power is on, and
red when in the standby mode (the indicator will not light when
the main power is off).
