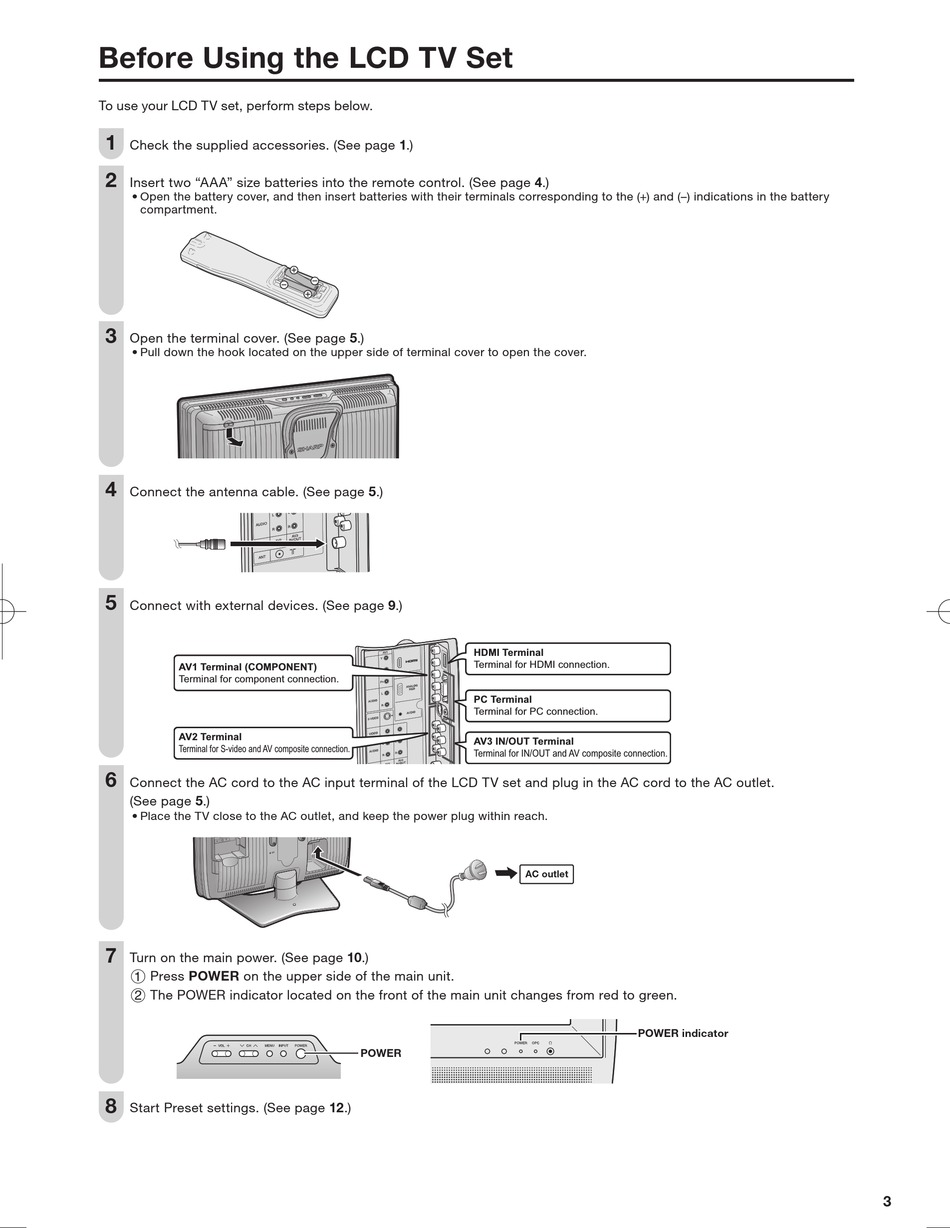

Before Using the LCD TV Set

To use your LCD TV set, perform steps below.
1
Check the supplied accessories. (See page 1.)
2
Insert two "AAA" size batteries into the remote control. (See page 4.)
• Op en the battery cover, and then insert batteries with their terminals corresponding to the (+) and (–) indications in the battery
compartment.
3
Open the terminal cover. (See page 5.)
• Pull down the hook located on the upper side of terminal cover to open the cover.
4
Connect the antenna cable. (See page 5.)
5
Connect with external devices. (See page 9.)
AV1 Terminal (COMPONENT)
Terminal for component connection.
AV2 Terminal
Terminal for S-video and AV composite connection.
6
Connect the AC cord to the AC input terminal of the LCD TV set and plug in the AC cord to the AC outlet.
(See page 5.)
• Place the TV close to the AC outlet, and keep the power plug within reach.
7
Turn on the main power. (See page 10.)
1 Press POWER on the upper side of the main unit.
2 The POWER indicator located on the front of the main unit changes from red to green.
8
Start Preset settings. (See page 12.)
HDMI Terminal
Terminal for HDMI connection.
PC Terminal
Terminal for PC connection.
AV3 IN/OUT Terminal
Terminal for IN/OUT and AV composite connection.
POWER
AC outlet
POWER indicator
