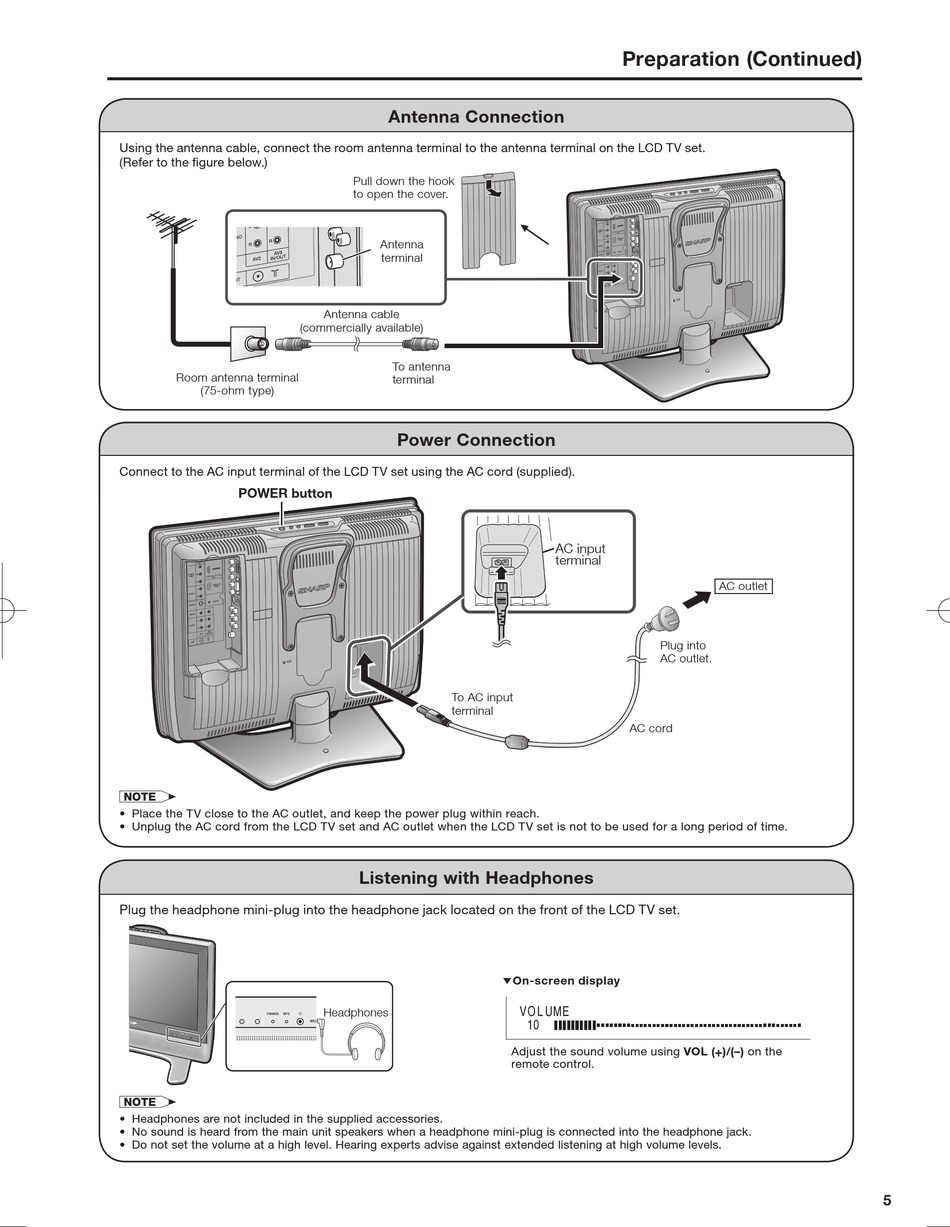

Using the antenna cable, connect the room antenna terminal to the antenna terminal on the LCD TV set.
(Refer to the fi gure below.)
Room antenna terminal
(75-ohm type)
Connect to the AC input terminal of the LCD TV set using the AC cord (supplied).
POWER button
A
• Place the TV close to the AC outlet, and keep the power plug within reach.
• Unplug the AC cord from the LCD TV set and AC outlet when the LCD TV set is not to be used for a long period of time.
Plug the headphone mini-plug into the headphone jack located on the front of the LCD TV set.
A
• Headphones are not included in the supplied accessories.
• No sound is heard from the main unit speakers when a headphone mini-plug is connected into the headphone jack.
• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.

Antenna Connection

Pull down the hook
to open the cover.
Antenna
terminal
Antenna cable
(commercially available)
To antenna
terminal

Power Connection

To AC input
terminal

Listening with Headphones

Headphones
Preparation (Continued)
AC input
terminal
Plug into
AC outlet.
AC cord
On-screen display
0
Adjust the sound volume using VOL (
remote control.
AC outlet
+
)/(–) on the
