Ref. 234901
User manual

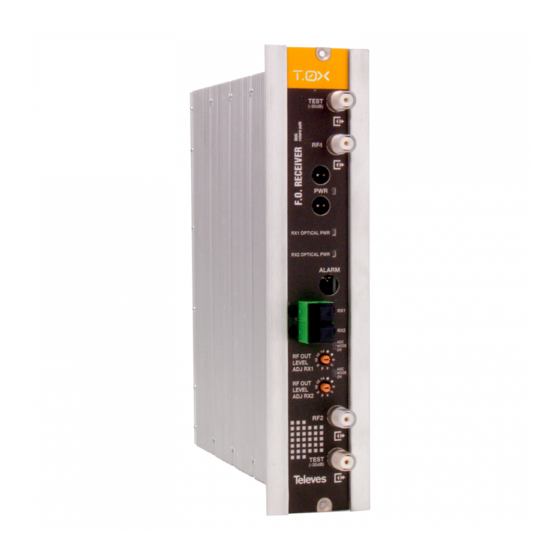

Optical Fiber Dual Return Path Receiver
EN
w w w . t e l e v e s . c o m

Advertisement

loading
Need help?

Need help?

Do you have a question about the T.0X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Televes T.0X Series

Summary of Contents for Televes T.0X Series

  • Page 1 Ref. 234901 User manual Optical Fiber Dual Return Path Receiver w w w . t e l e v e s . c o m...
  • Page 2 Televes·...
  • Page 3 Dual Return Path Receiver Index Technical specifications ........................Mounting ............................. 2.1. 19” rack mounting ........................Product description ..........................Table for gain installations calculation ....................

  • Page 4: Safety Instructions

    If you have any questions or comments about the 4. Cleaning - Disconnect this product from any maintenance (servicing) instructions in the T.0X Series Optical Fiber Receivers please contact electrical source before cleaning. Use a damp cloth; literature accompanying the product.
  • Page 5 Optical connection instructions: or rack unless proper ventilation is provided and the - If the product has been exposed to rain or water. manufacturer’s instructions have been adhered to. - If the product does not operate normally by 9. Power Sources - This product should be operated following the operating instructions.

  • Page 6: Technical Specifications

    Dual Return Path Receiver 1. Technical specifications Optical receiver (two receivers) 234901 RF frequency range 5 ... 300 RF output level (AGC mode) dBµV / dBmV 74 ±2 / 14 ±2 RF manual gain adjust 0 ... 14 (steps 2 dB) Output test point -30 ±0.5 RF parameters...
  • Page 7 2. Mounting 2.1. 19” rack mounting F.O. Transmitter DUAL RETURN PATH P.S.U. EDFA RECEIVER TEST (-12dB) TEST (-30dB) TX OPTICAL PWR Error RX1 OPTICAL PWR RX2 OPTICAL PWR ALARM ALARM 5301 Optical IN Optical OUT RF IN LEVEL MODE ADJ. RF OUT LEVEL ADJ RX1...

  • Page 8: Product Description

    Dual Return Path Receiver 3. Product description With two independent receivers in the module, involving networks with varying link budgets. The AGC keep the RF output level constant the 234901 return path module provides a high – An integrated low-noise pre-amplifier and high- independently of the optical input level (-16 to density solution for advanced upstream video and performance post-amplifier offers high RF output...
  • Page 9 4. Table for gain installations calculation Receiver output levels in dBmV (planning frequency: 18MHz, 28MHz, 48MHz, 58MHz and 30dBmV each channel at the input of the return path transmitter (optical power 3dBm). Optical link losses RF output power (dB) (dBµV / dBmV) 108 / 48 106 / 46 104 / 44...
  • Page 10 (VII) shipping. sale, use, installation or failure of any product (B) Televes shall, free of charge and in its sole (D) All claims under the terms of this warranty must acquired by Purchaser from Televes. discretion, either repair, replace with a new or...
  • Page 11 DECLARATION OF CONFORMITY Nº 150723210419 Per FCC Part 2 Section 2.1077(a) Responsible Party Name: Televes S.A. Address: Rua Benéfica de Conxo, 17 15706 - Santiago de Compostela Spain Phone / Fax Nº: 981522200 / 981522262 Hereby declares that the product Product Name: T.0X FO RX TWIN W/O RET AGC + TEMP...
