User manual Betriebsanleitung Installation manual Montage Anleitung Raumthermostat ST Room thermostat ST - Tagestemperatur Betriebsart - Day temperature heating - Nacthtemperatur Betriebsart - Night temperature heating - Brauchwassererwärmung - D. h. w. warming - Brauchwassererwärmung mit Zeitfuktion - D. h. w. warming with timer function Room thermostat ST ΧΗΦΘΑΚΟΣ...
Page 3

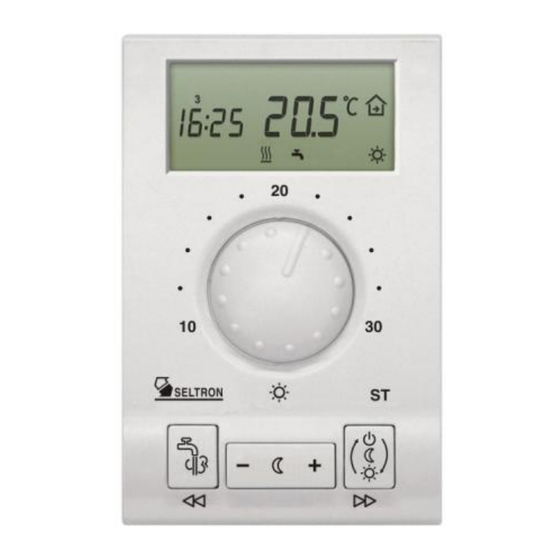

Room thermostat ST ST is an electronic room thermostat, which allows us to set a requested day and a requested night temperaure, it also allows the d. h. w. warming activation. Thermostat description Display: Day of the week (1-7) Day temperature mode...
Page 4
Hold thermostat in height of keys and pull it towards yourself (look at the picture). After battery exchange, put ST back on the wall plate, by doing the following. Hook ST on top and push it with bot- tom towards the wall plate.
Page 5
Place of mount Place of mount is very important for proper ST operation. Suitable places are inner walls, which aren’t sun lighted or exposed to sources of heat and wind. ST should be mounted approximately 150 cm above the floor.
Page 6
Electrical wiring of room thermostat ST: Direct heating circuit and domestic hot water warming Module for Module for d. h. w. heating warming Installation manual...
Page 7
Electrical wiring of room thermostat ST: Indirect heating circuit and domestic hot water warming Module for Module for d. h. w. heating warming Installation manual...
Conformity with standards and directives Seltron d.o.o. declares, with full responsibility, that controller ST meet the requirements and rules for the electrical equipment, designed to use within certain voltage levels (EC directive for low voltage (LVD) 73/23 EEC, 93/68 EEC) and requirements and rules for electro-magnetic compatibility (EMC) (EC directive for electro-magnetic compatibility (EMC) 89/336 EEC, 92/31 EEC, 93/68 EEC).
Page 9
Raumthermostat ST ST ist ein elektronischer Raumthermostat, der uns erlaubt, eine Tag- und Nacht- Solltemperatur einzustellen, es erlaubt auch die Brauchwassererwärmung. Thermostat Beschreibung: Anzeige: Tag der Woche (1-7) Tagestemperatur NachtTemperatur Frostschutz Heizung aktiv Brauchwassererwärmung Gemessene Raumtemperatur Tagestemperatur Einstellung Brauchwassererwärmung ON/OFF...
Page 10
Auswahl der Betriebsart: Mit drücken der Taste wählen Sie den gewünschten Betriebsart. Ausgewählte Betriebsart wird auf der Anzeige dargestellt. - Tagestemperatur - Nachttemperatur - Heizung AUS (Frostschutz) Werkseingestellte betriebsart beim Baterrienwechsell ist »Tagestemperatur« und Brauchwassererwärmung AUS. Einstellung der Tages– und Nachttemperatur Wenn die Raumtemperatur Ihren Erwartungen nicht Entspricht, dann können Sie die Eingestellte Temperatur Einfach ändern: Tagestempertur:...
Page 11
Auswahl der Montagestelle Die Auswahl der Montagestelle ist wichtig für den richtigen Betrieb des Raumthermostaten. Die dem- entsprechende Stellen sind an Innenwänden, die nicht von der Sonne angestrahlt sind und nicht den lokalen Wärmequellen und dem Durchzug ausgesetzt sind. Die Höhe der Montage soll etwa 150 cm über dem Boden sein.
Page 12
Elektrischer Anschluss von Raumthermostat ST: Direkt- Heizkreis und Brauchwassererwärmung Modul für Modul für Brauchwasserer- Heizung wärmung Montageanleitung...
Page 13
Elektrischer Anschluss von Raumthermostat ST: Misch- Heizkreis und Brauchwassererwärmung Modul für Modul für Brauchwasserer- Heizung wärmung Montageanleitung...
Für die Reparatur in der Garantiezeit wenden sie sich an einen autorisierten Verkäufer oder Service- stelle mit der Originalrechnung oder Ausgefühltem Garantiezertifikat. Die Garantie gilt in allen Ländern wo das Gerät seitens Seltron, oder eines autorisierten Fachhandels verkauft wird. Entsorgung von gebrauchten elektrischen und elektronischen Geräten Entsorgung von gebrauchten elektrischen und elektronischen Geräten (Anzuwenden in den Län-...
