Video Microscope – Measurement
Calibration (cont'd)
9/ With the measurement cursors aligned on
the Calibration Reticle, click in the
calibration bar at the bottom of the Video
Toolbox window.
Select Calibrate from the menu that
appears.
(Note that cursor and text colors may be
changed by choosing Set Colors from this
menu.)
17
18
Luxxor
Calibration (cont'd)

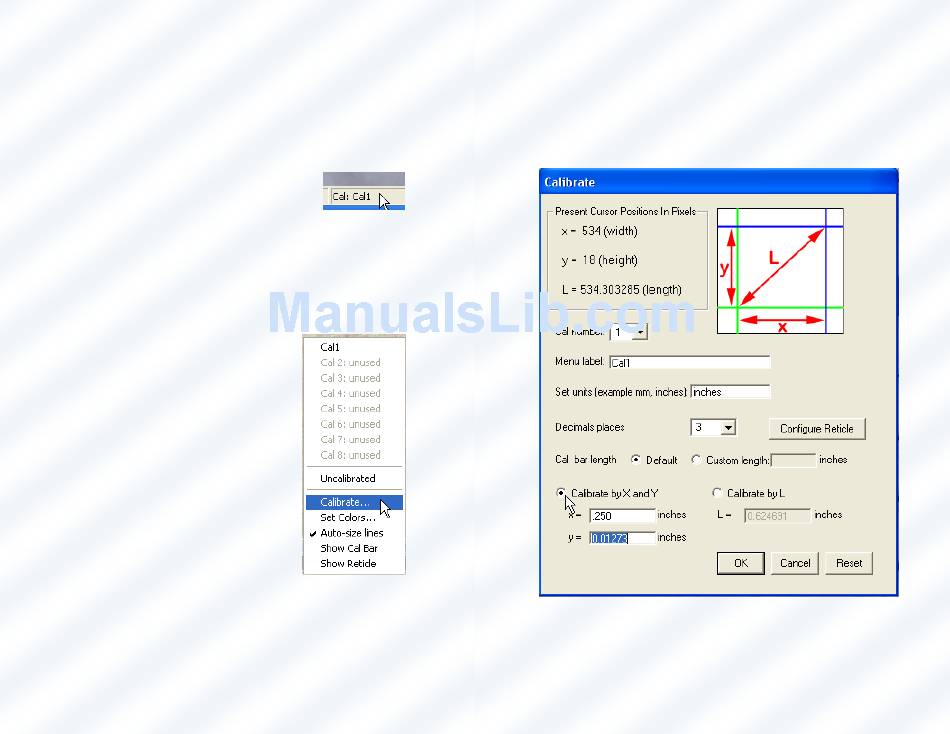

9/ Select 'Calibrate by X and Y' in the lower-left of the window
that appears.
Enter "in" or "inches" in the 'Set units' box, (or mm if
appropriate). Then enter the scale reading (.250 in this case) in
the 'x=' box. Then select 'OK'.
®
