Luxxor Video Microscope – Image Capture
Setting Up Image Capture (cont'd)
3/ Click "Capture File" on the left.
4/ Choose the directory you want to save the images in.
5/ Enter the root file name you want. Video Toolbox
will append index numbers to the root file name.
6/ Choose the file type you want images saved as. The
choices are bitmap, jpeg and tiff.
7/ Click the Done button at the bottom of the window.

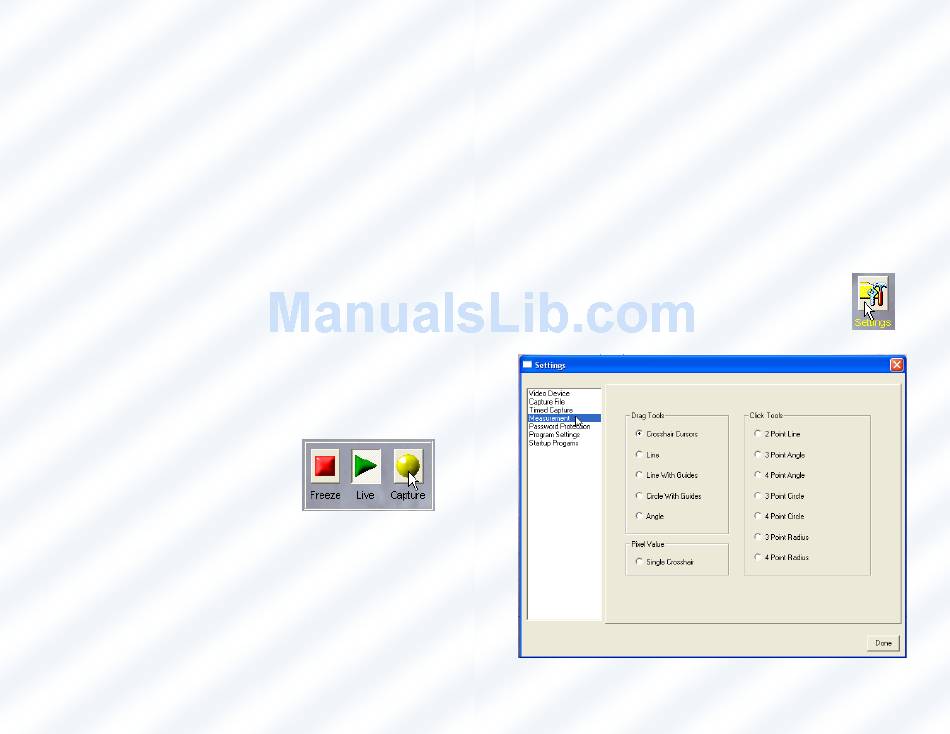

Now the image displayed on the
monitor can be captured by clicking
on the Capture button at the right
of the Video Toolbox menu bar. It
will be automatically saved to the
directory you chose.
13 14
Luxxor
Calibration
To calibrate the microscope for measuring:
1/ Place the workpiece to be measured under the lens. Focus
on the area of interest and set the zoom and working distance
rings on the lens to provide the desired view.
2/ LOCK DOWN THE ZOOM & WORKING DISTANCE RINGS.
If the magnification changes due to moving either of these rings,
the calibration is no longer valid and the microscope must be re-
calibrated.
3/ Click the Settings button in the Video Toolbox
menu bar. Click "Measurement" on the left. Select
"Crosshair Cursors", then click the Done button.
®
Video Microscope – Measurement
