Luxxor Video Microscope – Measurement
Calibration (cont'd)
4/ Remove the workpiece from the Table and place the
Calibration Reticle supplied with the Video Microscope under the
lens, with a white piece of paper under it.
5/ Focus on the Calibration Reticle without
disturbing the zoom or working distance rings on
the lens. Use only the Vertical Slide for coarse
focus and the silver Focus Knob for fine focus.

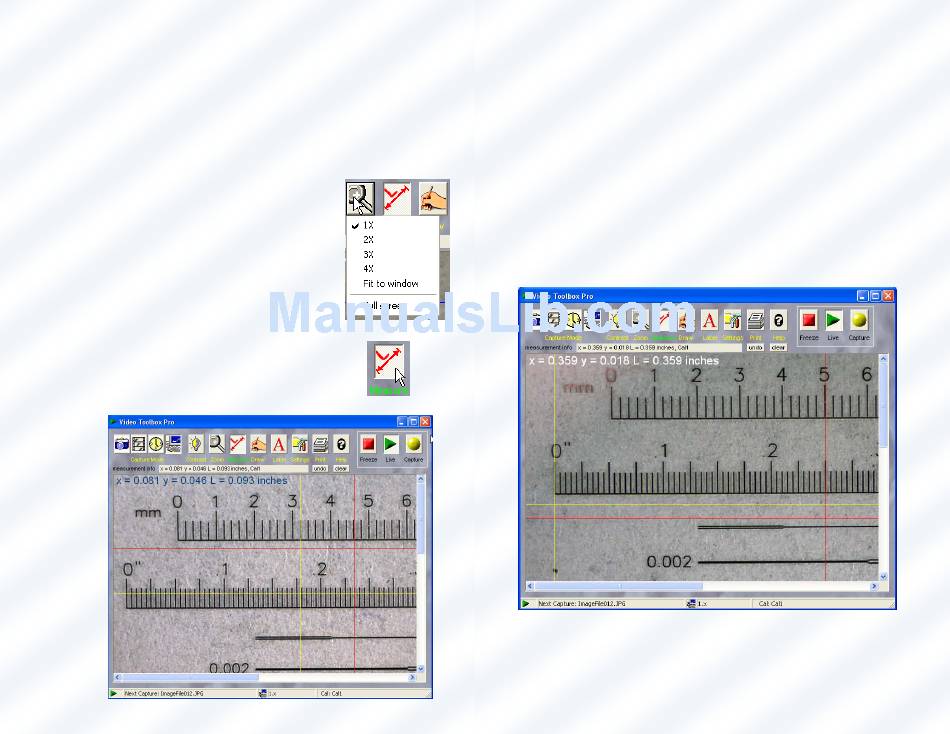

6/ Click on the Zoom button on the Video
Toolbox menu bar. Make sure 1X, 2X, 3X or 4X is
chosen, but NOT "Fit to Window". 1X is the
recommended setting.
7/ Click on the Measure button on the Video
Toolbox menu bar. This will display the
measurement cursors on the image, as well as the
measurement readout at the upper-left of the
image.
15 16
Luxxor
Calibration (cont'd)
8/ Decide whether to calibrate in inches or millimeters. Then
choose the appropriate scale on the Calibration Reticle. Move
the cursors so that their respective vertical lines are aligned
with convenient marks on the scale as widely separated as
possible.
Note that in order to drag an individual cursor, it must be
grabbed at the intersection of its two axes. If grabbed
elsewhere, both cursors will be dragged together.
Shown here is the yellow cursor's vertical line aligned with '0'
on the inch scale and the reds cursor's vertical line aligned with
.250 in.
®
Video Microscope – Measurement
