Luxxor
Video Microscope – Set Up

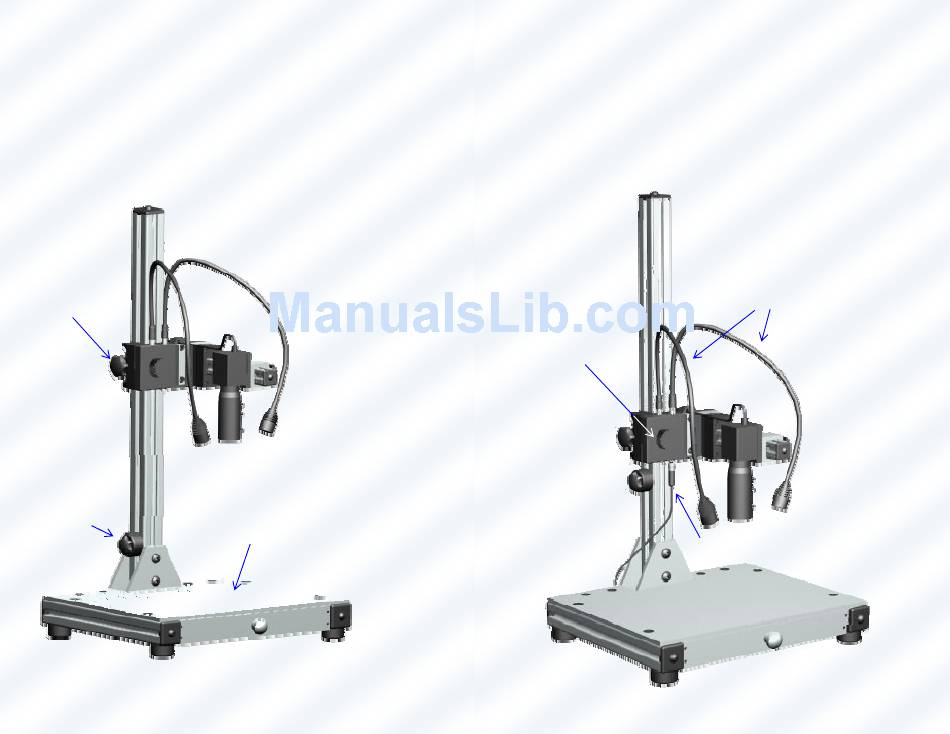

The Vertical Slide may be raised to the desired position on the
Column by loosening the knob on the Slide Brake and lifting the
Vertical Slide. Be sure to tighten the Slide Brake knob before
letting go of the Vertical Slide.
Slide Brake Knob
Slide Stop
The Slide Stop may be
positioned along the
Column by loosening its
knob and re-tightening
when at the desired
location. Use this to
set a limit for the
Vertical Slide to avoid
the Camera or an
attached borescope
colliding with the Table
or a workpiece under
inspection.
Table
3
4
Luxxor
Illumination Control
®
Video Microscope – Set Up
Plug the Power Connector at the end of
the power supply cable into the jack on
the bottom of the Vertical Slide.
Tighten its locking ring to secure it in
place. Then plug the power supply into
a 110 VAC outlet. The Illumination
Control may then be used to turn on the
LED lights and vary their intensity.
Make sure that both the light stalks are
seated firmly in their sockets.
LED Light Stalks
Power Connector
