Luxxor Video Microscope – Set Up
Set White Balance (cont'd)

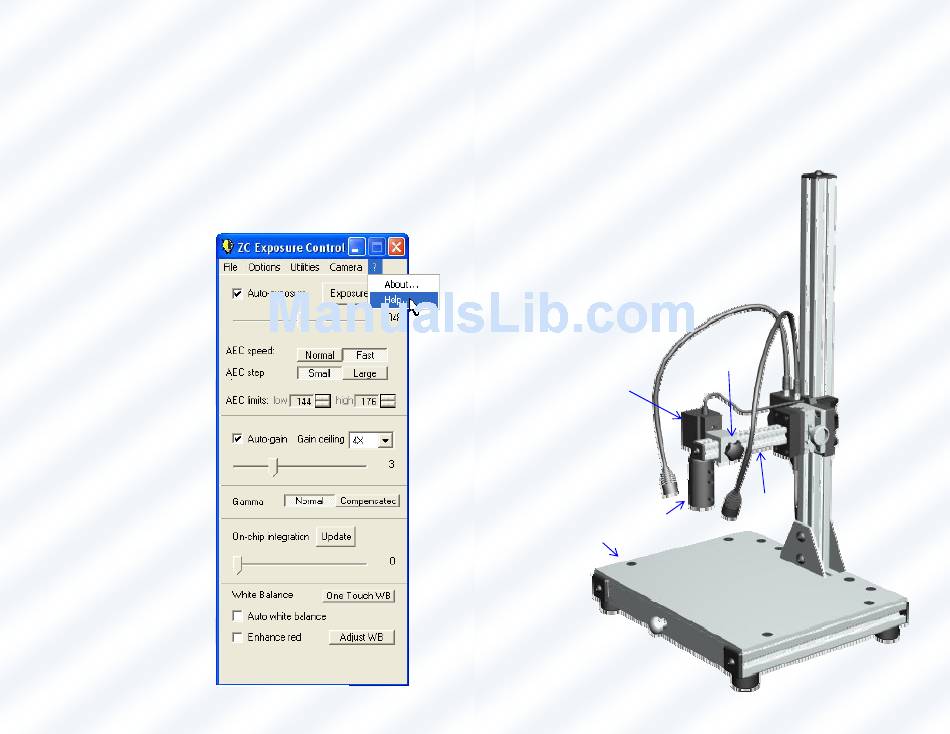

Check the "Auto white balance" box and wait a few seconds if
necessary until the image turns white. Then uncheck the box.
White balance should remain valid until the lighting is changed,
such as when the LED lights are turned on or off. If the image
color later seems wrong, repeat this procedure.
These settings should be
good for starting out.
More detailed information
about the use of ZC
Exposure Control can be
found in the Help menu of
the ZC Exposure Control
window.
7 8
Luxxor
Place the workpiece to be viewed on the Table under the
camera Lens. The Camera may be slid along the Boom to align it
with the part. To do this, Loosen the Camera Slide Brake, move
the Camera and tighten the brake again when the desired
position is reached. Move the Vertical Slide
up or down as needed to get the image
nearly in focus on your video display. Then
be sure to tighten the brake on the Vertical
Slide.
Camera
Table
®
Video Microscope – Operation
Camera
Slide Brake
Boom
Lens
