Gradient Lens LUXXOR User Manual page 12

®

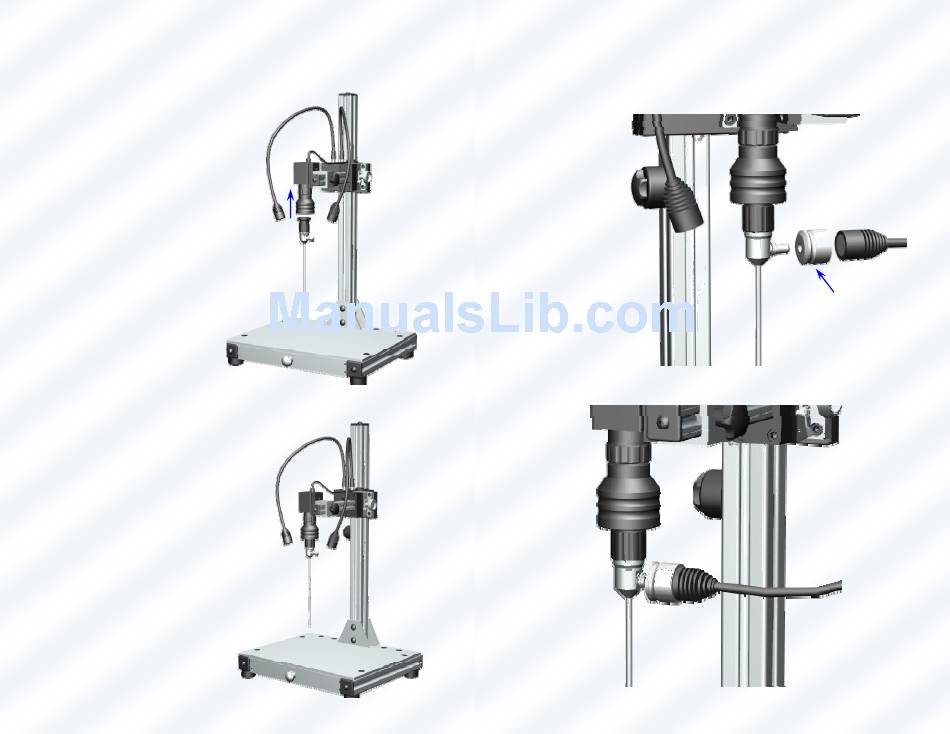

Luxxor Video Microscope – Borescope Mounting
With the VC-35 mounted, pull the
bell of the VC-35 upward while
inserting the eyecup of the
borescope fully into the VC-35.
Then release the bell of the VC-35 to
lock the borescope in place.
The mounted borescope will look
similar to this.
23 24
®
Luxxor Video Microscope – Borescope Mounting
Light may be
provided through
®
the Hawkeye
borescope (and
many others) from
one of the LED Light
Stalks by first slipping
the Light Stub
Adapter over the
head of the LED Light
Stalk, then sliding the
adapter onto the
light stub of the
borescope.
Light Stub Adapter
