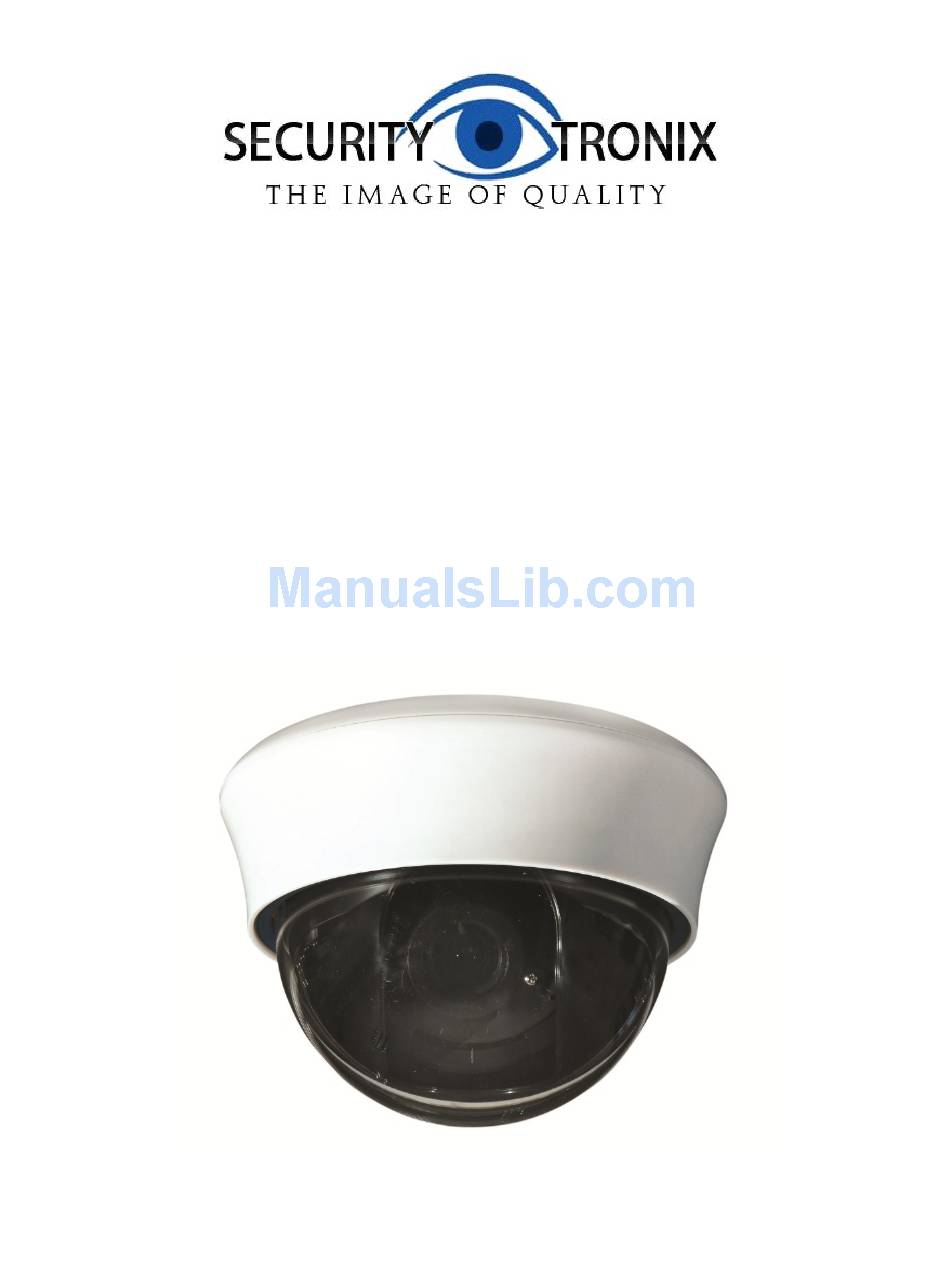

- Page 1 OPERATION MANUAL ST-D7002812-B/W CMOS Indoor Dome Camera V1.0 7/24/13...
-
Page 2: Package Contents
This package contains: One (1) ST-D7002812-B/W 4.5” Indoor Dome Camera One (1) Operation Manual Note: The ST-D7002812-B/W requires a minimum 12VDC 350mA power supply such as the ST- PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-D7002812-B/W is an indoor dome color camera designed around a 1/3” Color CMOS imager with 700TVL of resolution. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. Adjust the lens direction according to the required surveillance area and environment. 5.
