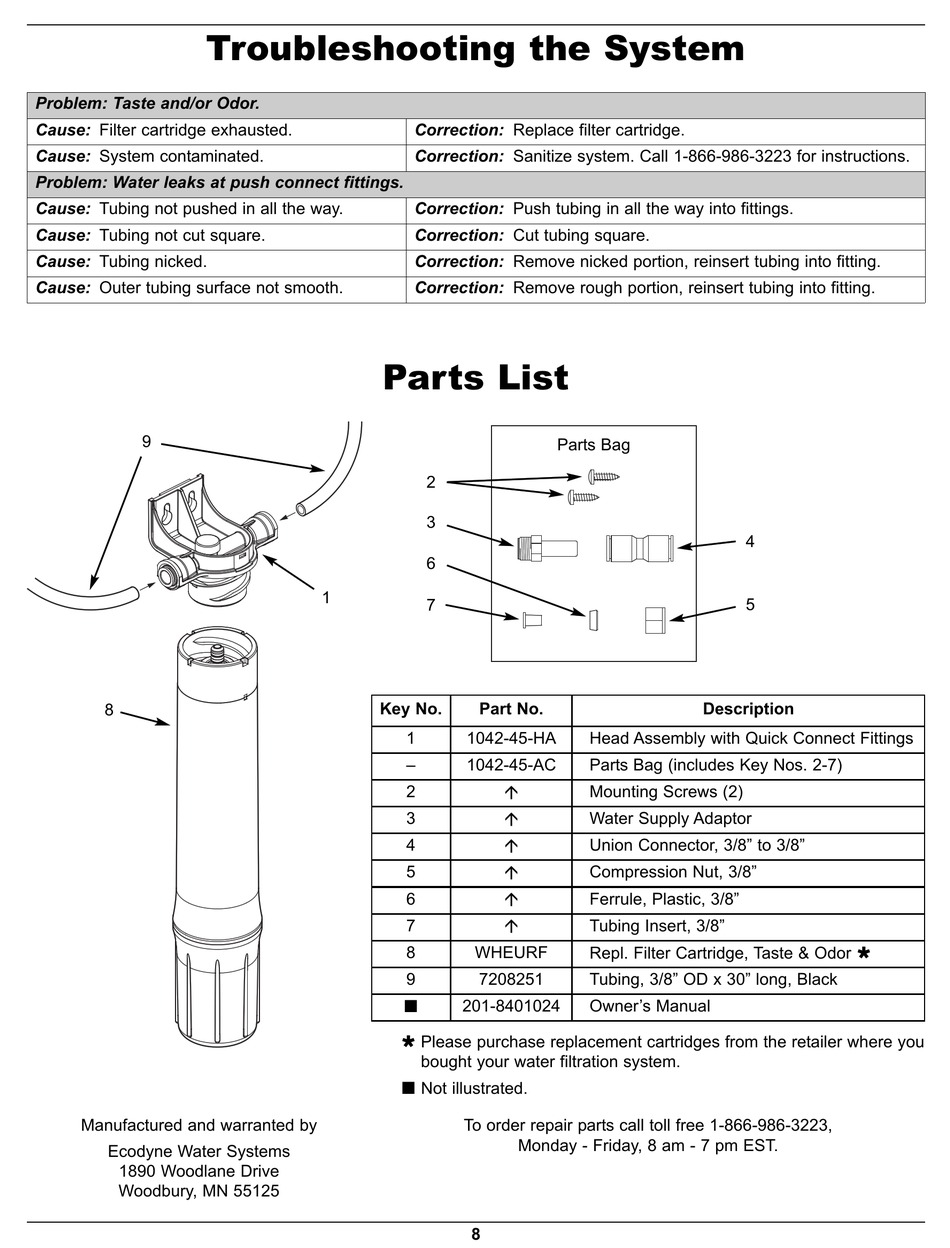

Troubleshooting the System

Problem: Taste and/or Odor.
Cause: Filter cartridge exhausted.
Cause: System contaminated.
Problem: Water leaks at push connect fittings.
Cause: Tubing not pushed in all the way.
Cause: Tubing not cut square.
Cause: Tubing nicked.
Cause: Outer tubing surface not smooth.
9
8
Manufactured and warranted by
Ecodyne Water Systems
1890 Woodlane Drive
Woodbury, MN 55125
Correction: Replace filter cartridge.
Correction: Sanitize system. Call 1-866-986-3223 for instructions.
Correction: Push tubing in all the way into fittings.
Correction: Cut tubing square.
Correction: Remove nicked portion, reinsert tubing into fitting.
Correction: Remove rough portion, reinsert tubing into fitting.
Parts List
2
3
6
1
7
Key No.
Part No.
1
1042-45-HA
1042-45-AC
2
3
4
5
6
7
8
WHEURF
9
7208251
201-8401024
Ù Please purchase replacement cartridges from the retailer where you
bought your water filtration system.
Not illustrated.
To order repair parts call toll free 1-866-986-3223,
8
Parts Bag
Head Assembly with Quick Connect Fittings
Parts Bag (includes Key Nos. 2-7)
Mounting Screws (2)
Water Supply Adaptor
Union Connector, 3/8" to 3/8"
Compression Nut, 3/8"
Ferrule, Plastic, 3/8"
Tubing Insert, 3/8"
Repl. Filter Cartridge, Taste & Odor Ù
Tubing, 3/8" OD x 30" long, Black
Owner's Manual
Monday - Friday, 8 am - 7 pm EST.
