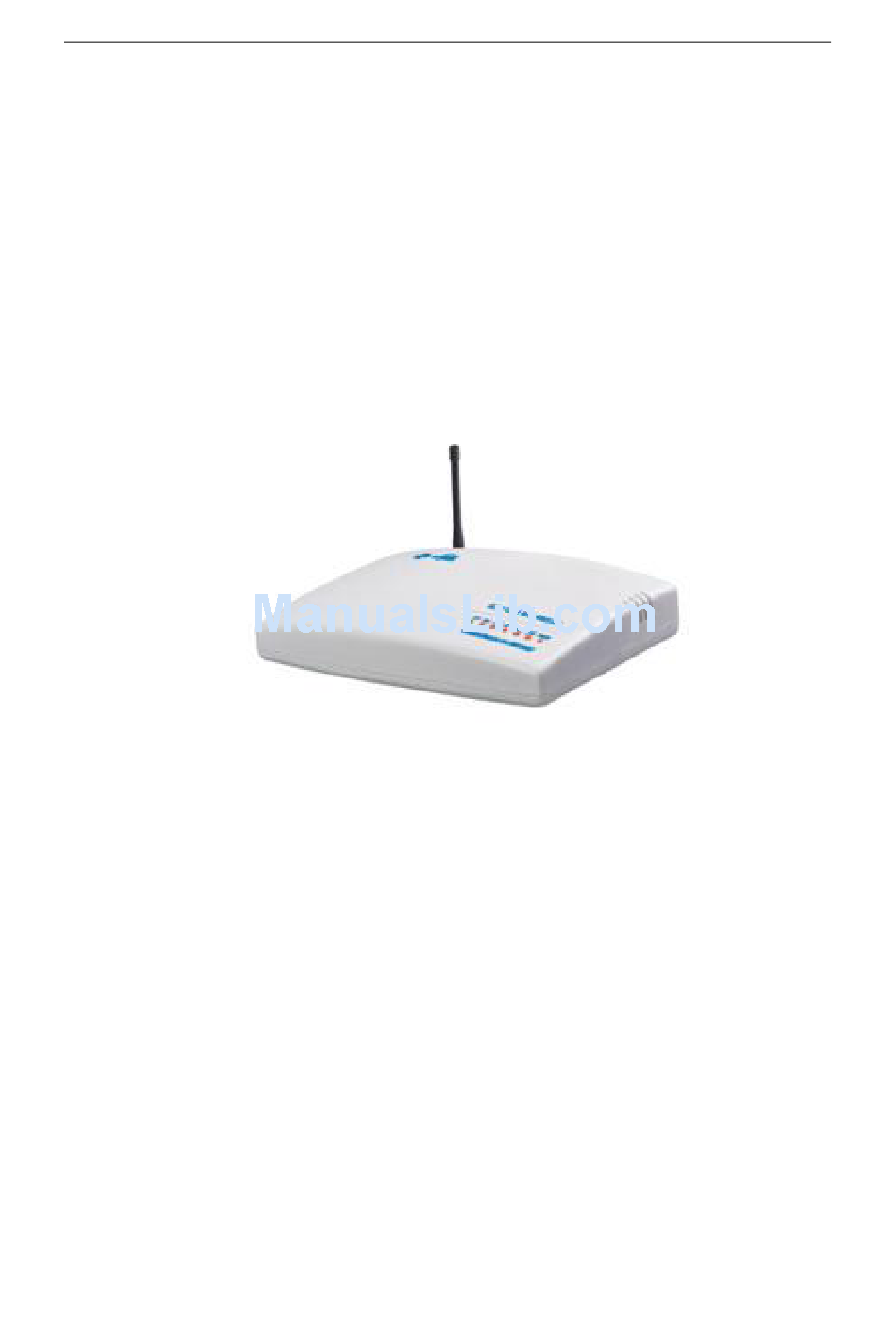

F W T- 8 8 1 8 G S M G at e wa y
( F I X E D W I R E L E S S T E R M I N A L )
USER'S MANUAL
1、DESCRIPTION

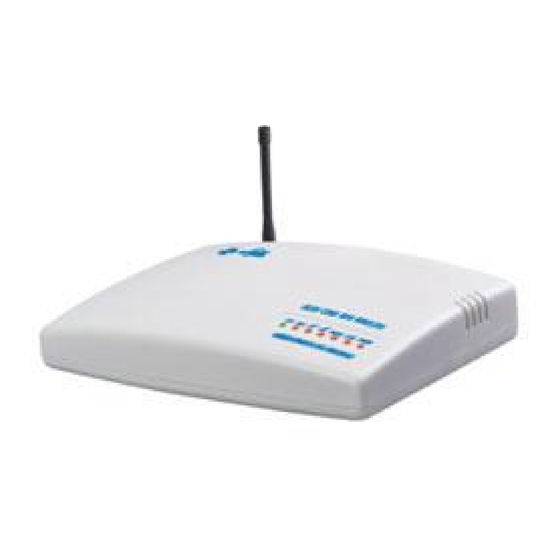

FWT-8818 GSM is a Fixed Wireless Terminal designed to provide better
wireless connectivity between POTS (plain old telephone set) and
existing GSM 900/1800Mhz network with high sensitivity to receive
signal and large transmitting power to expand extensively the effective
coverage of GSM service. It can be used not only in communication for
vehicles such as automobiles, trains, floating vehicles, etc., but also in
1
Advertisement
Table of Contents
Related Manuals for Etross FWT-8818
Summary of Contents for Etross FWT-8818
- Page 1 ( F I X E D W I R E L E S S T E R M I N A L ) USER’S MANUAL 1、DESCRIPTION FWT-8818 GSM is a Fixed Wireless Terminal designed to provide better wireless connectivity between POTS (plain old telephone set) and existing GSM 900/1800Mhz network with high sensitivity to receive signal and large transmitting power to expand extensively the effective coverage of GSM service.
-
Page 2: Front View
So they are widely used in home &office, public phone, rural areas, steamer, railway etc. FWT-8818---a solution for expanding GSM service coverage! FUN PWR USE Front View... -
Page 3: Main Function &Features
2、LEDs DISPLAY INSTRUCTIONS No.1-4 (From Right to Left), Signal strength indication. No.5, Working status Indication: In Use or not use. No.6, Power On/off indication. No.7, Function indication (green light) * When the system startup, the green light will light on about 30seconds then off, it enter work status. -
Page 4: Specification
No noise &Clear voice Suitable for wide voltage range &Low power consumption Suitable for all kinds of weather & environment RJ-11 ports (two extensions line /phone and line (optional) ) Locking PIN/ Network (optional) 4、SPECIFICATION 1.Air Interface Standard: GSM 900/1800 MHz Phase 2+ 2.Frequency Ranges: Transmission Reception... - Page 5 19.Antenna Connection: SMA Antenna Connection. 5、APPLICATION For public use as payphones； For Office &Home use； For rural and mountainous area； For mobile carriage, like ship, automobile and train etc.； For those where hardwire-line telephone service is unavailable. 6、INSTALLATION AND CONNECTION MODE 1.Antenna Connect the head of GSM antenna to the head of antenna of the back of the Fixed Wireless Terminal.
- Page 6 Ac-adapter With one of Wire (the telephone line with crystal head) to telephone , and another side to TEL1 口 or TEL2 口 on the back of the terminal, 4.Connection to PBX Antenna AC adapter With one end of the wire (the telephone line with crystal head) to the socket of PBX equipment ,while another end to the TEL1 口...
-
Page 7: Function Setting
With the PHONE Port to connect TEL with wire, And LINE Port to connect Fixed line of Tel.com with wire. The default is dialing out from GSM, if you want to make call from PSTN, please press “#” before you input the number. And you can receive calls from call to PSTN and GSM number both. - Page 8 （If not enough No. please use ‘#’instead。Eg.：Install IP193 put 193##）——hang up （5 digital access to IP should be 5 No.s， The access No. to IP should be caller’s IP No.， eg 17909、 17951、 17911、 17921、 193##、 17931 etc。 ） Modify 6 digit password “**”——“Original 6 digit password”——“7”——“New 6 digital pass word”——hang up Install to have “zero”...
- Page 9 Warranty Card Please fill in the blanks carefully, and keep it properly as the voucher for warranty. Type of Equipment FWT-8818 GSM Fixed Wireless Terminal User’s name Contact with: Contact Tel.no. Address...
- Page 10 Date of Ex-works Date of Maintenance Damage Management Maintainer Sales Agent Purchasing Date (Stamp)
