Summary of Contents for Etross GSM 8 SIM/PORT FWT

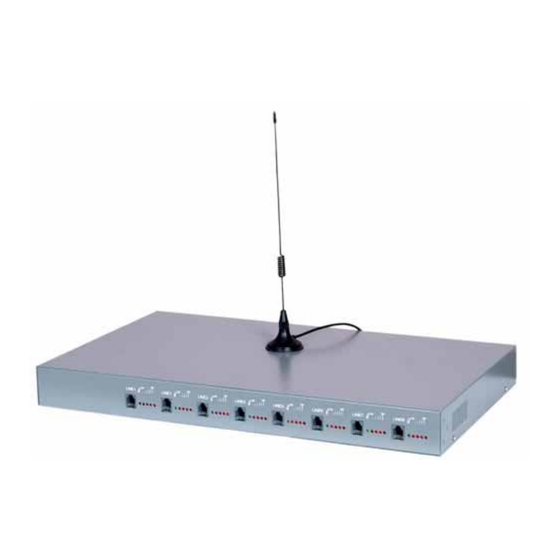

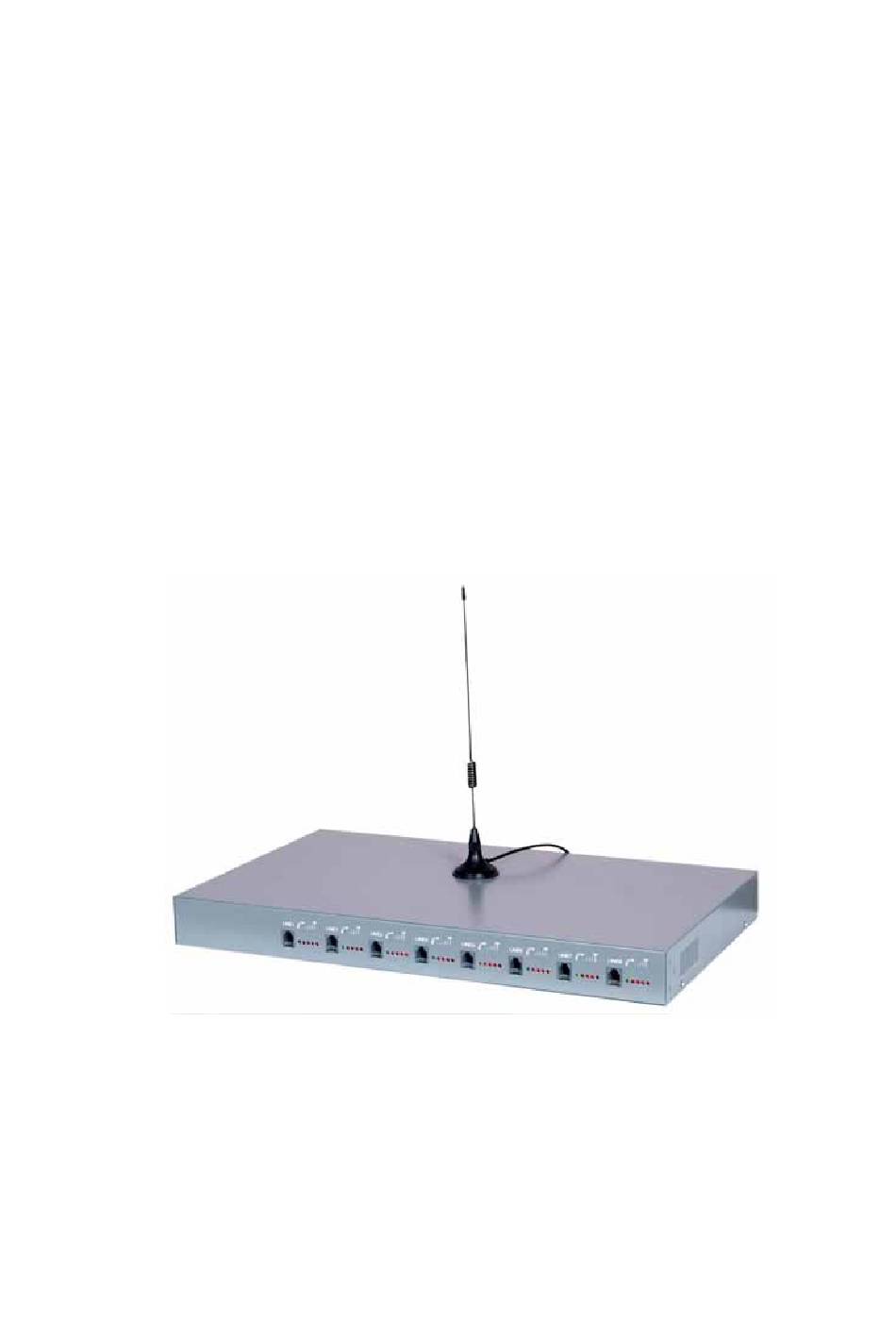

- Page 1 GSM 8 SIM/PORT FWT (PBX GATEWAY) USER’S MANUAL...
- Page 2 1,General Description: GSM 8 SIM/PORT FWT is a GSM to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.
- Page 3 1), Front side has 8pcs RJ-11 ports, and LEDs display for Signal strength, Power, Working Status and Talking indicator; 2), Rear side has 8pcs SMA antenna connectors, Power switch for every terminal, General Power port and switch; 3), Front side with 8pcs antennas, this only for display picture, in installation, antenna must be put beyond 1.5 from terminal.
- Page 4 Sensitivity: <-104dbm Antenna Amplifying: >1.5db Dialing frequency: 450Hz Hanging voltage: 45V Picking current: 30mA/41mA 5,Checking Package: GSM 8 SIM/PORT FWT : 1pcs; Power Supply Cable: 1pcs, GSM Antenna with 3m cable: 8pcs, User’s Manual 1pcs. Product dimension: L455x W280 x H45mm Gift box dimension: L510x W170x H64mm G.W: 4.5kg...
- Page 5 Draw your attention: Because there are many types of ordinary telephone and their electric parameters are different. In order to avoid mutual disturbance between telephone and terminal and affect voice quality. The distance between telephone and terminal is 1.5m at least. 2) The installation for connecting to billing device for metering If the users demand to register cost during calls, billing device can be connected between terminal and ordinary telephone.
- Page 6 4) The installation for connecting VoIP gateway for Call Termination Suppose a VoIP call originates from US, which was transferred from US Server to China Server on VoIP, finally the call will be terminated from internet to GSM network and to be sent out to the destination answer side.
- Page 7 1) Adjust dial interval *#01#30# , 01--command，30--time，Max 9.9 seconds，Min 0.5 seconds, factory default setting is 3 seconds. GSM 8 SIM/PORT FWT *If you use for connecting to VoIP gateway,you can set dial interval as 0.5 second, it can make PDD<5 sec (Method: *#01#05#);...
- Page 8 7） IMEI change We will provide you data cable and software for you, If you need to do IMEI change, Contact with our sales staff for inquiry. 8,Making Calls and Answer Incoming Calls Making Calls 1. Lift the handset or press “hand-free” key, you will hear dialing tone, then you can dial the telephone numbers you want to call.
