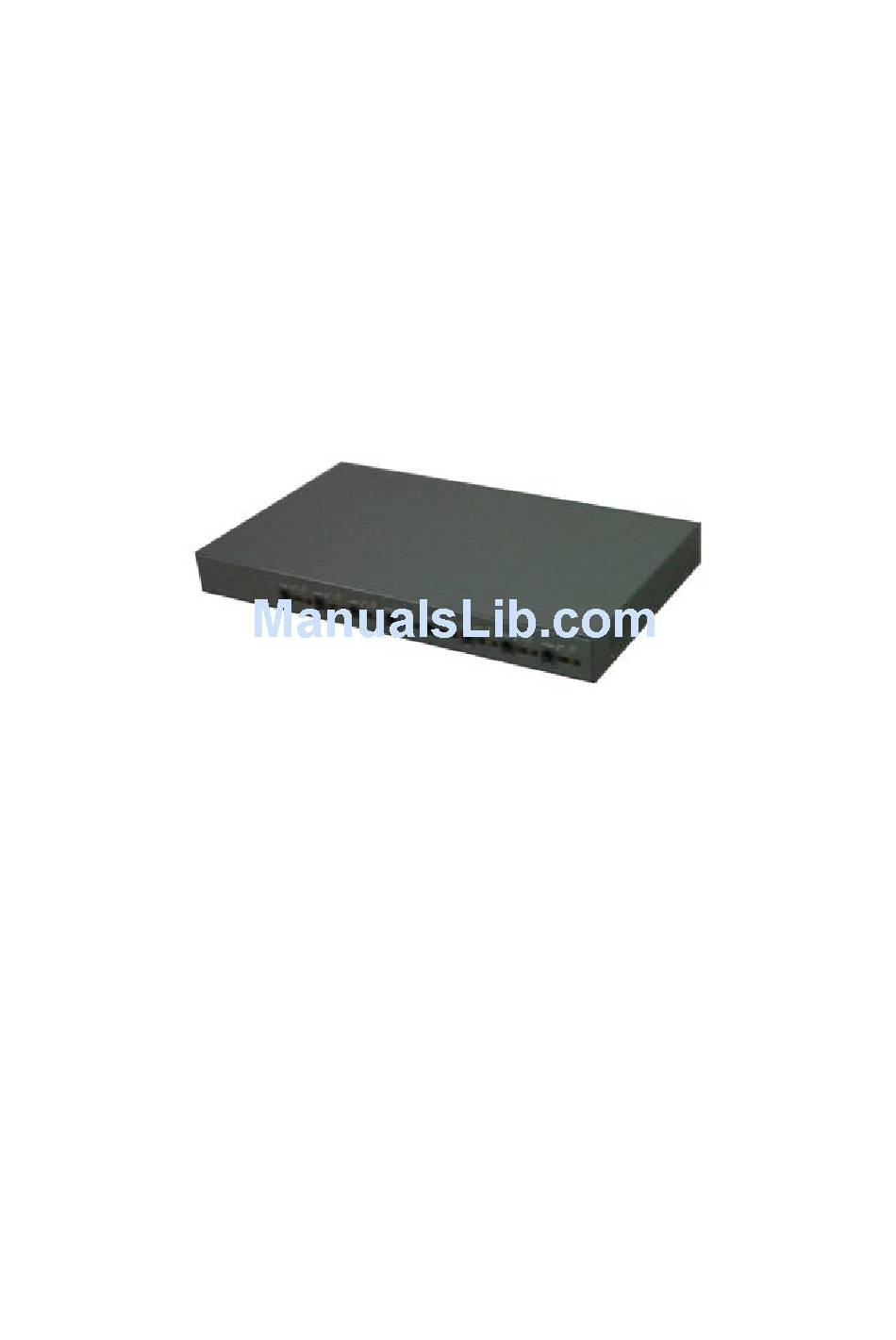

- Page 1 GSM FWT-8888, 8 PORTS (GATEWAY) USER MANUAL 1,General Description:...

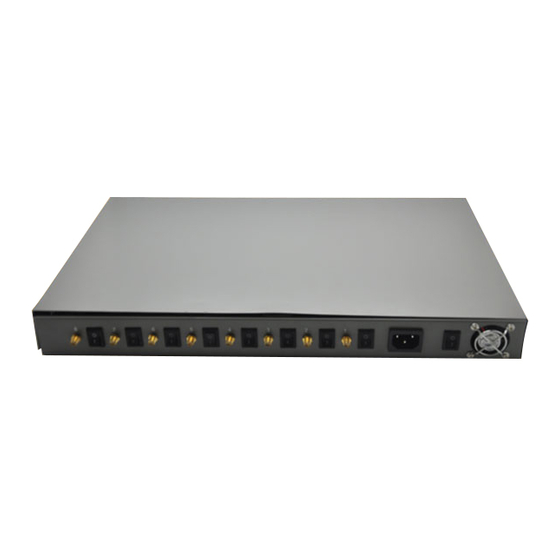

- Page 2 FWT-8888 is a GSM to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.
-
Page 3: Technical Specifications
4) Employ Industrial module [Sim300( Tri-band 900/1800/1900Mhz),Sim340 (Quadband 850/900/1800/1900Mhz) or Wavecom Q2303A,Q2403A(Dual band 900/1800Mhz)] to make 5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set 6) Can adjust voice volume by setting up from telephone set 7) SIM card supported (1.8V, 3V) 8) Caller ID display 9) DTMF Dialing... - Page 4 Hanging voltage: 45V Picking current: 30mA/41mA 5,Checking Package: FWT-8888 GSM 8 PORTS FWT 1pcs; Power Supply Cable 1pcs, GSM Antenna with 3m cable 8pcs, User’s Manual 1pcs. Product dimension: L455x W280 x H45mm Gift box dimension: L510x W170x H64mm G.W: 4.5kg...
- Page 5 The sketch for connecting to Billing device or Computer charging system 3) The installation for connecting to PBX for call extentions If users want to connect small PBX to this terminal, connect terminal’s “Phone port” to the PBX. The sketch for connecting to PBX device. 4) The installation for connecting VoIP gateway for Call Termination Suppose a VoIP call originates from US, which was transferred from US Server to China Server on VoIP, finally the call will be terminated from internet to GSM network and to be sent out to the...
- Page 6 1) Adjust dial interval *#01#30# , 01--command，30--time，Max 9.9 seconds，Min 0.5 seconds, factory default setting is 3 seconds. *If you use FWT-8888 for connecting to VoIP gateway,you can set dial interval as 0.5 second, it can make PDD<5 sec (Method: *#01#05#);...
- Page 7 *If you use FWT-8888 for connecting telephone, PBX, billing device, you can set dial interval as 3 seconds or 5 seconds as you like (Method: *#01#30#, set the dial interval as 3 seconds). 2) Adjust Earphone Volume *#02#15# 02--command，15--volume，Max 16，Min 1, factory default setting is 15.
- Page 8 indicator are flashing simultaneously, the terminal is searching for network. About 15~45 seconds later, the telephone rings that indicates the process of initialization terminal finishes. If Warn indicator stays lit, initialization is unsuccessful. On this condition user can set parameters for the terminal but the terminal can’t be used to make any calls. If users dial telephone numbers, the Warn indicator will flash and the telephone will give out the sound of three-time toot to ask the user to hang up.
