- Page 1 User Manual Four Channel’s GSM VoIP Gateway Model: GoIP400...
-
Page 2: Table Of Contents
Four Channel’s GSM VoIP Gateway Contents 1 Product Introduction ............ 3 1.1 General Information......................3 1.2 Protocol ..........................3 1.3 Hardware Specification ....................4 1.4 Software Specification ....................4 1.5 List of the Package ......................5 1.6 Appearance ........................5 2 Installation ..............6 2.1 Installation Steps ......................6 2.2 Connection Legend......................7 2.3 LED Indicators ........................7 2.4 SMS Commands.........................8... - Page 3 Four Channel’s GSM VoIP Gateway 3.4.5.3 Media NAT Traversal ................27 3.5 Volume adjustment .......................28 3.6 Call Divert ........................29 3.7 Talk time limit........................31 3.8 SMS Disposal ........................32 3.8.1 SMS Call Out ......................32 3.8.2 SMS Relay......................36 3.8.2.1 SMS Relay To VoIP System..............36 3.8.2.2 SMS Relay To GSM Network ..............37 3.9 PSTN Caller ID Transparent ..................37 3.10 GSM Group Mode......................39...
-
Page 4: Product Introduction
Broadband Phone Gateway is a new product that connects the GSM and the VOIP seamlessly. To GOIP400 what is installed on the Mobile SIM Card, you can register the GSM telephone on the VOIP Soft switch. SIP and H.323 agreement are built in the GOIP400 and configured flexible. -
Page 5: Hardware Specification
Four Channel’s GSM VoIP Gateway H.235 Standard M D5 H MAC-SHA1 ¾ （ ， ） ITU-T G.711 alaw/ulaw, G.729A, G.729AB, and G.723.1 Voice Codec ¾ RFC1889 Real Time Data Transmission ¾ ¾ Proprietary Firewall-Pass-Through Technology ¾ SIP V2.0 Standard ¾ Simple Traversal of UDP over NAT (STUN) ¾... -
Page 6: List Of The Package

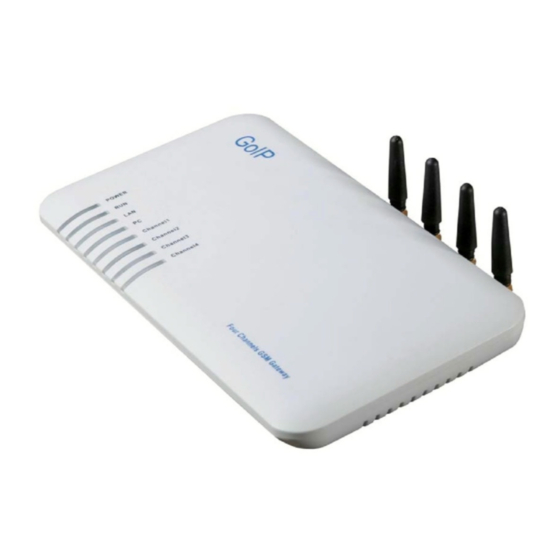

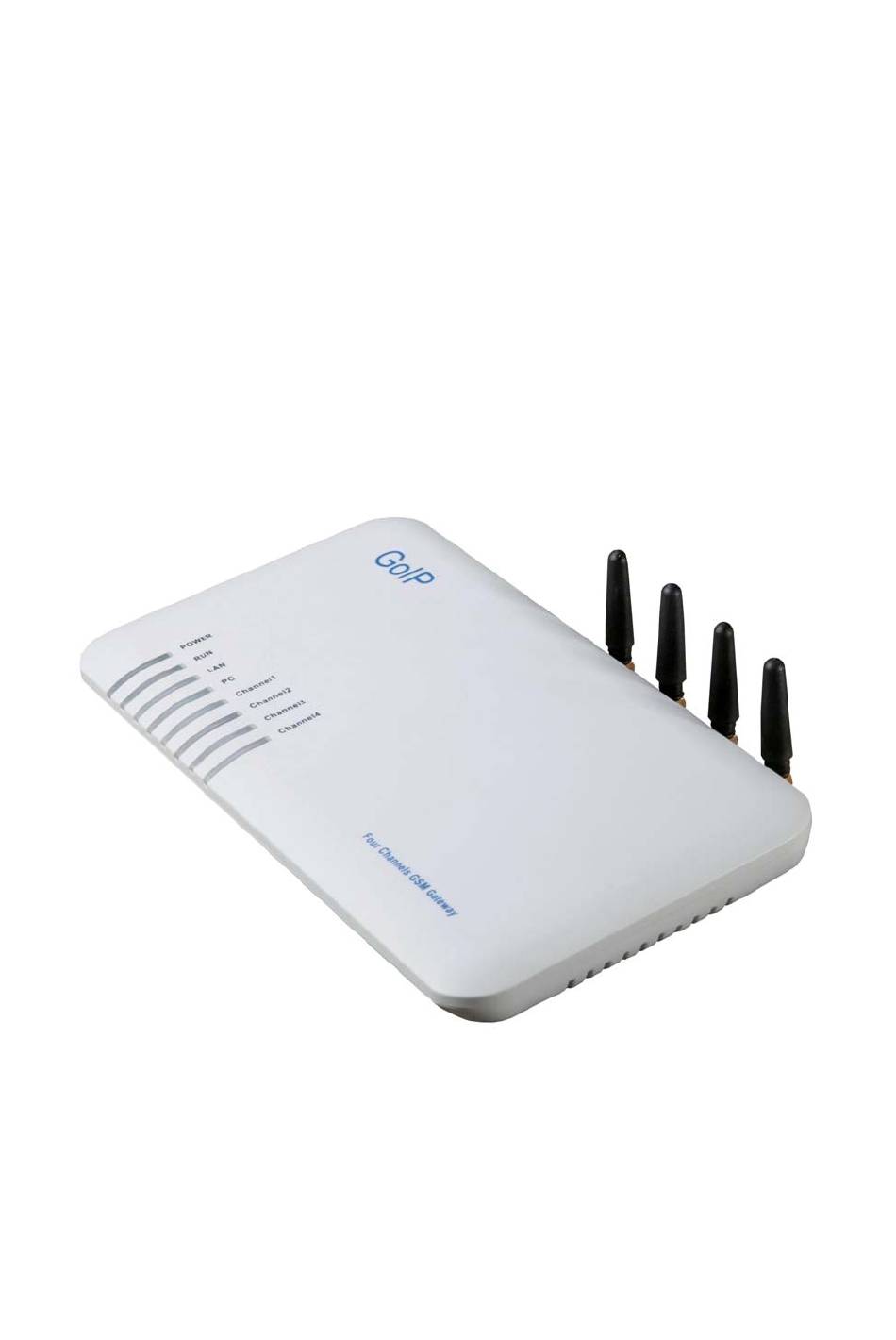

Four Channel’s GSM VoIP Gateway 1.5 List of the Package One GoIP400 Gateway main unit b) One DC12V/2000mA power adaptor One Ethernet cable (3M) 1.6 Appearance... -
Page 7: Installation
Insert a GSM SIM card in the SIM card compartment located at the bottom of the GoIP400 Gateway’s. b) Connect an Ethernet cable the LAN port of the GoIP400 Gateway and the other end to your existing network equipment. Connect an Ethernet cable to the PC Port of the GoIP400 Gateway and the other end to a PC or other network device (Optional). -
Page 8: Connection Legend
1. When the GoIP400 is booting t his ， LED will flash 100ms ON and 100ms OFF. 2. When the GoIP400 is login your softswitch, this LED will flash 1s ON and 1s OFF. When LAN port connecting to network,this LED will light and flash when has data through this port;... -
Page 9: Sms Commands
“Reboot tengda” or “REBOOT tengda”. 3 Configuration Guide To configure the GoIP400 Gateway, you must login to its Web server via the LAN or PC port. The LAN port is factory preset to obtain an IP from the local DHCP host and the PC port is set to the fixed IP 192.168.8.1. -
Page 10: Web Configuration Menu
Four Channel’s GSM VoIP Gateway If a local DHCP host is not available, you can then access the GoIP400 Gateway via the PC port. You will need to change your computer’s LAN configuration via the Network Connections under the Control Panel. -
Page 11: Status
Gateway Web Server. The default for both user name and password is “admin”. This Gateway is tree menu structure, left is menu, and right is configure -content. 3.2 Status The Status page shown below is the default / home page of the GoIP400 Web server. -
Page 12: Phone Information
Four Channel’s GSM VoIP Gateway 3.2.1 Phone Information A. Serial Number Each Gateway has a unique serial number assigned by the factory such as GOIP409100019. This number is important for centralized configuration, technical support, and warranty. This number is printed on the bottom of the Gateway and is associated with your software license. -
Page 13: Gsm Module Information
Four Channel’s GSM VoIP Gateway D. Default Route This field displays the IP address of the default routing Gateway. E. DNS Server This field displays the IP address of the Domain Name Server. 3.2.3 GSM Module Information A. GSM Module This field displays the GSM module type. -
Page 14: Language
Save Changes icon is clicked. 3.3.2 Time Zone and Time Server The GoIP400 Gateway supports Network Time Protocol (NTP) to obtain the date and time information from an NTP server (Time Server). The time zone is specified as in GMT ±... -
Page 15: Dtmf Min Detect Time Gap
If you encounter double digit problem, gain it to more, if you encounter lose digit, then gain it to less. 3.3.4 Auto-Provision The GoIP400 Gateway supports Auto Provisioning which enables configuration parameters to be set automatically without human intervention. The Auto Provisioning supports both HTTP and TFTP protocols. For higher security, encrypted configuration file is also supported. -
Page 16: Gsm Caller Id Anonymous
Four Channel’s GSM VoIP Gateway Each tone listed above is defined in the following format: nc, rpt, c1on, c1off, c2on, c2off, c3on, c3off, f1, f2, f3, f4, p1, p2, p3, p4 Where: nc is the number of cadences rpt is the repeat counter(0 - infinite, 1~n - repeat 1~n times) c1on is the cadence one on (in milliseconds) c1off is the cadence one off (in milliseconds) c2on is the cadence two on (in milliseconds) -
Page 17: Gsm Band
ISP and the GoIP will lock itself just register to your choice one; 3.3.9 SMS Sender 3.3.10 Auto Reboot This option enable GoIP400 auto reboot each day, GoIP400 will auto reboot itself at Reboot Time. If meet a current called, the action will auto delay after the call finish. 3.4 Call Settings Click on the “Call Settings”... -
Page 18: Phone
For H.323 protocol, 2 Endpoint Modes are supported: Direct Mode and Gatekeeper Mode. 3.4.1.1 Direct Mode In Direct Mode, UTT-GoIP400 running at H.323 P to P type. A. H.323 Phone Number H.323 phone number: fill the login number (E164) here. -
Page 19: Gatekeeper Mode
Four Channel’s GSM VoIP Gateway 3.4.1.2 Gatekeeper Mode The “Gatekeeper Mode” mode allows a user to setup the GoIP400 Gateway by registering to the gatekeeper with one H.323 account. A. H.323 Phone Number H.323 phone number: fill the login number (E164) here. -
Page 20: Advance Settings
Four Channel’s GSM VoIP Gateway GoIP400 has three types configure modes in Gatekeeper Mode; Configure By Single: All four channels use same one H.323 account connect to gatekeeper; Configure By Line: Each channel will use a single account connect to H.323 gatekeeper;... -
Page 21: Sip Phone
DTMF signals are actually generated by the called party. This method allows more reliable DTMF signaling. However, it requires the called party to support this feature in order for this to work properly. GoIP400 Gateway supports RFC2833 Outband DTMF protocols. - Page 22 Four Channel’s GSM VoIP Gateway GoIP400 has two types configure modes in SIP protocol; Configure By Single: All four channels use same one SIP account connect to SIP server; Configure By Lines: Each channel will use a private SIP account connect to SIP server;...
- Page 23 ， Backup Server ） The GoIP400 Gateway supports one Backup Server as an alternative to the main server. Once registration to the main server fails, the GoIP400 Gateway will try to register to the Backup Server. Outbound Proxy ） OutBound proxies are devices that will forward SIP signaling (and frequently RTP media traffic too).
-
Page 24: Advanced Settings
Four Channel’s GSM VoIP Gateway 3.4.2.1 Advanced Settings Click on “Advance Settings” tab on the top right corner of the Call Setting page to display all the parameters available, as shown below, for programming. These parameters allow more advanced control over the SIP signaling and media preference. Signaling Port (SIP Local port) ）... -
Page 25: Media Advanced Setting
DTMF signals are actually generated by the called party. This method allows more reliable DTMF signaling. However, it requires the called party to support this feature in order for this to work properly. GoIP400 Gateway supports both RFC2833 and SIP INFO Outband DTMF protocols. - Page 26 ） This parameter specifies the range of the RTP (Real Time Protocol) Ports used by the GoIP400 Gateway. If your network limits the usable port range, this parameter may need to be modified. Please consult your network administrator for more information.
-
Page 27: Codec Preference
Note: The voice code alaw and ulaw is G.711a and G.711u. 3.4.5 NAT Traversal 3.4.5.1 H323 Signaling NAT Traversal Signaling NAT traversal may be required if the GoIP400 Gateway is put behind a NAT (or multiple NATs). Depending on your network environment and SIP Server capabilities, this feature may or may not be turn on. -
Page 28: Media Nat Traversal
Four Channel’s GSM VoIP Gateway SIP Signaling NAT Traversal has 3 kinds: A) None Select None to disable this feature. B) STUN R FC 3489 （ ） STUN (Simple Traversal of UDP (User Datagram Protocol) through NATS (Network Address Translators)) is a network protocol allowing a client behind a NAT (or multiple NATS) to find out its public address, the type of NAT it is behind and the internet-side port associated by the NAT with a particular local port. -
Page 29: Volume Adjustment
¾ Mode 2: The media uses UDP packets and (or) encrypt with single UDP port; ¾ Mode 3: The media uses TCP packets and (or) encrypt (UDP over TCP). 3.5 Volume adjustment The GOIP400 has volume control panel, when you want to adjust volume of the Gateway, must change http://xxx.xxx.xxx.xxx/xxx/xxx.html... -
Page 30: Call Divert
Four Channel’s GSM VoIP Gateway When finish the operation, c lick w ill effective . “ ” Notes: The volume adjustment of lineout may lead the Terminal can not dial-up, please use it carefully. The input and output of this volume adjustment is relative to VOIP. 3.6 Call Divert The Gateway supports practical call routing function, which can be configured in the call transfer configuration. - Page 31 Four Channel’s GSM VoIP Gateway answers, l call set up. This function makes Global roaming –persons can answer everywhere by VOIP. 3.6.2 Authentication mode configuration There are Password Authentication Mode, Trust List Certification Model, and Password or certificate trust list Model; 3.6.2.1 Password Authentication Mode Configure as following: In the option“...
-
Page 32: Talk Time Limit
Four Channel’s GSM VoIP Gateway in VOIP number.. As indicated in Figure 1, suppose that only 3306, on the VOIP there is 3306 can dial PSTN. In the dialing of PSTN to VOIP, fill PSTN numbers on the trusted-numbers list. In this rule, the option “Call PSTN dialing rules”/“Call VOIP dialing rules”... -
Page 33: Sms Disposal
3.8 SMS Disposal 3.8.1 SMS Call Out GoIP400 Gateway supported SMS call. In this mode, when GoIP400 Gateway received a SMS send from any one mobile phone, it will auto make a call to SIP server. If you want use this function, select the SMS Dial option in configuration page. - Page 34 GoIP400 dial the call via itself VoIP account and add the SMS sender phone number to SIP invites be call number. S MS Dial Prefix ： When GoIP400 dial a SMS call, it will automatic add this option’s digit in be Called ID. Mode 1 examples: A. GoIP400 use SMS Dial Mode 1: One mobile phone’s number is (86)13800000000, it sends a SMS “8675588228822”...
- Page 35 One mobile phone’s number is (86)13800000000, it sends a SMS “8675588228822” GoIP400’s GSM SIM card. When GoIP400 device receive this SMS, it will auto to call number as 9998675588228822, and the caller is number 8613800000000. The sent out signaling as follow:...
- Page 36 GoIP400 will set the SMS sender number to “Call Divert “option’s “Forward Number (VoIP to PSTN” automatic. The result is, when SIP server receives the SMS call and call back this GoIP400 then GoIP400 will auto call the SMS sender via GSM network. The sent out signaling as follow: Use can add a SMS prefix with mode 2, it will work like mode 1.
-
Page 37: Sms Relay
GoIP400 when some GSM phones send a SMS to GoIP400. 3.8.2.1 SMS Relay To VoIP System When GoIP400 receive a SMS come from GSM network, it will auto relay to VoIP system’s appointed number (SMS Forward Number); Suppose the SMS Forward Number is 3999 and SMS sender number is “8613682626865... -
Page 38: Sms Relay To Gsm Network
Four Channel’s GSM VoIP Gateway 3.8.2.2 SMS Relay To GSM Network When GoIP400 receive a message come from SIP server as follow: The GoIP400 will send a SMS to GSM number 13682626800, the SMS content is “Hello world”. 3.9 PSTN Caller ID Transparent In SIP protocol, GoIP400 support PSTN Caller ID transparent to VoIP via SIP Invite signaling;... - Page 39 Disable: Disable PSTN Caller ID transparent to VoIP; Use Remote Party ID: GoIP400 add Caller ID in SIP invite’s Remote Party ID option. Use CID as SIP Caller ID: GoIP400 use PSTN Caller ID in SIP invitee’s Caller ID option and Remote Party ID option.
-
Page 40: Gsm Group Mode
About H.323’s PSTN Caller ID transmit; we will perfect it in later firmware. 3.10 GSM Group Mode GoIP400 supported multi_devices cooperate with one group; it can work like a multi_channels GSM gateway. Any one GoIP400’s channels are can work as Group Server Mode or Client Mode. Server Mode: When one channels running in Server Mode;... -
Page 41: Dial Plan
Four Channel’s GSM VoIP Gateway into follow option. Disable: When GoIP400 run as alone mode, please set all channels to Disable mode. 3.11 Dial Plan Dial Plan defines how a number (VoIP) is processed when GoIP400 receives it. This field is located in the Calling Setting Window and it is available for both H.323 Phone and SIP Phone. - Page 42 Four Channel’s GSM VoIP Gateway Examples: 1. Dial Plan = “010:-010” means that the number dialed out will have the first 3 digits 0 10 removed when a number with the first digits as “010” is entered. “ ” a) Number entered = “01082121234”, actual number dialed = “82121234”. b) Number entered = “82121234”, actual number dialed = “82121234”.
-
Page 43: Gain Settings
Four Channel’s GSM VoIP Gateway 3.12 Gain Settings A hidden webpage is provided to set the receiving and transmit gains of VoIP Chunnel. The URL link is: http://xxx.xxx.xxx.xxx/default/en_US/gain.html THIS PAGE IS INTENDED FOR AN EXPERIENCED USER OR AN ADMINISTRATOR ONLY. PLEASE SET THE GAINS WITH CAUTIONS. - Page 44 DHCP ） Choose DHCP if a local DHCP host is available. This allows the UTT-GoIP400 Gateway to obtain network information (IP Address, Subnet Mask, Default Route, Primary DNS, Secondary DNS, and other DHCP options) from the DHCP host. Static IP ）...
-
Page 45: Pc Port Configurations
3.13.2 PC Port Configurations The PC Port allows addition network devices to be attached behind the GoIP400 Gateway. It offers both Bridge and Static IP modes to meet your network topology. It is factory preset to the Static IP mode with the IP address 192.168.8.1. -
Page 46: Save Configuration
Four Channel’s GSM VoIP Gateway Enable the DHCP Server if you want the GoIP400 Gateway functions as a local DHCP host for the PC segment. This will enables the GoIP400 Gateway to assign IP Addresses to network devices that are attached to the PC port segment. -
Page 47: Discard Changes
To perform a firmware upgrade, select the Online Upgrade tab to access the page below. Enter the update link as provided by your service provider. A sample link is: hk.ippcn.com/update/GHS-3.01-18.pkg Click the Start button to start the firmware upgrade. WARNING: POWER SHUTDOWN / FAILURE DURING FIRMWARE UPGRADE MAY PERMINENTLY DAMAGE THE UTT-GOIP400 GATEWAY. -
Page 48: Change Password
This is the password for the user name/ID “admin”. The default password is “admin”. This user name allows full access to all configuration settings available. 3.16.3 Reset Configuration Click on the Reset Config tab to reset the GoIP400 Gateway to its factory default settings. 3.16.4 Reboot the Device... -
Page 49: Hardware Specifications
Four Channel’s GSM VoIP Gateway 4 Hardware Specifications Characteristics of the Parameter Remarks hardware Processor ARM9E 133MHz VPDSP101-4 100MHz Flash Power DC12V/2000mA +-10% Input AC100V to AC240V Default 900M/1800M GSM Module Type Optional 850M/1900M Consumption The Maximum 5 W LEDS RUN, GSM, LAN, PC,GSM Network Ports 2 RJ45;... - Page 50 Four Channel’s GSM VoIP Gateway DHCP A uto Obtain （ ） Network Static IP:192.168.8.1 DHCP Server Running admin admin Password user 1234 Time Zone ＋ Note :This default parameter are unsuitability the customization’s products.
