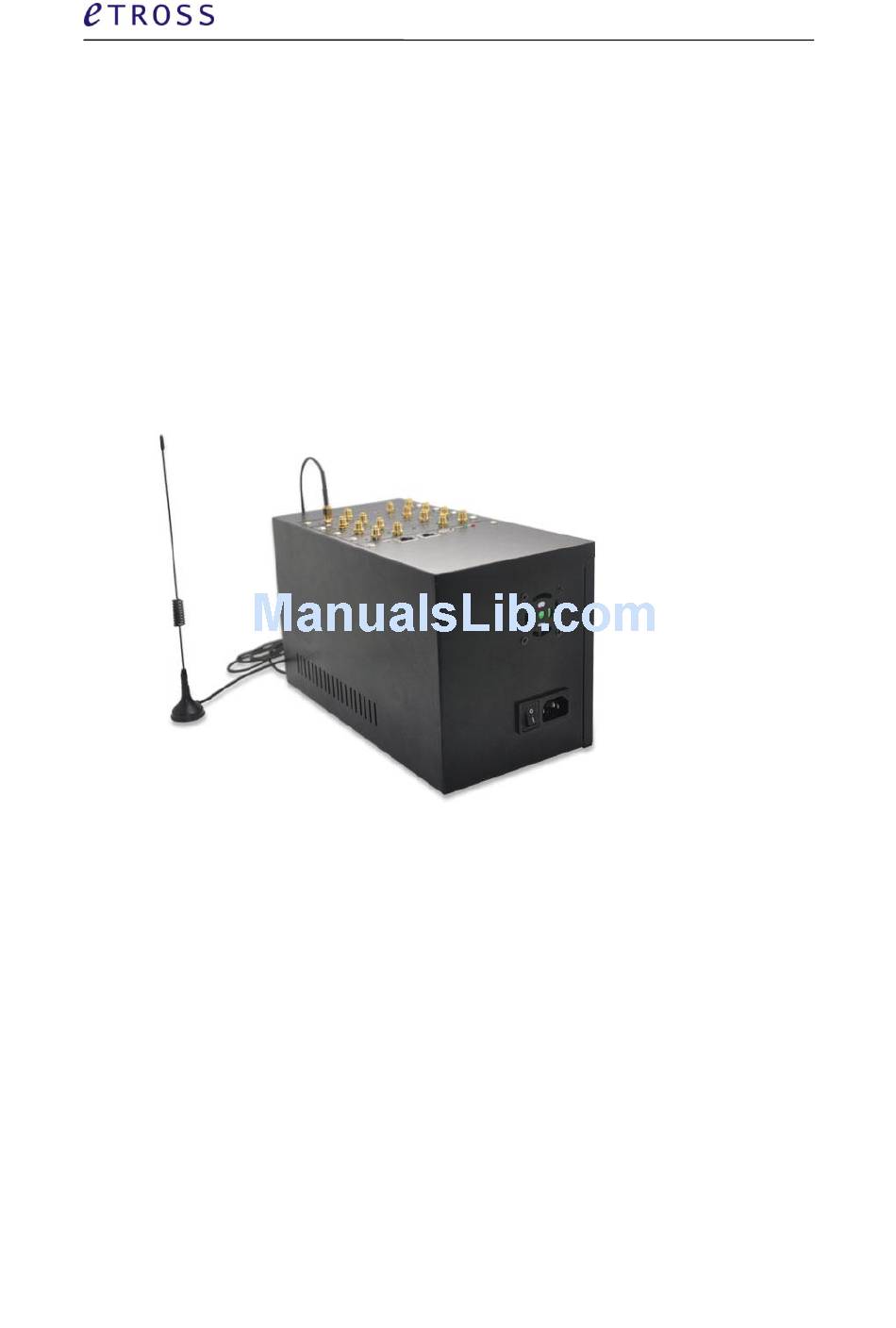

- Page 1 GSM Gateway ETS-16G User’s Manual GSM GATEWAY ETS - 16G USER’S MANUAL SHENZHEN ETROSS TELECOM CO.,LTD version 2013 Shenzhen Etross Telecom Co.,Ltd...
-
Page 2: Table Of Contents
GSM Gateway ETS-16G User’s Manual Table of Contents 1, Introduction..................4 1.1 Overview........................4 1.2 Main Features......................4 1.3 Specifications......................4 1.4 Product appearance....................5 1.5 Call termination diagram..................7 1.6 Packing list......................8 2, Quick installation guide............... .9 2.1 SIM card installation.....................9 2.2 Antenna installation.................. - Page 3 GSM Gateway ETS-16G User’s Manual 4.10 Call routing......................32 4.11 System.......................33 4.11.1 system configuration...................33 4.11.2 Backup &restore..................35 4.11.3 Reset &reboot....................35 4.11.4 Upgrade firmware..................35 4.11.5 Upload IVR....................35 4.11.6 Username & Password................36 4.12 Tools........................36 4.12.1 Ping test.......................36 4.12.2 Tracert test....................
-
Page 4: 1, Introduction
1. Introduction 1.1 Overview GSM VoIP gateway ETS-16G is newly designed IP to GSM gateway supporting maximum 16 ports of GSM Voice interface, it can effectively realize the smooth transition between PLMN(GSM) and VoIP network. Compact cost effective design and system architecture of ETS-16G provides customer satisfaction in high quality , performance and system reliance. -
Page 5: Product Appearance
● Power Consumption: 35W ● Dimensions: 440(W) x 307(D) x 44(H) mm ● Net weight: 4.5kg 1.4 Product appearance Figure 1-4-1 the photos of GSM Gateway ETS-16G Side view photo Top view photo Side view photo Shenzhen Etross Telecom Co.,Ltd... - Page 6 GSM Gateway ETS-16G User’s Manual Figure 1-4-2 Top View of GSM Gateway ETS-16G Table 1-4-1 Description of the top view Sign / item Description SIM card SIM card holder to insert SIM card inside SMA connector to connect with Antenna...
-
Page 7: Call Termination Diagram
GSM Gateway ETS-16G User’s Manual Figure 1-4-3 Side view of GSM Gateway ETS-16G Table 1-4-2 Description of the top view item Description Power switch To switch on and off the device AC Power 110-240 VAC ,50/60Hz Small fan to lower the heat of the device... -
Page 8: Packing List
GSM Gateway ETS-16G User’s Manual 1.6 Packing list Item Photo Quantity (piece) GSM Gateway ETS-16G host Antenna(3m cable antenna) AC power cable Shenzhen Etross Telecom Co.,Ltd... -
Page 9: 2, Quick Installation Guide
33x25x23 (outer packing box) 2. Quick Installation Guide 2.1 SIM card installation Install SIM card into each SIM card slot, attention the direction of SIM card inserting, ETS-16G supports SIM card swapping, but not recommended.( If you want to change SIM card, strongly... -
Page 10: Network Cable Connection
Figure 2-2-1 Antenna installation 2.3 Network cable connection of ETS-16G Be sure to connect the WAN port of ETS-16G to the router / switch of external network. Figure 2-3-1 Network cable connection of ETS-16G 2.4 Power cable connection of ETS-16G Connect power cable to the device, and switch on the device ,then it works. -
Page 11: 3, Network Configuration
Port 1,then switch on the device. Wait 1 minutes later, the device will fully startup. Then you can call the number of SIM1 which you inserted to the ETS-16G, then your phone will prompt you to input the code, input *****01# , you will hear the voice for WAN Port IP address and LAN port IP address accordingly. - Page 12 GSM Gateway ETS-16G User’s Manual Then you input the default gateway IP address “192.168.89.1” in the browser, it will enter into the Web configuration page, and input Login id: admin, password: admin Figure 3-2-2 enter into Web configuration through LAN port...
-
Page 13: 4, Web Configuration
GSM Gateway ETS-16G User’s Manual 1.3, Enter into Web Configuration Page After you obtain the WAN IP address, then you can input WAN IP Address of ETS-16G in browser to enter into Web Configuration page. 4 Web Configuration Before you do the Web configuration, strongly recommend you use the Explorer (Google Chrome, or Microsoft IE9.0 or above). -
Page 14: Status
GSM Gateway ETS-16G User’s Manual “Trunk”,”USSD” ,“Send SMS”, ”Receive SMS”,”Balance Manage”, ”call routing”, ”System”, ”Tools” Columns, and We may upgrade for new features according to special requirements. Figure 4-1-2 ETS administration interface Table 4.1.1 Description of the Web configuration columns... - Page 15 GSM Gateway ETS-16G User’s Manual Table 4-2-1-1 Description of system/Network/Port Information Product name GSM Gateway ETS-16G Software version Indicates the firmware version Hardware version Indicates the hardware version Board Version Indicates the GSM board version Current time If connect with external network, it will show the system time...
-
Page 16: Trunk Information
Status shows the port’s status: idle, talking, dialing,booting,no card,error. Codec Shows the current codec of the SIP voice, generally ETS-16G supports G.711a/u law, G.723.1, G726,G.729AB 4.2.2 Trunk Information Trunk information shows the IP trunk quantity and status. Figure 4-2-2-1 Trunk Information... -
Page 17: Call History
GSM Gateway ETS-16G User’s Manual Figure 4-2-3-1 BCCH Table 4-2-3-1 Description of BCCH BCCH Broadcast control channel Local Area Code The signal gain index, generally use negative, the signal strength is good if the amount > -80 4.3 Call history... -
Page 18: Gsm To Ip History
GSM Gateway ETS-16G User’s Manual Table 4-3-1-1 Description of IP to GSM call history IP to GSM call history Shows Sip VoIP calls to GSM call history (call termination) Port Numbers of GSM/CDMA ports Call Call amounts Duration All the calls accumulated duration... -
Page 19: Cdr
GSM Gateway ETS-16G User’s Manual Duration All the calls accumulated duration Answered The calls amount be answered Call failure caused by the amount of call failure due to the reason of SIP problem Canceled The caller side cancel calls amount... -
Page 20: Clear History
GSM Gateway ETS-16G User’s Manual Table 4-3-3-1 Description of CDR Call details records Port Numbers of the GSM/CDMA Ports Call type Displays the call type from IP to GSM or GSM to IP. Start time The calls start time records... -
Page 21: Port
GSM Gateway ETS-16G User’s Manual Table 4-3-4-1 Description clear record Clear record Clear record including “Clear call history” and “Clear All Cdr” Clear call history Clear call history means all the call records will be deleted Clear all CDR Clear all CDR means all Cdr will be deleted Submit Click this button “submit”... -
Page 22: Batch Port Setting
GSM Gateway ETS-16G User’s Manual BCCH roam To set BCCH roaming if you enable it on Valid Dbm To set the base station dbm value,if the value is more than this value,the base station will not accept Bcch roam, only the value is less... -
Page 23: Trunk
Trunk or IP trunk interface permits us to add remote IP of softs witch, SIP server which will send call traffics to ETS-16G gateway. In one ETS-16G GSM gateway,we can setup 1 or several trunks . User can add remote soft switch or IP server by “account” or by “peer”, to realize the connection with remote soft switch or IP server. -
Page 24: Batch Trunk Setting
GSM Gateway ETS-16G User’s Manual Account setting Trunk type, to set with account according to SIP server or Soft switch Server IP SIP server IP address Sever port Sip server port number, default is 5060 Local port Local port number, default is 5060... - Page 25 GSM Gateway ETS-16G User’s Manual Table 4-5-2 Trunk Batch setting Trunk Batch Setting To Batch set the trunk parameters Trunk enable To open (on) /Close(off) the Trunk Account setting Trunk type, to set with account according to SIP server or Soft switch...
-
Page 26: Ussd
GSM Gateway ETS-16G User’s Manual Save To save the selected parameters 4.6 USSD USSD (Unstructured Supplementary Service Data) is a Global System for Mobile(GSM) communication technology that is used to send text between a mobile phone and an application program in the network. Applications may include prepaid roaming or mobile chatting. -
Page 27: Send Sms
GSM Gateway ETS-16G User’s Manual 4.7 Send SMS Send SMS permit you to send SMS by ETS-16G, See as figure 4-7-1 message Figure 4-7-1 Message Shenzhen Etross Telecom Co.,Ltd... - Page 28 GSM Gateway ETS-16G User’s Manual Table 4-7-1 Description of Send SMS Message Port Select the GSM channel to send SMS SMS message The content of SMS Mobile number The destination mobile phone no. Which the SMS will be sent to...
-
Page 29: Receive Sms
GSM Gateway ETS-16G User’s Manual 4.8 Receive SMS You can send SMS to the GSM Gateway ETS-16G,it will show the SMS content when it receives. Generally receive SMS is to check the SIM balance or sim card recharge purpose in Call termination. -
Page 30: Call Balance Manage
To copy the unit data to all ports in 1 time 4.9.2 Balance auto calculate ETS-16G can realize the balance auto calculate, It can capture the key words which followed by the current real balance from the contents of USSD reply or SMS reply, if you open the USSD switch or SMS switch. - Page 31 GSM Gateway ETS-16G User’s Manual Figure 4-9-2 balance auto calculate Example: Suppose in China, SIM card billing rate is: 0.1dollar/min, so we will transfer 1 dollar equals to 10 minutes ,So We will fill in 10 min/dollar in the blank of the rate .
-
Page 32: Call Routing
GSM Gateway ETS-16G User’s Manual Figure 4-9-4 SMS receive details 4.10 Call routing 4.10.1 Digit map syntax: ETS-16G digit map supports digit (0,1,2,...9) ,”[“, “]”, “*” ,“-”, and “,”. 1. Digit: A digit from “0” to “9” 2. Range []: One or more Digit enclosed between square brackets ("["... -
Page 33: System
GSM Gateway ETS-16G User’s Manual Figure 4-10-1 call routing configuration Figure 4-10-2 Call routing add 4.11 System 4.11.1 System Configuration System configuration describes WAN & LAN configuration, Voice Codec, DTMF parameter setting and time setting 1, Wan configuration Wan configuration can be done by 3 methods, 1) Static IP , 2) DHCP , 3) PPPoE . The user can do Wan configuration according to the real need . - Page 34 GSM Gateway ETS-16G User’s Manual Figure 4-11-1 System configuration Table 4-11-1 Description of system configuration Static Means use static IP, to configure static IP address, static gateway, and Netmask manually DHCP Dynamic Host Configuration Protocol, means to obtain IP address...
-
Page 35: Backup &Restore
Note: After uploading, the device will auto restart to take effect. Figure 4-11-4 File Upload 4.11.5 IVR Voice upload When call in to the SIM card of the ETS-16G, the system will pay IVR if you choose the port Shenzhen Etross Telecom Co.,Ltd... -
Page 36: Username & Password
GSM Gateway ETS-16G User’s Manual type(call in) is IVR , also the user cal upload custom IVR. Figure 4-11-5 IVR voice prompt upload Note: The IVR sound formate is 8kHz , with Wav format, and the size can not exceed 300k bytes 4.11.6 Username &... -
Page 37: Tracert Test
GSM Gateway ETS-16G User’s Manual Figure 4-12-1 Ping Test 4.12.2 Tracert Test Tracert is a computer network diagnostic tool for displaying the route (path) and measuring transit delays of packets across an Internet Protocol (IP) network. Shenzhen Etross Telecom Co.,Ltd... -
Page 38: Port Power Manage
Figure 4-12-3 Port power switch 4.12.4 Change IMEI Due to the carrier’s block, users have to change IMEI frequently, ETS-16G provide user the interface to change IMEI of the module easily. It can also auto generate the IMEI no. Very smart way to use. -
Page 39: Debug
GSM Gateway ETS-16G User’s Manual Figure 4-12-4 Change IMEI 4.12.5 Debug Figure 4-12-5 Debug 5. Glossary: refers to the third generation of mobile telephony that supports high-speed data transfer and is primarily suitable for mobile Internet. ACD- The Average Call Duration (ACD) is calculated by taking the sum of billable seconds (bill second) of answered calls and dividing it by the number of these answered calls. - Page 40 GSM Gateway ETS-16G User’s Manual information is used by a mobile station to get access to the network. CDMA- Code Division Multiple Access CDR- Call data records CODEC- Coder-Decoder DTMF- Dual Tone Multi Frequency DHCP- Dynamic Host Configuration Protocol GSM-...
- Page 41 GSM Gateway ETS-16G User’s Manual WAN- Wide Area Network , Ethernet Interface,10/100M Base-TX, RJ-45 to connect with external network Shenzhen Etross Telecom Co.,Ltd...
