Groen TDH Operator's Manual

Groen TDH Operator's Manual

Steam jacketed kettle
Hide thumbs Also See for TDH:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
� � � �
OPERATOR MANUAL
OPERATOR MANUAL
Part Number 137770 Rev B
Part Number 137770 Rev. E
Models:
TDH and TDHC
Steam Jacketed Kettle
Self-contained
Gas heated
Table Top Mounted
Crank-Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN
THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT USER SMELLS GAS. THIS
INFORMATION SHALL BE OBTAINED BY CONSULTING YOUR LOCAL GAS
SUPPLIER. AS A MINIMUM, TURN OFF THE GAS AND CALL YOUR GAS COMPANY
AND YOUR AUTHORIZED SERVICE AGENT. EVACUATE ALL PERSONNEL FROM
THE AREA.
IMPROPER
INSTALLATION,
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
� � � �
Model TDH
FOR YOUR SAFETY
POST IN A PROMINENT LOCATION
WARNING
ADJUSTMENT,
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
� � � �
Model TDHC
ALTERATION,
SERVICE
�
OM-TDH
DOMESTIC
READ,
OR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Groen TDH

Summary of Contents for Groen TDH

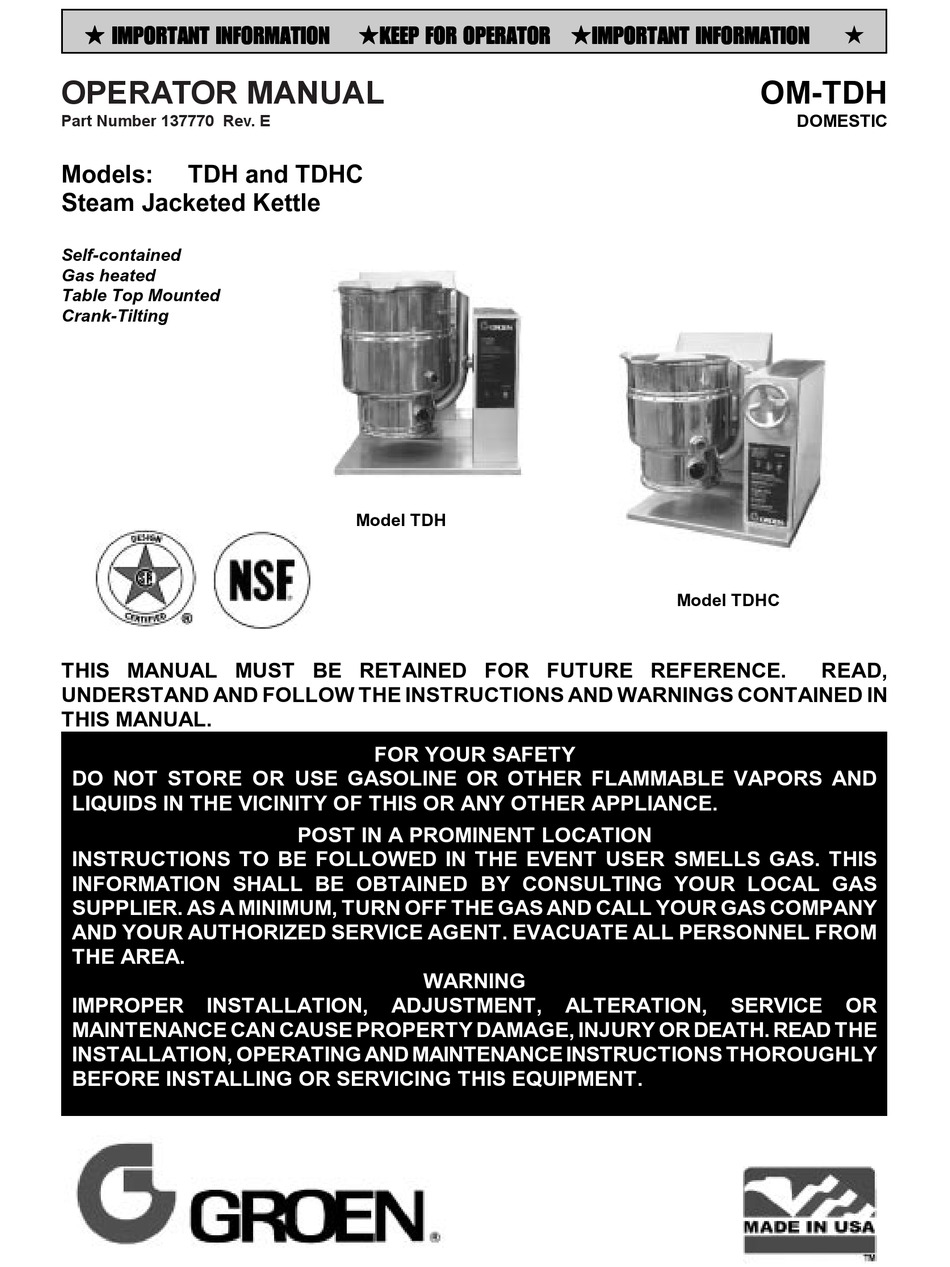

  • Page 1 � OPERATOR MANUAL OPERATOR MANUAL OM-TDH Part Number 137770 Rev B Part Number 137770 Rev. E DOMESTIC Models: TDH and TDHC Steam Jacketed Kettle Self-contained Gas heated Table Top Mounted Crank-Tilting Model TDH Model TDHC THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
