3.1 Front Panel Controls and Display

We've tried to limit the number of control elements in accordance with the motto "as
much as necessary, as little as possible". An important design consideration for the
DIALOG preamplifier was to keep the basic functions easy to use and intuitive – e.g.
anyone is likely to associate the large knob (16) with the volume setting, the keys (11)
and (12) with inputs selection, and the button (18) for turning the DIALOG on or off.
9
11
Individual Elements:
(9) Key :
Depressing this button once switches the unit to MONO. Pressing it again switches
back to STEREO.
(10) Key Menu Up:
Use this button to navigate within the Settings menu. See also section 3.4
(11) Key Input Select – (left):
This button selects the input (-). Also use this key to navigate in the settings menu.
Read details in addition to in Section 3.4.
(12) Key Input Select + (right):
This button selects the input (+). Also use this key to navigate in the settings menu.
Read details in addition to in Section 3.4.
(13) Key Menu Down:
Use this button to navigate within the Settings menu. See also section 3.4
NOTE: There may be modules in the future that use the keys
For details, refer to the description of the modules.
10
14
12
13

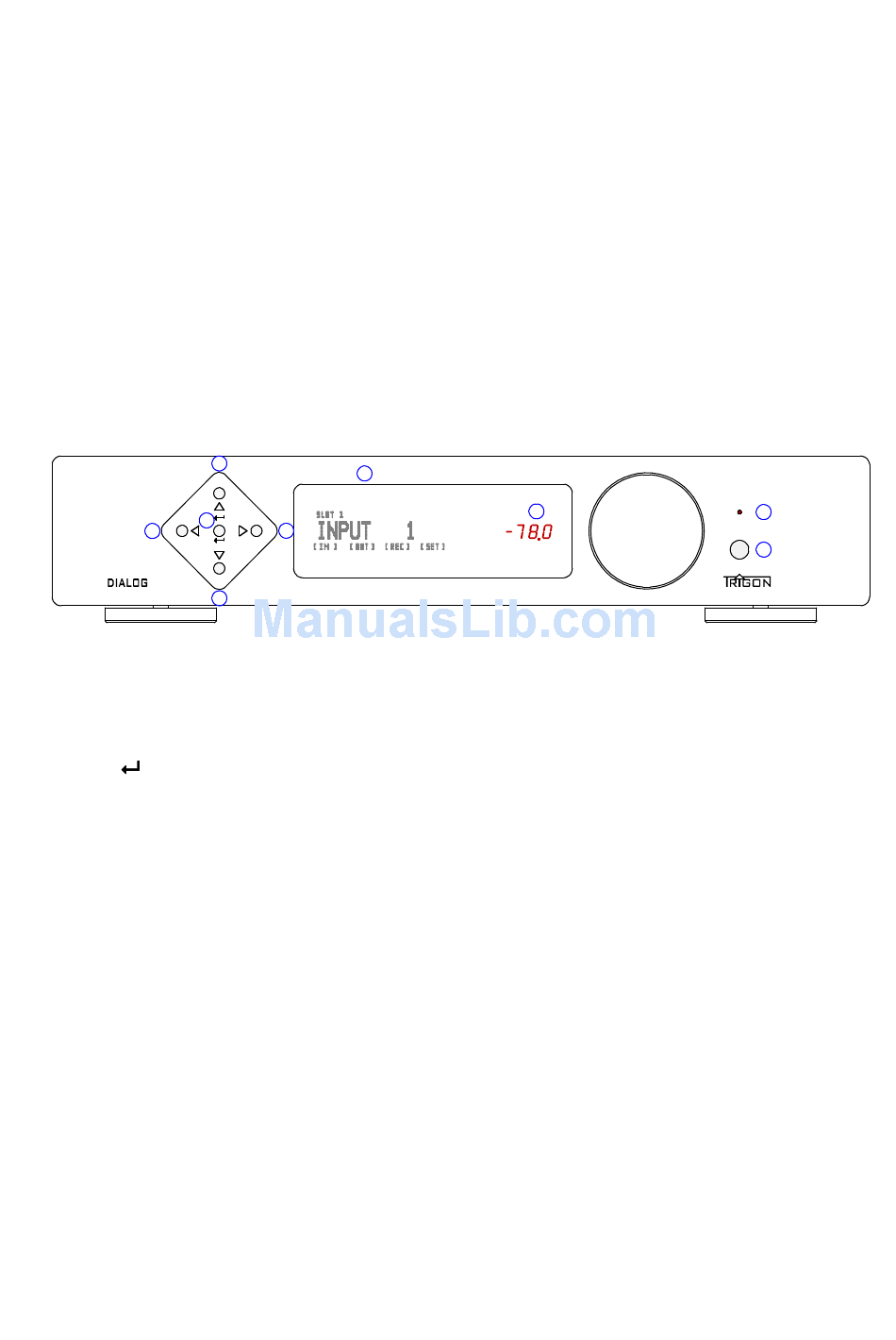

DIALOG
Front View
15
dB
17
18
(9 , 10 , 11 , 12 , 13)
