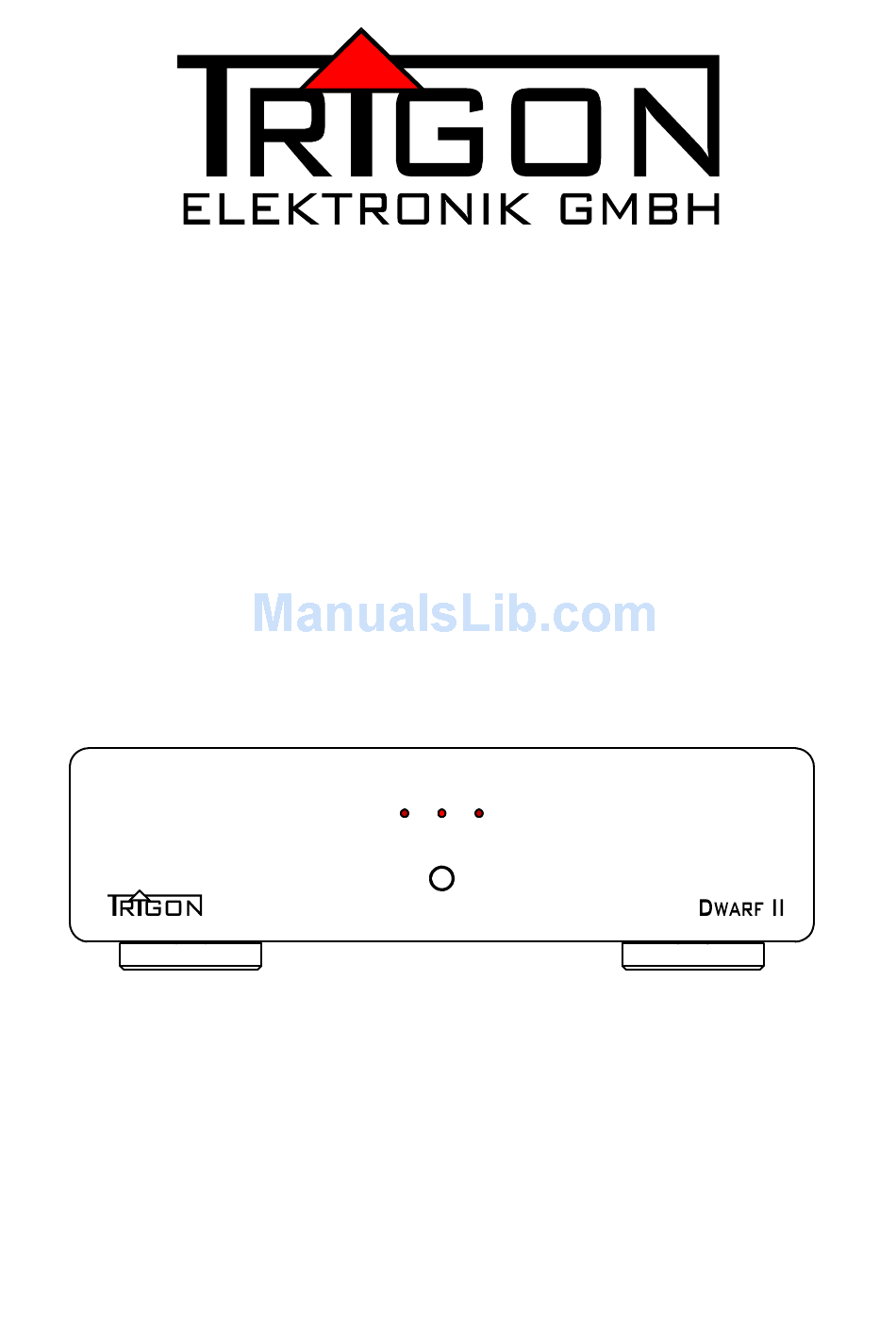

- Page 1 INSTRUCTION MANUAL FOR MONO POWER AMPLIFIER DWARF II DWARF II DWARF II DWARF II Version 1, Juli 2011...
- Page 2 - The David between the Mono Power Amplifier The extreme skinny construction under the use of massive aluminium and structure vanished steel, realizes a timeless and highquality design. Compared with TRIGON Suspension Absorber feet, external disturbances of sensitive music signals will be reduced to a minimum.
- Page 3 (1) switches on again and the procedure starts from the beginning. DWARF II can also be switched off at any position by a longer pressing of key (1). During the pressing DWARF II LED (2) first flashes quickly, as soon as it flashes slower the key can be released and...
- Page 4 GERMANY 5. Input socket: To this socket the Output of the preamplifier is connected. 6. Output socket: To this socket another DWARF II (or any other power amplifier with symmetrical Input) can be connected (e.g. for Bi-amping) 7. Remote Input: To this socket the DC Voltage for the Control Voltage Trigger is connected. The voltage should be between 3 and 12 V.
-
Page 5: Specifications
DWARF II speaker relays and all three LED are flashing. Please power off the completely by DWARF II the mains switch (12) to reset the protection circuit. The can be powered up again after approx. 10 seconds. If all LED are still flashing after the reset, there may be a defect in the output stage and the unit must be sent in for service. - Page 6 Manufacturing and Development: Trigon Elektronik GmbH Trigon Elektronik GmbH Trigon Elektronik GmbH Trigon Elektronik GmbH Crumbacher Str. 60 D-34277 Fuldabrück - Bergshausen Tel. +49 (0) 561 - 20753880 +49 (0) 561 - 20753888 e-mail: trigon@trigon-audio.de web: www.trigon-audio.de...
