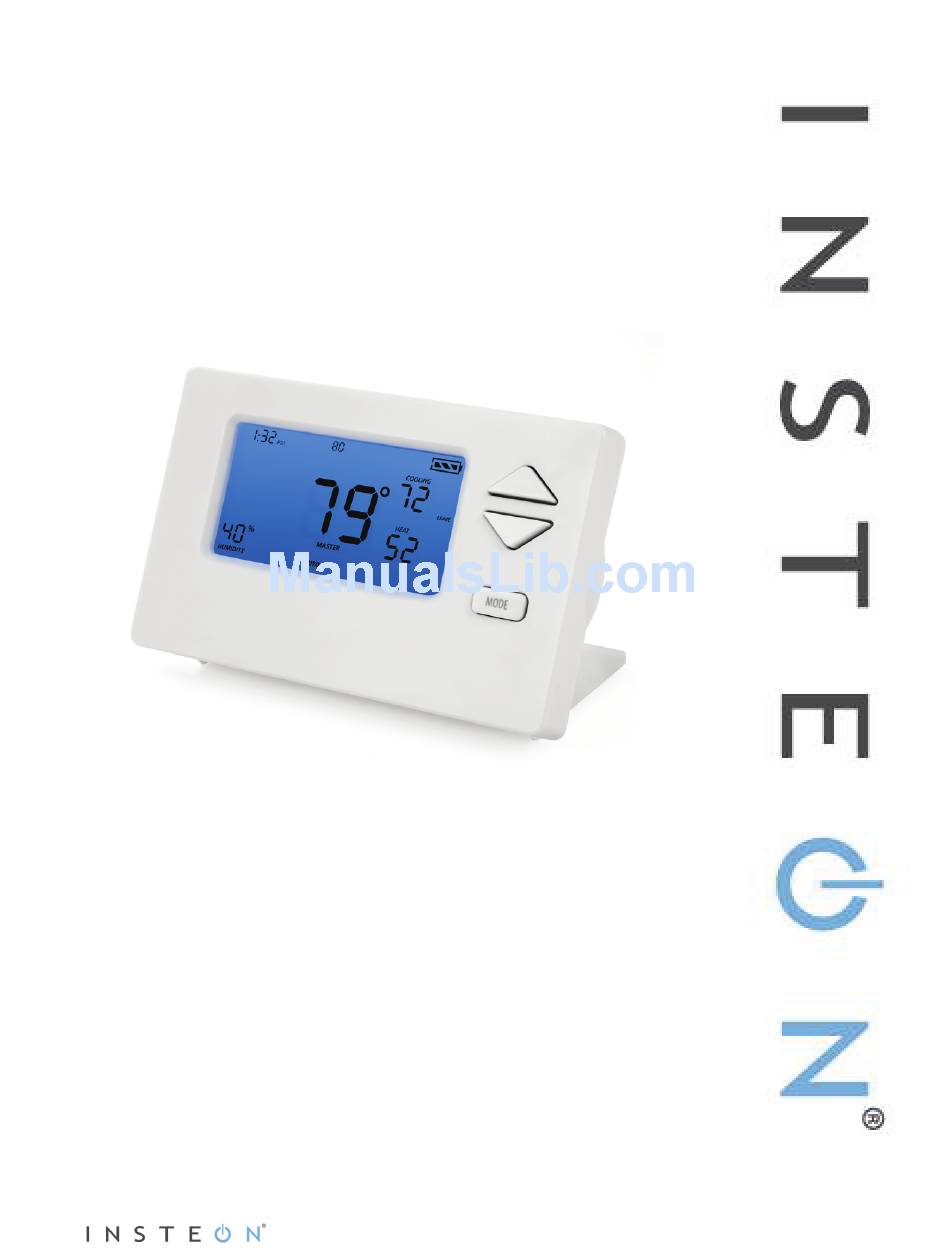

- Page 1 ® INSTEON Wireless Thermostat Owner Manual (#2441ZTH) Page 1 of 24 Rev: 8/30/2012 11:41 AM...
-
Page 2: Table Of Contents
About INSTEON Wireless Thermostat INSTEON Wireless Thermostat – Features and Benefits What’s in the Box? INSTEON Wireless Thermostat Button Overview INSTEON Wireless Thermostat Operation and Programming Mode Button Operation Energy Button Operation Set Button Operation Time/Sensor Button Operations Program Button Operation... -
Page 3: About Insteon Wireless Thermostat
INSTEON Wireless Thermostat is not directly wired to the HVAC (Heating Ventilating and Air Conditioning) system. If you want to control the HVAC system with INSTEON Wireless Thermostat, you need to install at least one INSTEON Thermostat, then link INSTEON Wireless Thermostat as a wireless controller of INSTEON Thermostat. -
Page 4: Insteon Wireless Thermostat Button Overview
5) Fan cycles between Auto and Always On – no indication given for “Auto Fan.” 6) Master makes this device the master temperature controller. Pressing and holding “Master” does not alter any scene or screen settings. It just defines this INSTEON Wireless Thermostat as the master temperature controller. -
Page 5: Insteon Wireless Thermostat Operation And Programming
INSTEON Wireless Thermostat Operation and Programming Mode Button Operation Off Mode: Heat Mode: No setpoints are shown Only Heat setpoint is shown • • Up/Down arrows do not do anything Up/Down arrows change Heat setpoint • • Cool Mode: Auto Mode:... -
Page 6: Energy Button Operation
The Energy button (designated with the leaf) is a quick, efficient energy-saving option. When you press the Energy button, INSTEON Wireless Thermostat will adjust the Heat and Cool setpoints by a specified value. The default value is 4° from the current setting, but can be changed via home control software such as HouseLinc. -
Page 7: Set Button Operation
Note: Onscreen text displaying “Heat” changes to “Heating” and “Cool” changes to “Cooling” to indicate HVAC system is active. Set Button Operation The Set button adds and removes INSTEON Thermostat from INSTEON scenes. It functions like the Set button on other INSTEON devices. Time/Sensor Button Operations The Time/Sensor button allows the user to set the time and clock format. -
Page 8: Program Button Operation
Letting it time out after 4 minutes. Pressing Mode button IMPORTANT! Once you have added INSTEON Wireless Thermostat to a scene in INSTEON Thermostat as a wireless temperature zone, the Program button will no longer function. All program controls will be performed on the INSTEON Thermostat. -
Page 9: Fan And Hold Button Operations
Third press of Program: Fourth press of Program: Cool setpoint Heat setpoint Up/Down arrows cycle through temperature Up/Down arrows cycle through temperature • • Fifth press of Program: Restarts the process to program another Mode/Day. NOTE: The four modes come preprogrammed. The defaults are for all days: Thermostat Heat Cool... -
Page 10: Master Button Operation
INSTEON Wireless Thermostat will beep once. Release. • Note: This is only valid if INSTEON Wireless Thermostat is linked to a INSTEON Thermostat. Before pressing Master button: After pressing and holding Master button: Notice that the left remote sensor is currently Notice that the left remote sensor is no •... -
Page 11: Test Operation
1) Make sure the location that you have selected for INSTEON Wireless Thermostat will not be affected by daily sun movement or be in direct line of sight of a nearby HVAC vent or fan 2) Insert 2 AA batteries into INSTEON Wireless Thermostat... -
Page 12: Insteon Programming
Group FE - Broadcast on any change (notification group for linked software controllers) • NOTE: An INSTEON Wireless Thermostat can also be added to a scene as a controller to Groups 1 - 4. When it is added as a controller of an INSTEON Thermostat, the setpoints between INSTEON Wireless Thermostat and INSTEON Thermostat will always be matched. -
Page 13: Remove Insteon Wireless Thermostat As A Controller
If you want to remove INSTEON Thermostat from a scene as a controller, follow instructions below. Whenever possible, use software for managing scene memberships. Note: If you choose to remove INSTEON Thermostat from use, it is important that you remove scene memberships from all responders. Follow the instructions below for each responder of which INSTEON Thermostat is a member. - Page 14 INSTEON Wireless Thermostat Set LED will blink green INSTEON Wireless Thermostat will beep 2) Press and hold INSTEON Wireless Thermostat Set button again to put it in scene mode INSTEON Wireless Thermostat Set LED will blink red INSTEON Wireless Thermostat will beep...
-
Page 15: User Setup Mode Overview
Program and Time/Sensor buttons will no longer perform their initial functions. All program and time controls will be performed on the INSTEON Thermostat. To access the Program and Time/Sensor buttons again, you must remove INSTEON Wireless Thermostat from INSTEON Thermostat. - Page 16 Press and hold Program button for 3 seconds or more to enter User Setup Mode: Page 16 of 24 Rev: 8/30/2012 11:41 AM...
-
Page 17: User Setup Mode
User Setup Mode 1) Press and hold Program button to access the following options: Press Mode to step between menu items (sub-mode number will appear on top of the screen). • Sub-mode 01: Display LED on-time select (default is 10 seconds) Sub-mode 02: Humidity low setpoint (default is 30%) Sub-mode 03: Humidity high setpoint (default is 99%) Sub-mode 04: Temperature format select (default is Fahrenheit) -
Page 18: Temperature And Humidity Calibration Modes
3) When finished, press and hold Program button to exit Temperature and Humidity Calibration Modes Note: Use a calibrated temperature or humidity source when adjusting INSTEON Thermostat. 1) Press and hold the Program button 2) Tap Time/Sensor to enter Temperature Calibration Mode... -
Page 19: Advanced 2-Stage Heating Or Cooling Systems
Advanced 2-Stage Heating or Cooling Systems INSTEON Wireless Thermostat does not have the ability to operate first or second stages of Heat or Cool directly but can instruct INSTEON Thermostat to operate the HVAC. First and second stage of Heat or... -
Page 20: Specifications
Device goes into factory reset for ~10 seconds and will perform a series of self tests Device will return to normal operations and display screen returns to normal 5) If INSTEON Wireless Thermostat displays a two-digit error code instead of the ambient temperature, remove batteries, wait a few seconds, then reinstall... - Page 21 2732-532 AUS/NZ 813922010800 Warranty 2 years, limited INSTEON INSTEON powerline mesh repeater INSTEON RF mesh repeater INSTEON controller INSTEON responder Maximum links/scenes Dual-color, blinks red or green during setup LED brightness Local control Commands supported as controller Commands supported as responder...
-
Page 22: Troubleshooting
If error code instead of the ambient problem persists, call the temperature. INSTEON Support Line. I replaced my INSTEON Wireless SmartLinc and the INSTEON app Update the INSTEON I.D. on Thermostat with a new one, but communicate vian INSTEON... -
Page 23: Certification And Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller liability with respect to this product. For repair or replacement during the warranty period, call the INSTEON Support Line at 800-762-7845 with the Model # and Revision # of the device to receive an... - Page 24 You may also have other legal rights that may vary from state to state. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.insteon.com...
