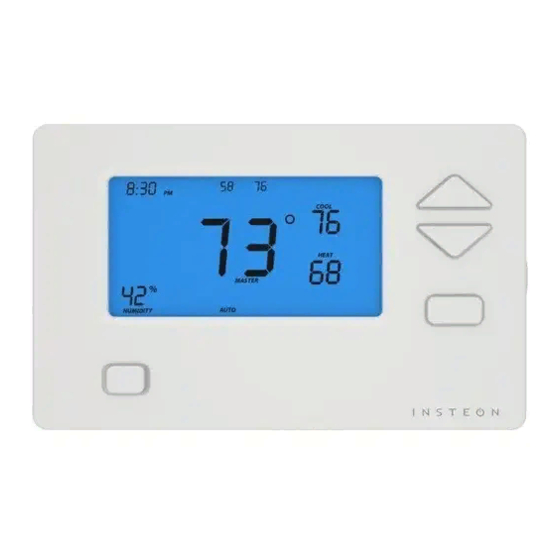

INSTEON 2441TH Owner's Manual
Hide thumbs
Also See for 2441TH:
- Owner's manual (28 pages) ,
- Quick start manual (12 pages) ,
- Getting started (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for INSTEON 2441TH
Summary of Contents for INSTEON 2441TH
- Page 1 ® Insteon Thermostat Owner’s Manual (#2441TH, 2732-422, 2732-522, 2732-242, 2732-442, 2732-542) Page 1 of 32 Rev: 10/13/2015 9:13 AM...
-
Page 2: Table Of Contents
Wire Connections Test Operation Adding an Insteon Wireless Thermostat Insteon Programming Add Insteon Thermostat as an Insteon Controller Removing Insteon Thermostat as an Insteon Controller Add Insteon Thermostat as an Insteon Responder Remove Insteon Thermostat as an Insteon Responder User Setup Mode Overview... -
Page 3: About Insteon Thermostat
2-stage heating plus 2-stage cooling capabilities. Expand the system by creating extra temperature zones in your home. Simply add one or more Insteon Wireless Thermostats as accessories to your system. Additionally, a Waterproof Temperature Sensor can be added and extended up to 100 feet for remote temperature sensing. -
Page 4: Insteon Thermostat Button Overview
8) Program allows you to set up the various preprogrammed modes (Wake, Leave, Return and Sleep). It also allows you to setup various features and calibrate the temperature and humidity. 9) Set is for adding and removing Insteon Thermostat to and from Insteon scenes. It functions like the Set button on other Insteon devices. -
Page 5: Insteon Thermostat Operation And Programming
Insteon Thermostat Operation and Programming Mode Button Operation Off Mode: Heat Mode: No setpoints are shown. Only Heat setpoint is shown. • • Up/Down arrows do not do anything. Up/Down arrows change Heat setpoint. • • Cool Mode: Auto Mode: Only Cool setpoint is shown. -
Page 6: Energy Button Operation
The Energy button is designed to be a quick, efficient energy-saving option. When you press the Energy (leaf) button, Insteon Thermostat will adjust the Heat and Cool setpoints by a specified value. The default value is 4° from the current setting. The default value can be changed via software such as HouseLinc. -
Page 7: Set Button Operation
Cooling = green, Heating = red. At time of activation either Heating or Cooling text will blink for 3 seconds then remain steady during the active cycle. Set Button Operation The Set button adds and removes Insteon Thermostat from Insteon scenes. It functions like the Set button on other Insteon devices. Time/Sensor Button Operations The Time/Sensor button allows the user to set the current day and time. -
Page 8: Program Button Operation
Third press of Time/Sensor: Day settings Up/Down arrows cycle through each day of the week as shown. • Fourth press of Time/Sensor: Clock Format setting (12- or 24-Hour clock) Entire “time” blinks. • Up/Down arrows cycle between 12- and 24-hour clock format. •... - Page 9 Third press of Program: Start Time Up/Down arrows cycle through time in 15-minute increments. Note: when pressing the Down arrow, if • you come within 15 minutes of another preprogrammed mode time, you will not be able to increase the time any further. Pressing and holding Up/Down arrows cycles faster.
-
Page 10: Fan And Hold Button Operations
• Insteon Thermostat beeps once. Release. • Note: This is only valid if at least one Insteon Thermostat Zone Thermostat is linked to Insteon Thermostat. Before pressing Master button: After pressing and holding Master button: Notice that the left remote sensor is currently Notice that the left remote sensor is no •... -
Page 11: Installation
Your existing thermostat is not millivolt controlled. Your existing thermostat has 5 or more wires connected. Insteon Thermostat is designed to operate on a minimum 5-wire, 24V HVAC unit. If you have only 4 wires you can purchase the “Add-A-Wire” adapter item #304AAW from www.smarthome.com. -
Page 12: Wire Connections
14) Apply to round grommet placing indentation. Wire Connections – Conventional Systems If the terminal designations on your old thermostat do not match those on Insteon Thermostat, refer to the chart below or the wiring diagram that follows: Wire color from furnace/AC unit... - Page 13 Most residential heat pumps operate in the “O” mode where the thermostat will energize the valve during cooling. By default, the Insteon Thermostat is set to “O” mode. Commercial systems and many models made by Rheem and Rudd operate in the “B” mode where the reversing value is energized during heating.
- Page 14 4) Press the UP or DOWN button to change between “O” and “B” modes 5) Press PROGRAM to exit. Page 14 of 32 Rev: 10/13/2015 9:13 AM...
-
Page 15: Test Operation
2) Press and hold Insteon Thermostat Set button. Insteon Thermostat will beep, then double-beep. Insteon Wireless Thermostat will double-beep. 3) Test the scene by pressing and holding the Master button on the Insteon Thermostat. Page 15 of 32 Rev: 10/13/2015 9:13 AM... - Page 16 A visual inspection of each display will reveal the Master status of each Insteon Thermostat or • Zone Thermostat. Note: Only the Insteon Thermostat is directly connected to the HVAC system via wires. If you plan on operating multiple Insteon Wireless Thermostats you must have at least one Insteon Thermostat to control the HVAC.
-
Page 17: Insteon Programming
Group EF - Broadcast on any change (notification group for linked software controllers) • NOTE: An Insteon Wireless Thermostat can also be added to a scene as a controller to Groups 1 - 4. When it is added as a controller of a Insteon Thermostat, the setpoints between Insteon Wireless Thermostat and Insteon Thermostat will always be matched. - Page 18 LCD display after 2 seconds. LCD display when using Up or Down arrows to select from the 4 controller groups. Page 18 of 32 Rev: 10/13/2015 9:13 AM...
-
Page 19: Removing Insteon Thermostat As An Insteon Controller
If you want to remove Insteon Thermostat from a scene as a controller, follow instructions below. Whenever possible, use software for managing scene memberships. Note: If you choose to remove Insteon Thermostat from use, it is important that you remove scene memberships from all responders. Follow the instructions below for each responder of which Insteon Thermostat is a member. -
Page 20: Add Insteon Thermostat As An Insteon Responder
If you want to remove Insteon Thermostat from a scene, follow instructions below. Whenever possible, use software for managing scene memberships. Note: If you choose to remove Insteon Thermostat from use, it is important that you remove scene memberships from all controllers. Otherwise, controllers will retry commands repetitively, creating network delays. - Page 21 1) Press and hold controller’s scene button until controller beeps. Controller’s LED will blink. 2) Press and hold controller’s scene button until controller beeps again Controller’s LED will continue blinking. 3) Simultaneously press and hold Insteon Thermostat’s Set button and Down arrow. Insteon Thermostat Set LED will blink green and unit will beep.
-
Page 22: User Setup Mode Overview
User Setup Mode Overview Press and hold Program button for 3 seconds or more to enter the User Setup Mode. User Setup Mode 1) Press and hold Program button to access the following options: Press Mode to step between menu items (sub-mode number will appear on top of the screen). •... - Page 23 Sub-mode 03: Humidity high setpoint (default is 90%) Sub-mode 04: Temperature format select (default is Fahrenheit) Sub-mode 05: Beep on button press (default is Off) Sub-mode 06: Status LED (default is Off) Sub-mode 07: Button lock (default is Off) Sub-mode 08: Programming lock (default is Off) Sub-mode 09: Activation delay (default is 5 minutes) Press the Up or Down arrow to change a setting.
-
Page 24: Temperature And Humidity Calibration Mode
Range = 2-20 minutes Temperature and Humidity Calibration Mode Note: Use a calibrated temperature or humidity source when adjusting Insteon Thermostat 1) Press and hold the Program button, tap Time/Sensor to enter Temperature Calibration Mode. 2) Tap Mode to step between temperature calibration and humidity calibration. -
Page 25: Advanced 2-Stage Heating Or Cooling Systems
Heat mode setpoint is 80°, ambient is 72° = first and second stage engaged Cool mode setpoint is 78°, ambient is 84° = first and second stage engaged Insteon Thermostat has been active in Heat or Cool for longer than 10 minutes and did not reach •... -
Page 26: Specifications
3) Double-tap Set button. 4) Press and hold Set button again for about 10 seconds. Insteon Thermostat will emit a long beep and its display will blink all segments. 5) When blinking/buzzing stops, release Set button and wait 10 seconds. - Page 27 Software configurable RF range Up to 150-Feet (50m) open air Phase bridge detect beacon No, RF only device Insteon device category 0x05 (all frequencies) 2441TH (915 MHz) 0x0B 2732-422 (869 MHz) 0x0F Insteon device subcategory 2732-522 (921 MHz) 0x10 2732-242 (915 MHz)
-
Page 28: Troubleshooting
User replaceable fuse Hardwired remote control Retains all settings without power Yes, saved in non-volatile EEPROM 1.25 Watts (52.10mA) – LED Backlight on, transmitting Insteon Energy Consumption commands to other devices < 0.7 Watts (26.92mA) – LED backlight off, not receiving or... - Page 29 Insteon temperature. Support Line. I replaced my Insteon SmartLinc and the Insteon app Update the Insteon I.D. on both Thermostat with a new one, but communicate via Insteon I.D.s. SmartLinc and the Insteon app now SmartLinc and Insteon app They are still trying to with your new thermostat’s I.D.
-
Page 30: Declaration Of Conformity
Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of Insteon products. Consumers are required to comply with this notice for all electronic products bearing the following symbol: Environmental Information for Customers in the European Union European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. - Page 31 Português [Portuguese]: Este equipamento está em conformidade com os requisitos essenciais e outras provisões relevantes da Directiva 1999/5/EC. Italiano [Italian]: Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE. Norsk [Norwegian]: Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-direktiv 1999/5/EF.
-
Page 32: Certification And Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the Insteon Support Line at 800-762-7845 with the Model # and Revision # of the device to receive an...
