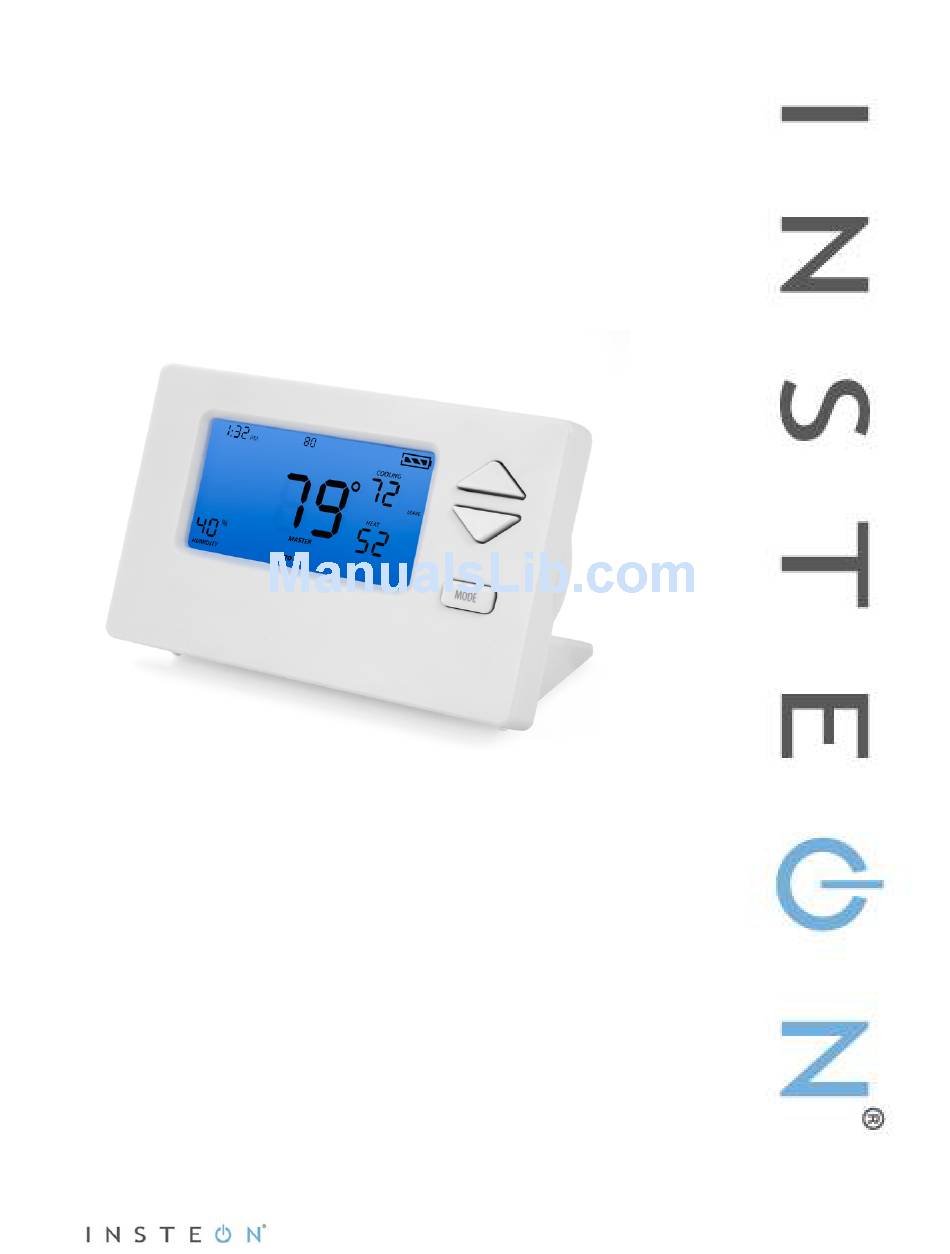

- Page 1 ® INSTEON Wireless Thermostat Owner’s Manual 2732-232, 2441ZTH (US) 2732-432 (EU) 2732-532 (AUS/NZ) Page 1 of 27 Rev: 4/19/2013 10:47 AM...
-
Page 2: Table Of Contents
Waterproof Temperature Sensor (2433A3) Power Supply Installation Preparation Test Operation Adding INSTEON Wireless Thermostat to an INSTEON Thermostat INSTEON Programming Add INSTEON Wireless Thermostat as a Controller Remove INSTEON Wireless Thermostat as a Controller User Setup Mode Overview User Setup Mode... -
Page 3: What's In The Box
What’s in the Box? • INSTEON Wireless Thermostat • Quick Start Guide • Tabletop stand (removable for wall-mounting) Page 3 of 27 Rev: 4/19/2013 10:47 AM... -
Page 4: Insteon Wireless Thermostat Button Overview
5) Fan cycles between Auto and Always On 6) Master makes this device the master temperature controller. Pressing and holding “Master” does not alter any scene or screen settings. It just defines this INSTEON Wireless Thermostat as the master temperature controller. -
Page 5: Insteon Wireless Thermostat Operation And Programming
INSTEON Wireless Thermostat Operation and Programming Mode Button Operation Off Mode: Heat Mode: • • No setpoints are shown Only Heat setpoint is shown • • Up/Down arrows do not do anything Up/Down arrows change Heat setpoint • Heat setpoint range: 35°-95°F (2°C-36°C) -
Page 6: Energy Button Operation
The Energy button (designated with the leaf) is a quick, efficient energy-saving option. When you press the Energy button, INSTEON Wireless Thermostat will adjust the Heat and Cool setpoints by a specified value. The default value is 4° from the current setting, but can be changed via home control software such as HouseLinc. -
Page 7: Set Button Operation
Note: Onscreen text displaying “Heat” changes to “Heating” and “Cool” changes to “Cooling” to indicate HVAC system is active. Set Button Operation The Set button adds and removes INSTEON Wireless Thermostat from INSTEON scenes. It functions like the Set button on other INSTEON devices. Time/Sensor Button Operations •... -
Page 8: Program Button Operation
Letting it time out after 4 minutes. Pressing Mode button IMPORTANT! Once you have added INSTEON Wireless Thermostat to a scene in INSTEON Thermostat as a wireless temperature zone, the Program button will no longer function. All program controls will be performed on the INSTEON Thermostat. -
Page 9: Fan And Hold Button Operations
Note: To exit program setup mode, press Mode button once. Fan and Hold Button Operations Fan button operations • The Fan button is only functional when INSTEON Wireless Thermostat is linked to an INSTEON Thermostat • The Fan button cycles between Auto and Always On •... -
Page 10: Master Button Operation
To perform this, press and hold Master button for 3 seconds. INSTEON Wireless Thermostat will beep once. • Release. Note: This is only valid if INSTEON Wireless Thermostat is linked to a INSTEON Thermostat. Before pressing Master button: After pressing and holding Master button: •... -
Page 11: Optional Accessories
(batteries can remain installed) and will stay on and awake all the time. If external power is lost, INSTEON Wireless Thermostat will switch back to battery power. Install power supply as follows: 1) Open the back of INSTEON Wireless Thermostat 2) Locate the wiring block for the power supply. -
Page 12: Test Operation
Battery segment should show full with fresh batteries Time will become active and show 12:00PM (default) 4) Snap INSTEON Wireless Thermostat into the supplied tabletop stand or mount safely to a wall Test Operation INSTEON Wireless Thermostat does not directly control the HVAC system. Instead, INSTEON Wireless Thermostat communicates via RF to INSTEON Thermostat which is directly in contact to the wiring controlling the HVAC system. -
Page 13: Insteon Programming
Group EF - Broadcast on any change (notification group for linked software controllers) NOTE: An INSTEON Wireless Thermostat can also be added to a scene as a controller to Groups 1 - 4. When it is added as a controller of an INSTEON Thermostat, the setpoints between INSTEON Wireless Thermostat and INSTEON Thermostat will always be matched. -
Page 14: Remove Insteon Wireless Thermostat As A Controller
Whenever possible, use software for managing scene memberships. Note: If you choose to remove INSTEON Wireless Thermostat from use, it is important that you remove scene memberships from all responders. Follow the instructions below for each responder of which INSTEON Wireless Thermostat is a member. -
Page 15: User Setup Mode Overview
INSTEON Thermostat. To access the Program and Time/Sensor buttons again, you must remove INSTEON Wireless Thermostat from INSTEON Thermostat. Program and Time/Sensor buttons can be used to wake INSTEON Wireless Thermostat up from its Page 15 of 27... -
Page 16: User Setup Mode
INSTEON Thermostat. Press and hold Program button for 3 seconds or more to enter User Setup Mode: User Setup Mode 1) Press and hold Program button to access the following options: Page 16 of 27... - Page 17 • Press Mode to step between menu items (sub-mode number will appear on top of the screen). Sub-mode 01: Display LED on-time select (default is 10 seconds) Sub-mode 02: Humidity low setpoint (default is 30%) Sub-mode 03: Humidity high setpoint (default is 90%) Sub-mode 04: Temperature format select (default is Fahrenheit) Sub-mode 05: Internal or External temperature sensor (default is Internal) Sub-mode 06: Beep on button press (default is off)
-
Page 18: Temperature And Humidity Calibration Modes
3) When finished, press and hold Program button to exit Temperature and Humidity Calibration Modes Note: Use a calibrated temperature or humidity source when adjusting INSTEON Wireless Thermostat. 1) Press and hold the Program button 2) Tap Time/Sensor to enter Temperature Calibration Mode... - Page 19 temperature calibration modes (E) Internal Temperature Calibration • I appears on right side of screen • The top left number (77 in example) is the current reading according to the temperature sensor • The top right number (14 in example) is the current offset (represents 1.4) •...
-
Page 20: Advanced 2-Stage Heating Or Cooling Systems
Advanced 2-Stage Heating or Cooling Systems INSTEON Wireless Thermostat does not have the ability to operate first or second stages of Heat or Cool directly but can instruct INSTEON Thermostat to operate the HVAC. First and second stage of Heat or Cool engages under the following conditions when INSTEON Thermostat is connected to the HVAC: •... -
Page 21: Specifications
Device goes into factory reset for ~10 seconds and will perform a series of self tests Device will return to normal operations and display screen returns to normal 5) If INSTEON Wireless Thermostat displays a two-digit error code instead of the ambient temperature, remove batteries, wait a few seconds, then reinstall... - Page 22 Commands supported as controller Commands supported as responder Software configurable RF range Up to 150-Feet (50m) open air Phase bridge detect beacon No, RF-only device INSTEON device category 0x05 (all frequencies) 2441ZTH (915 MHz) 0x0A INSTEON device subcategory 2732-432 (869 MHz) 0x11...
-
Page 23: Troubleshooting
The INSTEON for Hub app Update the INSTEON I.D. on Thermostat with a new one, but communicates via INSTEON both the Hub and the INSTEON now the INSTEON for Hub app I.D.s. They are still trying to for Hub app with your new doesn’t recognize it. - Page 24 Thermostat, the temperature and right. humidity readings are different. When the power is removed, the The Wireless Thermostat does If linked to an INSTEON Wired clock settings are lost not have a back-up clock that Thermostat, the Wireless keeps the time...
- Page 25 Wired Thermostat. at the Wired Thermostat (manually, following the Auto- schedule, or via another INSTEON controller) are being sent to the Wireless for display. Computer software or other When using only batteries, the Add an AC adapter and the unit controller can’t retrieve the...
-
Page 26: Certification And Warranty
1) Electromagnetic Compatibility Directive 2004/108/EC 2) Hazardous Substance Directive 2005/95/EC Technical data and copies of the original Declaration of Conformity are available and can be obtained from INSTEON; 16542 Millikan Ave, Irvine, CA, USA. User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of INSTEON products. -
Page 27: Limited Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the INSTEON Support Line at 866-243-8022 with the Model # and Revision # of the device to receive an...
