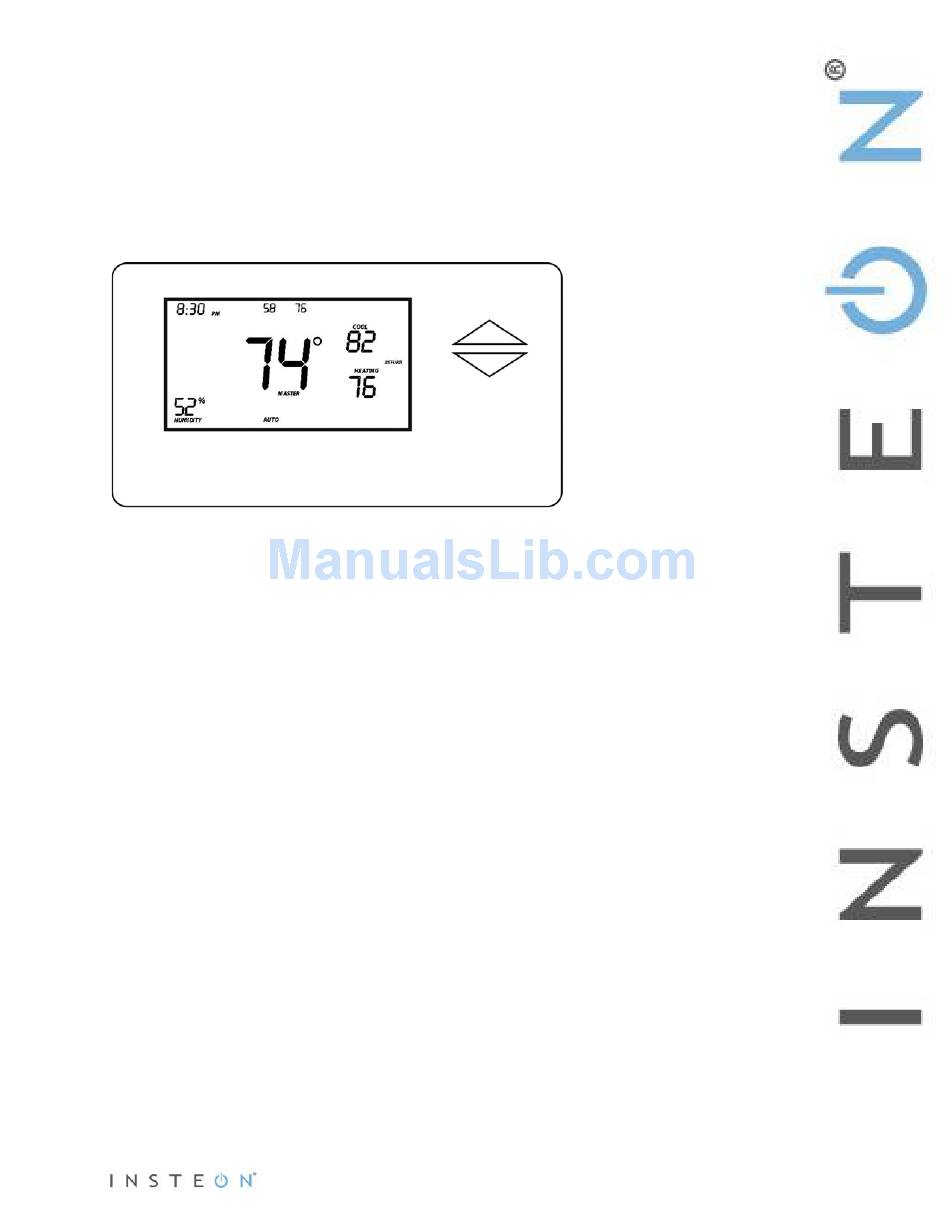

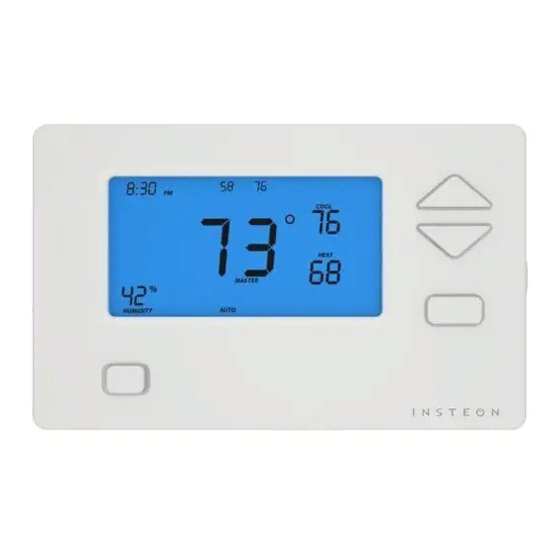

  • Page 1 ® INSTEON Thermostat Owner’s Manual (#2441TH, 2732-422, 2732-522) Page 1 of 28 Rev: 1/21/2014 8:35 AM...

  • Page 2: Table Of Contents

    Wire Connections Test Operation Adding an INSTEON Wireless Thermostat INSTEON Programming Add INSTEON Thermostat as an INSTEON Controller Removing INSTEON Thermostat as an INSTEON Controller Add INSTEON Thermostat as an INSTEON Responder Remove INSTEON Thermostat as an INSTEON Responder User Setup Mode Overview...

  • Page 3: About Insteon Thermostat

    2-stage heating plus 2-stage cooling capabilities. Expand the system by creating extra temperature zones in your home. Simply add one or more INSTEON Wireless Thermostats as accessories to your system. Additionally, a Waterproof Temperature Sensor can be added and extended up to 100 feet for remote temperature sensing.

  • Page 4: Insteon Thermostat Button Overview

    8) Program allows you to set up the various preprogrammed modes (Wake, Leave, Return and Sleep). It also allows you to setup various features and calibrate the temperature and humidity. 9) Set is for adding and removing INSTEON Thermostat to and from INSTEON scenes. It functions like the Set button on other INSTEON devices.

  • Page 5: Insteon Thermostat Operation And Programming

    INSTEON Thermostat Operation and Programming Mode Button Operation Off Mode: Heat Mode: • • No setpoints are shown. Only Heat setpoint is shown. • • Up/Down arrows do not do anything. Up/Down arrows change Heat setpoint. Cool Mode: Auto Mode: •...

  • Page 6: Energy Button Operation

    The Energy button is designed to be a quick, efficient energy-saving option. When you press the Energy (leaf) button, INSTEON Thermostat will adjust the Heat and Cool setpoints by a specified value. The default value is 4° from the current setting. The default value can be changed via software such as HouseLinc.

  • Page 7: Set Button Operation

    Cooling = green, Heating = red. At time of activation either Heating or Cooling text will blink for 3 seconds then remain steady during the active cycle. Set Button Operation The Set button adds and removes INSTEON Thermostat from INSTEON scenes. It functions like the Set button on other INSTEON devices. Time/Sensor Button Operations •...

  • Page 8: Program Button Operation

    Third press of Time/Sensor: Day settings • Up/Down arrows cycle through each day of the week as shown. Fourth press of Time/Sensor: Clock Format setting (12- or 24-Hour clock) • Entire “time” blinks. • Up/Down arrows cycle between 12- and 24-hour clock format. Note: AM/PM is not displayed when in 24-Hour format.
  • Page 9 Third press of Program: Start Time • Up/Down arrows cycle through time in 15-minute increments. Note: when pressing the Down arrow, if you come within 15 minutes of another preprogrammed mode time, you will not be able to increase the time any further. •...

  • Page 10: Fan And Hold Button Operations

    To perform this, press and hold Master button for 3 seconds. INSTEON Thermostat beeps once. • Release. Note: This is only valid if at least one INSTEON Thermostat Zone Thermostat is linked to INSTEON Thermostat. Before pressing Master button: After pressing and holding Master button: •...

  • Page 11: Installation

    Your existing thermostat is not millivolt controlled. Your existing thermostat has 5 or more wires connected. INSTEON Thermostat is designed to operate on a minimum 5-wire, 24V HVAC unit. If you have only 4 wires you can purchase the “Add-A-Wire” adapter item #304AAW from www.smarthome.com.

  • Page 12: Wire Connections

    14) Apply to round grommet placing indentation. Wire Connections If the terminal designations on your old thermostat do not match those on INSTEON Thermostat, refer to the chart below or the wiring diagram that follows: Wire color from furnace/AC unit...

  • Page 13: Test Operation

    A visual inspection of each display will reveal the Master status of each INSTEON Thermostat or Zone Thermostat. Note: Only the INSTEON Thermostat is directly connected to the HVAC system via wires. If you plan on operating multiple INSTEON Wireless Thermostats you must have at least one INSTEON Thermostat to control the HVAC.

  • Page 14: Insteon Programming

    Group EF - Broadcast on any change (notification group for linked software controllers) NOTE: An INSTEON Wireless Thermostat can also be added to a scene as a controller to Groups 1 - 4. When it is added as a controller of a INSTEON Thermostat, the setpoints between INSTEON Wireless Thermostat and INSTEON Thermostat will always be matched.
  • Page 15 LCD display after 2 seconds. LCD display when using Up or Down arrows to select from the 4 controller groups. Page 15 of 28 Rev: 1/21/2014 8:35 AM...

  • Page 16: Removing Insteon Thermostat As An Insteon Controller

    If you want to remove INSTEON Thermostat from a scene as a controller, follow instructions below. Whenever possible, use software for managing scene memberships. Note: If you choose to remove INSTEON Thermostat from use, it is important that you remove scene memberships from all responders. Follow the instructions below for each responder of which INSTEON Thermostat is a member.

  • Page 17: Add Insteon Thermostat As An Insteon Responder

    If you want to remove INSTEON Thermostat from a scene, follow instructions below. Whenever possible, use software for managing scene memberships. Note: If you choose to remove INSTEON Thermostat from use, it is important that you remove scene memberships from all controllers. Otherwise, controllers will retry commands repetitively, creating network delays.
  • Page 18 1) Press and hold controller’s scene button until controller beeps. Controller’s LED will blink. 2) Press and hold controller’s scene button until controller beeps again Controller’s LED will continue blinking. 3) Simultaneously press and hold INSTEON Thermostat’s Set button and Down arrow. INSTEON Thermostat Set LED will blink green and unit will beep.

  • Page 19: User Setup Mode Overview

    User Setup Mode Overview Press and hold Program button for 3 seconds or more to enter the User Setup Mode. User Setup Mode 1) Press and hold Program button to access the following options: • Press Mode to step between menu items (sub-mode number will appear on top of the screen). Sub-mode 01: Display LED on-time select (default is 10 seconds) Sub-mode 02: Humidity low setpoint (default is 30%) Page 19 of 28...
  • Page 20 Sub-mode 03: Humidity high setpoint (default is 90%) Sub-mode 04: Temperature format select (default is Fahrenheit) Sub-mode 05: Beep on button press (default is Off) Sub-mode 06: Status LED (default is Off) Sub-mode 07: Button lock (default is Off) Sub-mode 08: Programming lock (default is Off) Sub-mode 09: Activation delay (default is 5 minutes) Press the Up or Down arrow to change a setting.

  • Page 21: Temperature And Humidity Calibration Mode

    Range = 2-20 minutes Temperature and Humidity Calibration Mode Note: Use a calibrated temperature or humidity source when adjusting INSTEON Thermostat 1) Press and hold the Program button, tap Time/Sensor to enter Temperature Calibration Mode. 2) Tap Mode to step between temperature calibration and humidity calibration.

  • Page 22: Advanced 2-Stage Heating Or Cooling Systems

    If you want to reset INSTEON Thermostat to its factory default settings, follow instructions below. Note: If you choose to reset INSTEON Thermostat to its factory default settings, it is important that you remove scene memberships from all controllers. Otherwise, controllers will retry commands repetitively, creating network delays.

  • Page 23: Specifications

    3) Double-tap Set button. 4) Press and hold Set button again for about 10 seconds. INSTEON Thermostat will emit a long beep and its display will blink all segments. 5) When blinking/buzzing stops, release Set button and wait 10 seconds.
  • Page 24 Software configurable RF range Up to 150-Feet (50m) open air Phase bridge detect beacon No, RF only device INSTEON device category 0x05 (all frequencies) 2441TH (915 MHz) 0x0B INSTEON device subcategory 2732-422 (869 MHz) 0x0F 2732-522 (921 MHz) 0x10 X10 address...

  • Page 25: Troubleshooting

    INSTEON Support Line. I replaced my INSTEON SmartLinc and the INSTEON app Update the INSTEON I.D. on Thermostat with a new one, but communicate via INSTEON I.D.s. both SmartLinc and the...

  • Page 26: Declaration Of Conformity

    DECLARATION OF CONFORMITY Hereby, INSTEON declares that this device is in compliance with the essential requirements and other relevant provisions of the following Directives: 1) Electromagnetic Compatibility Directive 2004/108/EC 2) Hazardous Substance Directive 2005/95/EC Technical data and copies of the original Declaration of Conformity are available and can be obtained from INSTEON;...
  • Page 27 Português [Portuguese]: Este equipamento está em conformidade com os requisitos essenciais e outras provisões relevantes da Directiva 1999/5/EC. Italiano [Italian]: Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE. Norsk [Norwegian]: Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-direktiv 1999/5/EF.

  • Page 28: Certification And Warranty

    The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the INSTEON Support Line at 800-762-7845 with the Model # and Revision # of the device to receive an...
