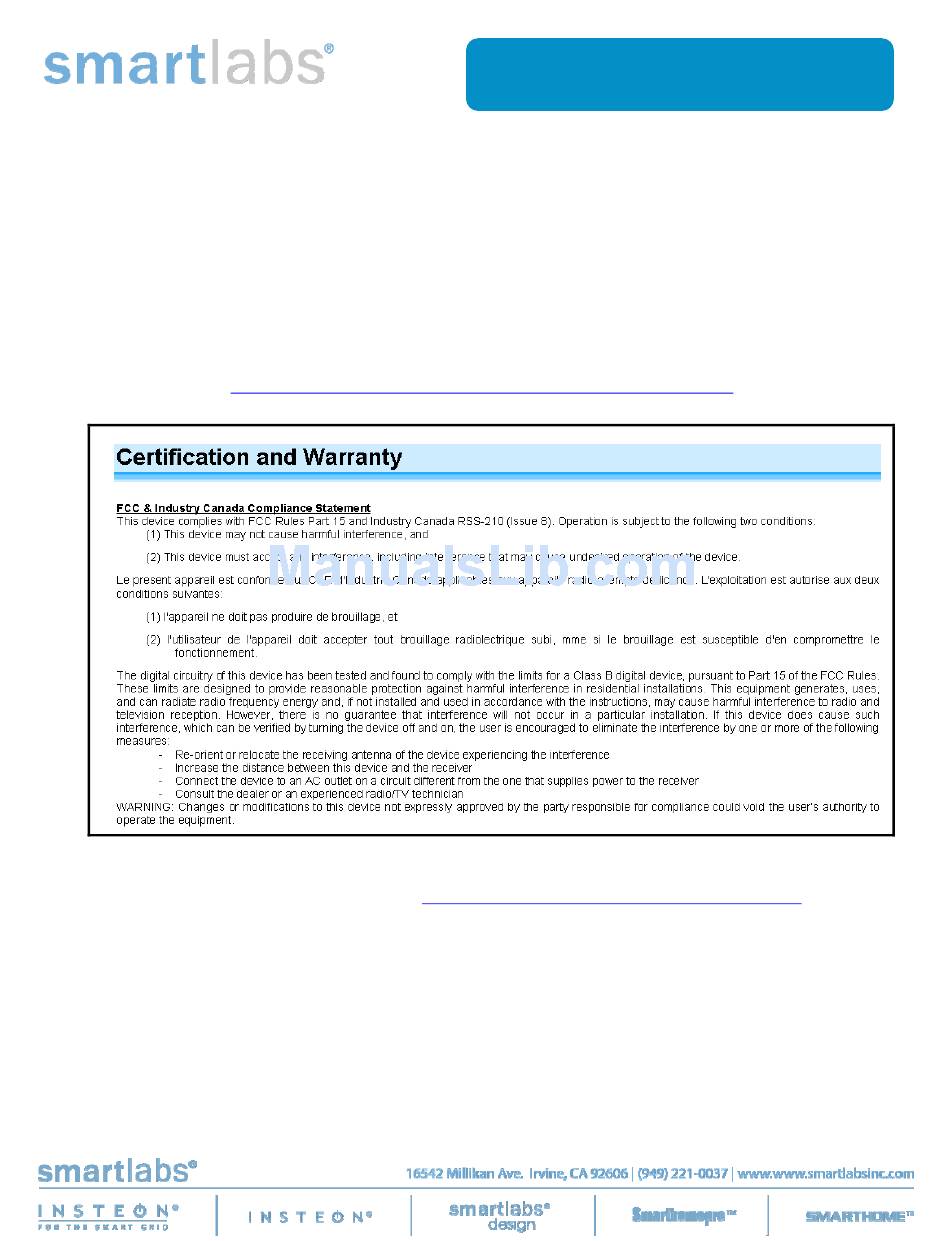

On-Line Owner's Manual Containing
Cautionary FCC & IC Statements
September 30, 2011
Wall-Mounted Wireless Thermostat
Models: 2441T and 2441TH
FCC ID: SBP2441T
IC: 5202A-2441T
The owner's manual below may be accessed freely via the Internet
with any web browser and supports the PDF format.
http://www.smarthome.com/2441TH.html
Complies with Section 5 of FCC document
784748 D01 Labeling Part 15 18 Guidelines v07
where
cautionary statements in the user manual may be provided over the Internet.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for INSTEON TempLinc 2441T
Summary of Contents for INSTEON TempLinc 2441T
- Page 1 On-Line Owner’s Manual Containing Cautionary FCC & IC Statements September 30, 2011 Wall-Mounted Wireless Thermostat Models: 2441T and 2441TH FCC ID: SBP2441T IC: 5202A-2441T The owner’s manual below may be accessed freely via the Internet with any web browser and supports the PDF format. http://www.smarthome.com/2441TH.html Complies with Section 5 of FCC document 784748 D01 Labeling Part 15 18 Guidelines v07...
- Page 2 TempLinc Owners Manual ® INSTEON Thermostat (#2441T) Page 1 of 22 Rev: 9/30/2011 1:26 PM...
-
Page 3: Table Of Contents
Thermostat Master Button Operation Installation Tools Needed Preparation Wire Connections Test Operation Adding a Wireless Thermostat INSTEON Programming Linking as a Responder Linking as a Controller Unlinking Factory Setup Modes Factory Programming Mode Humidity Calibration Mode Factory Reset to Default Certification and Warranty FCC &... -
Page 4: About Templinc
About TempLinc TempLinc is a 7 day programmable INSTEON-compatible thermostat. It comes in two variants, with and without a humidity sensor. The humidity sensor model also includes 2 stage heating and cooling, while the non-humidity sensor device is a single stage device. -
Page 5: Thermostat Button Overview
Sleep). Set button is for INSTEON linking and unlinking as well as accepting the current programming step and going to the next one in sequence. For INSTEON functions, it works like Set does for other INSTEON devices. Page 4 of 22... -
Page 6: Thermostat Operation And Programming
Thermostat Operation and Programming Thermostat Mode Button Operation Off Mode: Auto Mode: No set points are shown Both cool and heat set points are shown Up / Down do not do anything Up / Down move both together with a set Cool Mode: Heat Mode: ... -
Page 7: Thermostat Energy Button Operation
Thermostat Energy Button Operation The Energy button is designed to be a very quick to use option that saves energy (and money). When you press it, it will back off the set point by a specified value. The default value is 5 degrees from the current setting. -
Page 8: Thermostat Set Button Operation
Set button is for INSTEON linking and unlinking as well as accepting the current programming step and going to the next one in sequence. For INSTEON functions, it works like Set does for other INSTEON devices. Operating details can be found in other sections. -
Page 9: Thermostat Program Button Operation
press of Time / Sensor: press of Time / Sensor: Selects which sensor to show in position 1 Selects which sensor to show in position 2 Up / Down cycles through 1-9 with none then Up / Down cycles through 1-16 with none again then again press of Time / Sensor:... - Page 10 press of Program: - Selects day setting - Up / Down cycles between 7 days, weekdays, weekend days, each day - As you select a different day option, the current pre-programmed settings for that day (or group of days) are displayed press of Program: - Selects Start / Time - Up / Down cycles through time in 15 minute increments...
-
Page 11: Thermostat Fan And Hold Button Operations
Thermostat Fan and Hold Button Operations Fan button operations The Fan button cycles between Auto and Always On. On the display, it simply cycles the text Fan Always to show or not. Hold button operations The Hold button over-rides a pre-programmed mode until either: The mode / temp is changed manually by user ... -
Page 12: Thermostat Master Button Operation
Thermostat Master Button Operation press: - Makes the local TempLinc the master Before pressing Master button: After pressing Master button: Notice that remote sensor 2 is currently the Notice that remote sensor 2 is no longer the Master Master ... -
Page 13: Installation
Installation CAUTIONS AND WARNINGS Read and understand these instructions before installing and retain them for future reference. IMPORTANT! If you are not knowledgeable about, and comfortable with, HVAC circuitry, you should have a qualified HVAC professional install TempLinc for you. Tools Needed Flat blade screwdriver Wire cutter / stripper... -
Page 14: Test Operation
[Connection diagram] Test Operation 1) Turn the power on to the Heating/Air Conditioning system 2) Press the MODE button repeatedly until the HEAT icon appears in the display. Press the UP or DOWN buttons until the set temperature is 10 degrees above room temperature. The furnace should turn on. -
Page 15: Insteon Programming
Display while in Linking to On or Off Linking as a Controller TempLinc can be setup to control other INSTEON devices or trigger software events when there is a change. The following TempLinc changes can be setup as a controller: ... - Page 16 Group 2 - Heating mode change (scene control) Group 3 - Fan mode change (scene control)* Group FE - broadcast on any change (info only)* Can only be configured via software. NOTE: The Wireless TempLinc can also be linked as a controller to Group 1 and 2 but it will operate if there’s a TempLinc or not.
-
Page 17: Unlinking
Seen if press Down arrow Can alternate between these 2 by pressing Up and Down Unlinking 1) Press & hold Thermostat Set button until it beeps Thermostat Set LED blinks GREEN Thermostat will (Beep) as a responder 2) Press & hold Thermostat Set button to put it in unlinking Thermostat Set LED blinks Thermostat will (Beep) LCD display indicates the group that you are unlinking from... -
Page 18: Factory Setup Modes
Upon entering Unlinking mode Defaults to Cooling mode Seen if press Down arrow Can alternate between these last 2 screens by pressing Up and Down Factory Setup Modes To enter a Factory Setup Mode: 1) Press Mode, Up, and Down buttons simultaneously for 3 seconds to enter all of the Factory Setup Modes below 2) All LCD segments will turn on Page 17 of 22... -
Page 19: Factory Programming Mode
Factory Programming Mode 1) Once in Factory Setup Mode, press the Program button and select from one of the following (Press Mode button to step through the options): Sub-mode 1: Beep on button press (Default is Off) Sub-mode 2: Programming lock (Default is Off) ... - Page 20 Sub- mode 4: Termperature format select (C or F) a. Up arrow = C b. Down arrow = F (default setting) Page 19 of 22 Rev: 9/30/2011 1:26 PM...
-
Page 21: Humidity Calibration Mode
The displayed number needs to be multiplied by 0.1 to get the actual offset Factory Reset to Default Factory Reset Changes INSTEON is reset (all links removed) Day / time is changed to 12:00, Monday Programming times and temperatures are reset to their default Factory Reset Does Not Change ... - Page 22 Xx = unsuccessful 4) Device will return to normal operations Option 2 1) Press & hold Thermostat Set button until it beeps Thermostat Set LED blinks GREEN Thermostat will (Beep) as a responder 2) Press & hold Thermostat Set button again until it beeps Thermostat Set LED blinks Thermostat will (Beep) LCD display indicates the group that you are unlinking from...
-
Page 23: Certification And Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the INSTEON Gold Support Line at 800-762-7845 with the Model # and Revision # of the device to receive...
